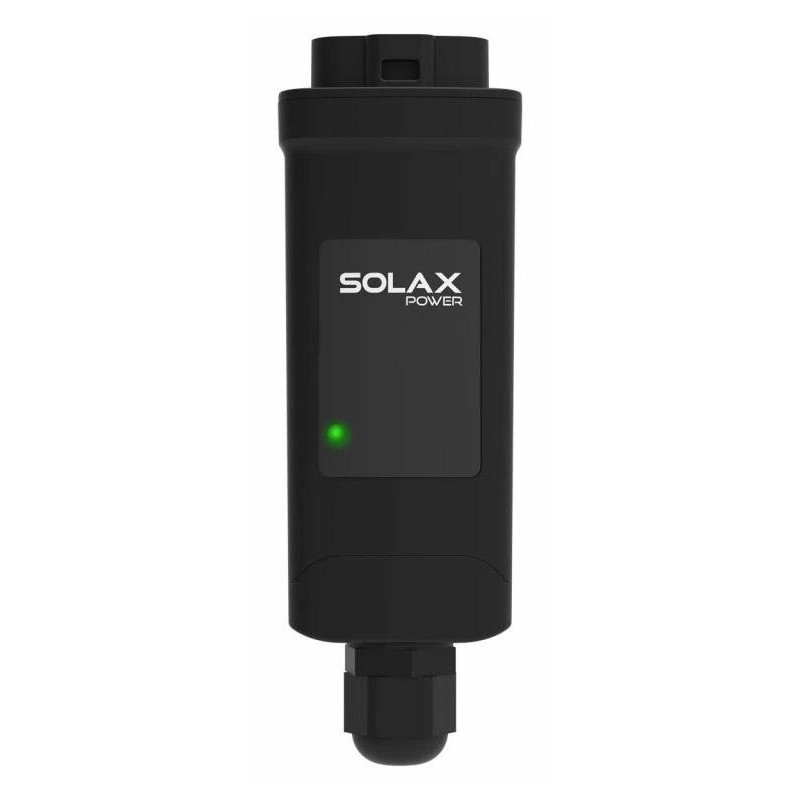

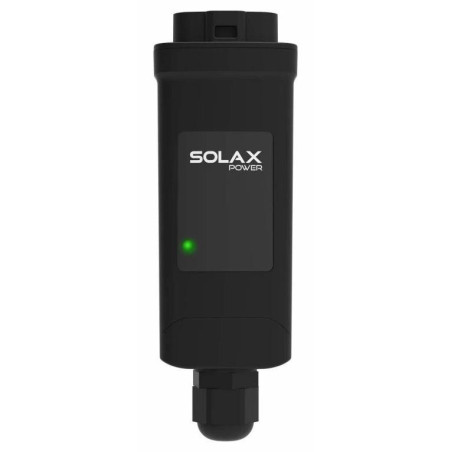

SOLAX Pocket Wi-Fi + LAN module / datalogger for Solax inverters

The SOLAX Pocket Wi-Fi + LAN communication module enables remote monitoring and management of inverters using a Wi-Fi or Ethernet connection.

This professional module offers easy "Plug & Play" installation and ensures stable data transmission between SOLAX inverters and the cloud monitoring platform. Thanks to the IP65 protection , the device is protected against dust and splash water, allowing it to be used in various environments without any problems.

The module supports Modbus TCP and IEEE2030.5 protocols for integration with various monitoring systems. The offline data storage function ensures that no data is lost even if the connection is temporarily lost.

Real-time monitoring
With 10-second live monitoring, you always have an up-to-date overview of the performance of your photovoltaic system. Thanks to the SOLAX cloud platform, you can monitor performance, energy production and other parameters from anywhere, anytime.

Reliability in all conditions
Thanks to a wide operating temperature range from -35 °C to +60 °C and a robust design, the module is able to operate reliably in various climatic conditions.

BASIC SPECIFICATIONS

Model: Pocket Wi-Fi + LAN

Power supply: DC 5V/200mA

Wireless module: Wi-Fi 2.4 GHz

Ethernet: 10/100 Mbps

Antenna gain: 3 dBi

Data transfer interval: 5 minutes
ANDData monitoring interval: 10 seconds

Dimensions: 112 × 45.7 × 28.5 mm

Weight: 80 ±10g

Protection level: IP65

Operating temperature range: -35 to +60 °C

Compatibility: X1-Mini G3.1, X1-Boost G3.3, X3-MIC G2, X3-Pro G2, X3-Mega G2, X3-Forth, X1 Hybrid G4.1 (Version D), X3-Hybrid G4.2 (Version D), X1-Fit G4, X3-Fit G4, X3 Hybrid G4.3, X3 Ultra
