Eastron SDM72DR-MID, Multifunction electricity meter, current power, total consumption, pulse output, three-phase, 100A

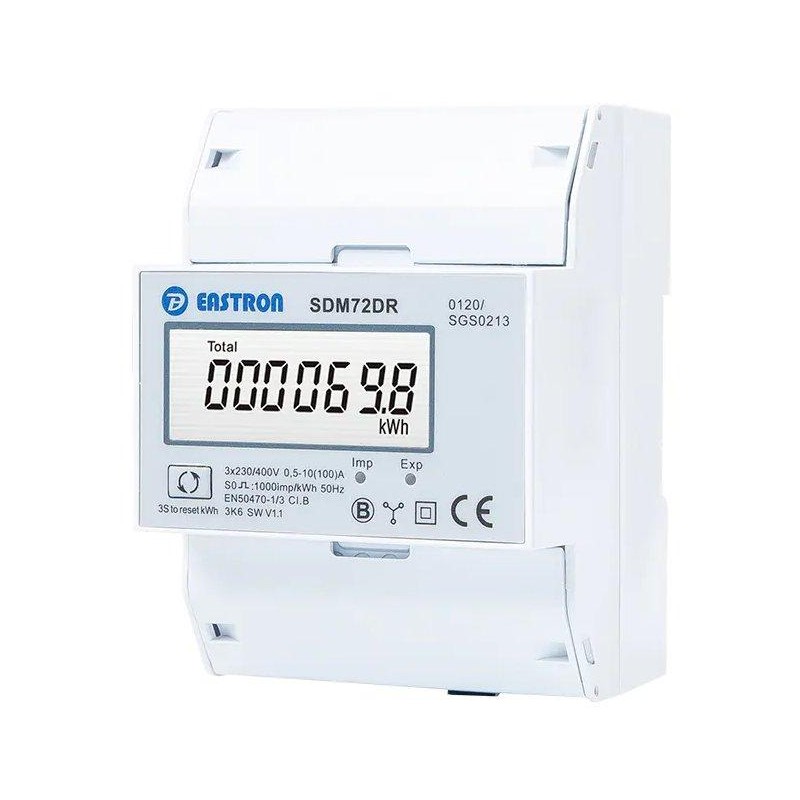

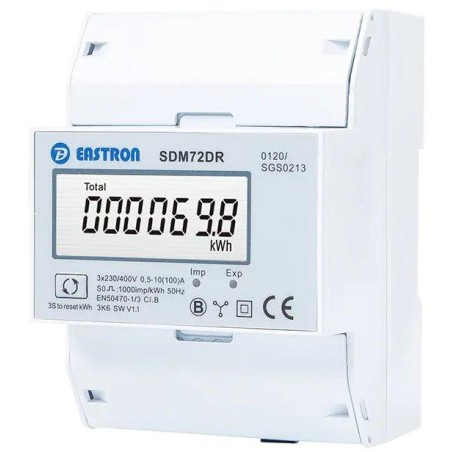

Eastron SDM72DR-MID

The basic three-phase electricity meter measures and displays total active energy ( kWh ) and power ( Watts ). This model has a resettable energy counter that allows you to restart the consumption calculation at any time. DIN rail mounting housing, IP51 protection and direct connection up to 100 A.

The electricity meter meets strict European standards and requirements of the Measuring Instruments Directive 2014/32/EU (MID), which guarantees its accuracy and reliability.

Key features:

•

• Support for 2p3w and 3p4w installations

• Compact design with DIN rail mounting

• Backlit LCD display for easy reading of values

• High measurement accuracy according to IEC 62053-21 and EN50470-1/3 standards

• Three-phase direct source 100 A

• MID B+D certificate

• Accuracy class 1 (active energy)

• Fixed pulse output

• Resettable energy counter


Displayed parameters:

•

• Active energy (kWh)

• Power (W)


BASIC SPECIFICATIONS

Rated voltage: 3× 230/400 V AC

Operating voltage range: 80–120% of rated voltage (U _n )

Max. current (I _max ): 100 A

Mounting: DIN rail

Dimensions: 100 × 72 × 66 mm

Protection: IP51
