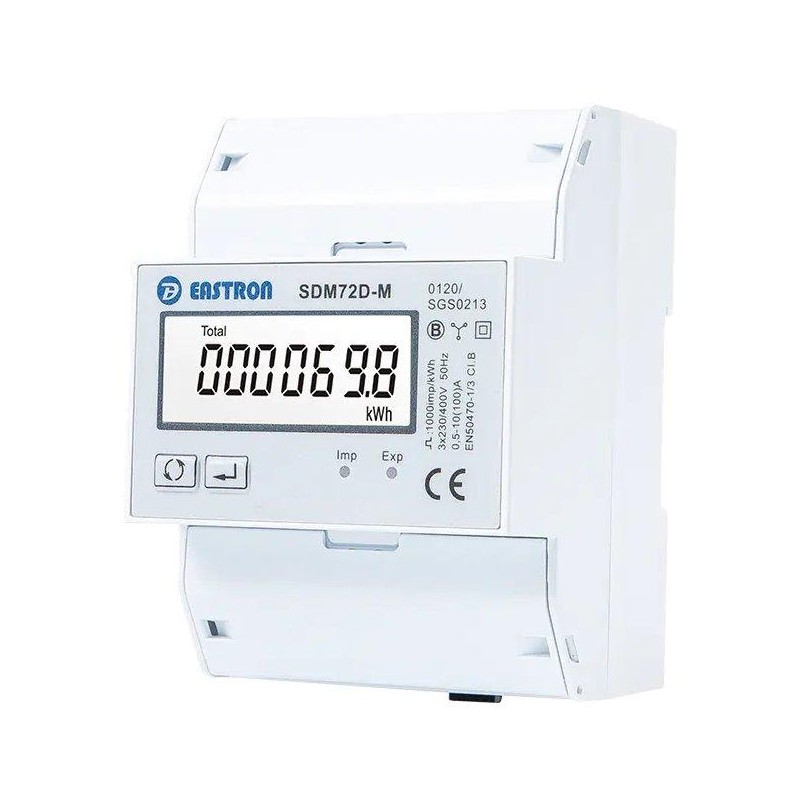

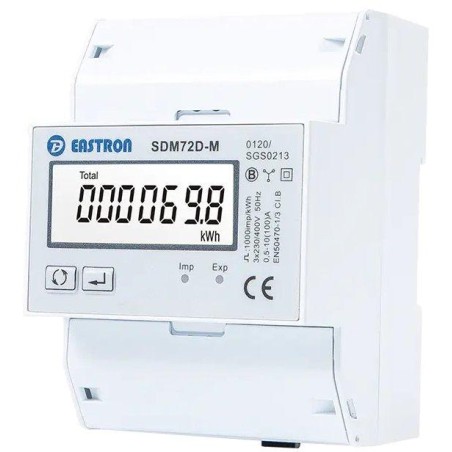

Eastron SDM72D-MID, multifunction electricity meter, three-phase, 100A

Eastron SDM72D-MID

Basic three-phase electricity meter measures and displays total active energy ( kWh ) and power ( Watts ). DIN rail mounting housing, IP51 protection and direct connection up to 100 A.

The electricity meter meets strict European standards and requirements of the Measuring Instruments Directive 2014/32/EU (MID), which guarantees its accuracy and reliability.

Key features:

•

• Support for 2p3w and 3p4w installations

• Compact design with DIN rail mounting

• Backlit LCD display for easy reading of values

• High measurement accuracy according to IEC 62053-21 and EN50470-1/3 standards

• Three-phase direct source 100 A

• MID B+D certificate

• Accuracy class 1 (active energy)

• Fixed pulse output


BASIC SPECIFICATIONS

Rated voltage: 3× 230/400 V AC

Operating voltage range: 80–120% of rated voltage (U _n )

Max. current (I _max ): 100 A

Mounting: DIN rail

Dimensions: 100 × 72 × 66 mm

Protection: IP51

Detailed parameters and specifications can be found in the attached manual (en).
