Eastron SDM230-MODBUS-MID-V2 electricity meter, single-phase

Eastron SDM230Modbus

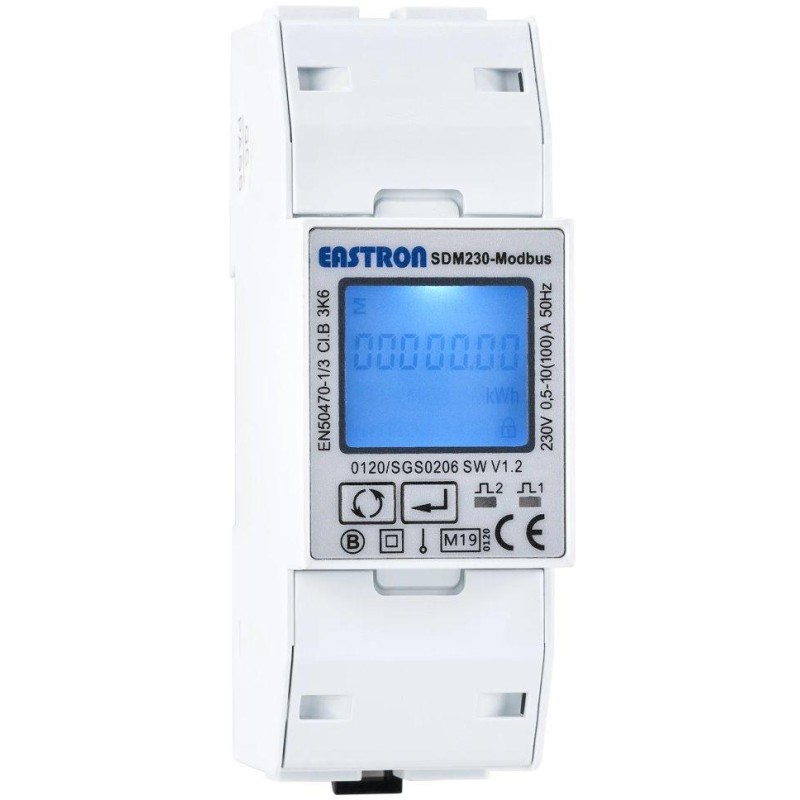

Modern digital single-phase multi-function electricity meter that measures up to 100 A of direct load . The SDM230modbus has 15 measured parameters and 4 different kWh measurement modes , which have been designed with the development of photovoltaics such as solar and battery storage in mind.

The pulse output can be configured for:

•

• Import + Export = total kWh

• Export - Import = total kWh (net)

• Import = total kWh

• Export = total kWh


There is a RS-485 Modbus RTU or M-bus EN13757-3 communication port. Communication parameters are password protected in setup mode. The SDM230-2T version can measure energy from two different sources and functions as a dual meter.

BASIC SPECIFICATIONS

Rated voltage (U _n ): AC 120 or 230 V

Operating voltage range: 80 to 120% of rated voltage (U _n )

Frequency: 50/60Hz

Current ( _Ib ): 10 A

Max. current (I _max ): 100 A

Insulation capability: withstand AC voltage 4 kV for 1 minute + withstand impulse voltage 6 kV - 1.2 µS
