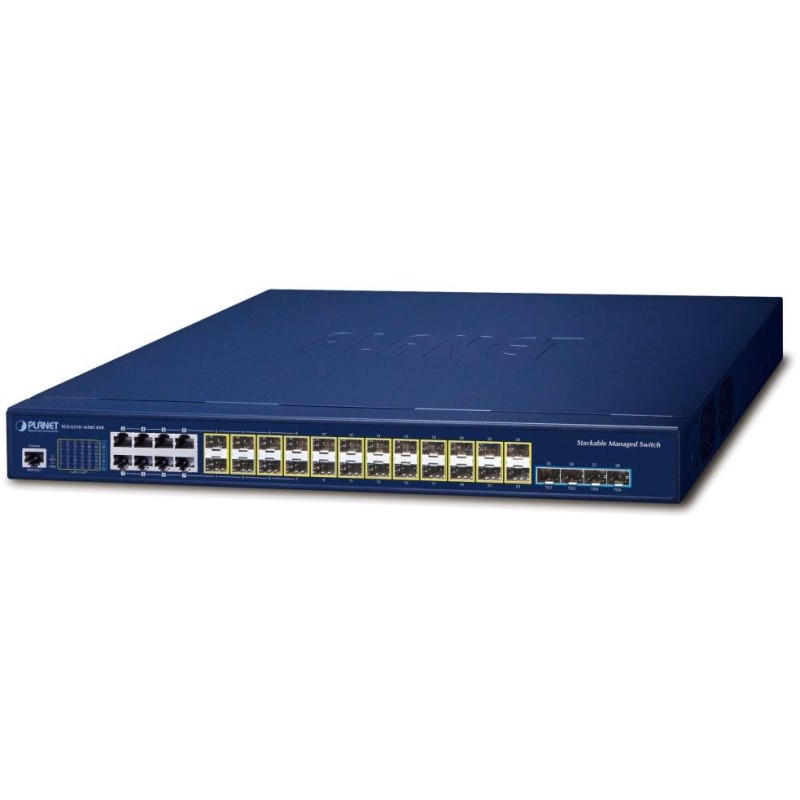

PLANET SGS-6310-16S8C4XR
Stackable managed L3 switch, 8x RJ-45 10/100/1000 Base-T (combo ports), 24x 1G SFP Base-X (ports/slots 1-8 are shared with RJ-45), 4x 10G SFP+ Base-SR/LR , 1x RJ-45 (RS-232) console port.
IPv4/IPv6 static routing at layer 3, dynamic routing using RIP (Routing Information Protocol) or OSPF (Open Shortest Path First), virtual and HW stacking, ERPS Ring - data transmission recovery time is less than 10 ms (ITU-T G.8032 ERPS Ethernet Ring Protection Switching).
Q-in-Q, VLAN, Multiple Spanning Tree, MSTP, MLD, LACP, IGMP, QoS, LLDP, ACL - Access Control List, DHCP Snooping, IP Source Guard, Dynamic ARP, SNMP, 802.1x, RADIUS/TACACS+, SFP-DDM (Digital Diagnostic Monitor).
Management - console/Telnet/web/SNMP v1/v2c, support for SSH v1/v2, TLS v1.2 and SNMP v3, capacity 128 Gbps, routing 95.23 Mpps , Rackmount 19" (1U), dual power supply 2x AC 100-240 V (50/60 Hz).
- Hardware Stacking - virtualization into one logical volume/system, 10G SFP+ interface, stack management using a single IP address, support for up to 8 hardware units
- IP routing - supports RIP v1/v2 and OSPF v2 (IPv4) + RIPng and OSPFv3 (IPv6), VRRP v1/v3 for redundant routing deployment, route redistribution, hardware VLAN routing
BASIC SPECIFICATIONS
Physical properties:
Ports: 8x RJ-45 10/100/1000 Base-T (combo ports), 24x 1G SFP Base-X (ports 1-8 are shared with RJ-45), 4x 10G SFP+ Base-SR/LR (backward compatible with 1000 Base-SX/LX/BX), 1x RJ-45 (RS-232) console port
Memory: 16k MAC addresses, 1.5 MB buffer
Throughput: 128 Gbps bus, operational 95.23 Mpps (64b)
Transmission support: JumboFrame 9 KB
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: dual, 2x AC 100-240 V (50/60 Hz) power supply, total power consumption up to 38 W
Protection: no
Operating temperature: 0 to +50 °C
Dimensions: 440 x 280 x 44 mm
Weight: 4000g
Administration functions:
Management: console via RJ-45, Telnet, Web, SNMP v1/v2c + support for SSH v1/v2, TLS v1.2 and SNMP v3
Access Control: IP/MAC or Time-based ACL
L3 routing: yes, static and dynamic routing
ACL filter and bonding:
IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering by MAC address
Time ACL, filtering traffic by time
QoS traffic prioritization: 8 priority queues on all ports, IEEE 802.1pa traffic prioritization according to ToS/DS in IP packet, CAR, HQoS, MAC/IP/TCP/UDP, IPv4/IPv6 DSCP, supports strict priorities and Weighted Round Robin (WRR), Tail-Drop, WRED, flow monitoring and traffic profiling
VLAN support:
VLAN with 802.1Q tags, up to 4K VLAN groups
802.1ad Q-in-Q tunneling (VLAN stacking)
GVRP for VLAN management
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
VLAN with IP subnet
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning protocol Tree
BPDU and root guard support
Port mirroring: RX, TX, RX+TX, many to one, one to one
Link aggregation: IEEE 802.3ad LACP/static trunk, 64 groups with 8 ports per group
Multicast IGMP: IGMP v1/v2/v3 snooping, IGMP querier mode support, MLD v1 support, MVR support, up to 1024 multicast groups (IPv4 + IPv6)
Authentication of connected devices: AAA TACACS+ and IPv4/IPv6 authentication via RADIUS (802.1x port/MAC based access control + RADIUS/TACACS authentication)
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, SFP-DDM (Digital Diagnostic Monitor)
Ethernet ring topologies STP/RSTP/MSTP and ERPS
