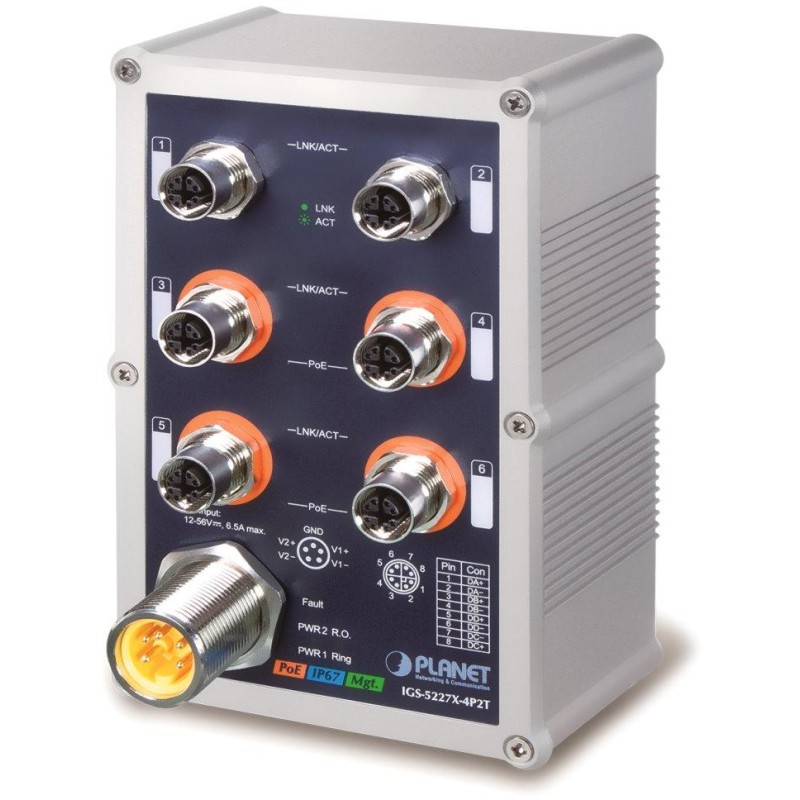

PLANET IGS-5227X-4P2T
Industrial PoE+ manageable L2/L3 switch, 6x 1000 Base-T M12 port (8pin X-coded Female), 1x M23 port (5pin A-coded Male), 4 PoE injectors IEEE 802.3af/at (ports 3 to 6), up to 36 W/port, power output up to 144 W (depending on power supply), mobile installation according to EN50155.
Waterproof with IP67 protection, aluminum housing, extended operating temperature range -40 to +75 °C , ESD protection up to 6 kV, DIN rail or wall mounting, mobile applications according to EN50155, dual redundant power supply DC 12-56 V (M23) .
Console, Web, Telnet, SNMP v1/v2c/v3, SSH v2, TLS v1.2, L3 static routing , VLAN, IGMP v3, MLD v1/v2, 802.1x, RADIUS, TACACS+, ERPS ring (ITU G.8032) , Spanning tree, QoS, DHCP Snooping, line aggregation, cabling diagnostics, Modbus TCP support for SCADA and HMI applications, 1588 v2 PTP (Precision Time Protocol), GARP VLAN Registration Protocol (GVRP), Link Layer Discovery Protocol (LLDP) support, compatible with Cisco Uni-directional link detection (UDLD), ONVIF support for cooperation with video IP surveillance devices.
Industrial Ethernet switches are designed for demanding operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. Versions of the switches of the series with an extended temperature range and waterproof design with the possibility of application in vehicles according to EN50155 .
They are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications). Their great advantage is an extended mean time between failures (MTBF)!
The IGS-5227 series switches are very robust, waterproof with an IP67 rating and are designed in an aluminum housing. The Ethernet ports use special industrial waterproof M12 connectors with ESD protection against electrostatic discharge.
BASIC SPECIFICATIONS
Physical properties:
Ports: 6x 1000 Base-T M12 (8pin X-coded Female), 1x M23 port (5pin A-coded Male)
Memory: 8k MAC addresses (autolearning and autoaging addresses), 4 Mb buffer
Throughput: 12 Gbps bus, operational 8.9 Mpps (64B)
Transmission support: JumboFrame 9kB
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: dual DC 12-56 V, redundant, connection possible from two different sources (not included), total power consumption up to 6.7 W (without PoE)
Protection: ESD up to 6 kV, reverse polarity protection
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 163 x 103 x 68.2 mm
Weight: 1151g
Administration functions:
Management: Console, Web, Telnet, SNMP v1/v2c/v3, SSH v2, TLS v1.2
Access Control: IP and MAC based ACL protocol, 256 rules
L3 static routing: 32 rules, 8 VLAN interfaces
ACL filter:
IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering by MAC address
Prioritizing traffic QOS: 8 levels based on strict priority and WRR, traffic prioritization by port, DSCP/ToS in IP packet, 802.1p priority or 802.1Q VLAN tag
Port shaper for ingress and egress bandwidth control (Ingress Shaper and Egress Rate Limit) for individual ports
VLAN support:
802.1Q tagged VLAN
up to 4k VLAN groups, up to 4095 VLAN IDs
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
VLAN Translation
Voice VLAN
GVRP
Multicast VLAN Registration (MVR)
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, RX+TX, Many-to-1
Link aggregation: IEEE 802.3ad LACP, 3 groups of 2 ports
IGMP multicast: IGMP v1/v2/v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS), TACACS+, IP/MAC binding
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, determines the length of the cabling and possible distance to the fault
PoE function:
Total power output: max. 144 W (depending on power supply), IEEE 802.3at/af
144W for DC 48-56V
90W for DC 18-47V
60W for DC 12-17V
Number of injectors: 4
Power supply type: End-span
Advanced features:
PD Alive Check
automatic detection of powered device
integrated scheduler for planned shutdown of powered end elements
PoE monitoring and management
PoE extension
PoE Legacy mode
LLDP PoE Neighbors
detection of activity of powered devices using ICMP (if there is no response, it can be restarted by disconnecting the power)
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload (IEC-60068-2-27), short-term acceleration 50g, long-term 4g
