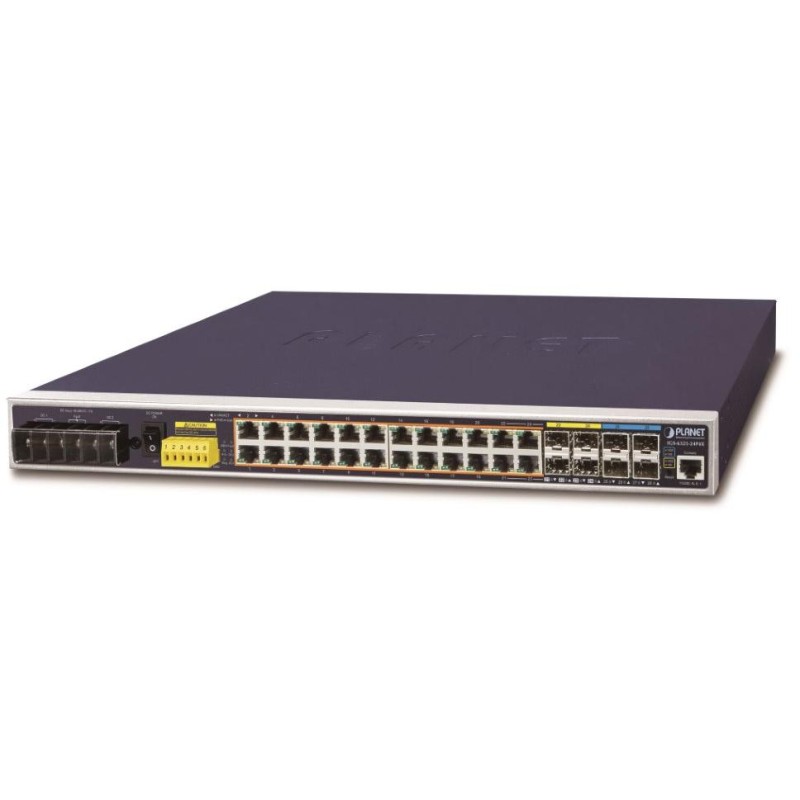

PLANET IGS-6325-24P4X
Industrial manageable L3 switch 24x 10/100/1000BASE-T RJ-45 with PoE+ power support up to 440 W, 4x 100/1000BASE-X SFP, 4x 10GbBASE-SR/LR SFP+.
Web/SNMPv3 management, 256 VLAN 802.1Q networks, Spanning Tree, Rapid Spanning Tree, 802.3ad LACP link aggregation, Port shaper, QoS, DHCP Snooping, ONVIF support, ERPS Ring - data transmission recovery time is less than 10 ms (ITU-T G.8032 ERPS Ethernet Ring Protection Switching).
ESD surge protection, IP30 protection, operating temperature -40 to 75 °C, fanless - without fans.
The switch supports ONVIF , a feature specifically designed for IP cameras. From the GUI, clients can search and view all available ONVIF devices with just one click. In addition, clients can upload floor maps themselves, which makes it easier to deploy monitoring and other devices for planning and control. In addition, real-time information and online/offline status can be obtained.
Intelligent switches for industrial Ethernet are designed for harsh operating conditions with wide operating temperature ranges, unstable power supply, and frequent shocks. They also provide excellent multi-connectivity capabilities to achieve robust system connectivity with very low recovery times.
It is equipped with a redundancy method using the Spanning Tree protocol (whose recovery time is in the order of seconds and fractions of seconds). L3 routing is supported for up to 128 rules and 128 VLAN interfaces.
IGS series switches enable the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
Their great advantage is the extended mean time between failures (MTBF)!
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 24 x RJ-45, 4 x SFP+, 4 x SFP, 1 x RJ-45 (RS232) serial console port
Memory: 16k MAC addresses, 32Mbit buffer
Throughput: 128 Gbps bus, 95.2 Mpps throughput (64B)
Transmission support: JumboFrame 10kB
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: redundant, DC 48-56 V (53 V DC recommended for PoE+ output), 11A, total power consumption up to 440 W (power supply not included)
Protection: ESD up to 5 kV
Operating temperature: -40 to 75°C, humidity up to 95%
Dimensions: 440 x 300 x 44 mm
Weight: 3800g
Administration functions:
Management: console via RJ-45, Telnet, Web, SNMP v1, v2c, v3, SSH, TLS, SSL
Access Control: IP and MAC based ACL protocol, 256 rules
L3 routing: static 128 rules, 128 VLAN interfaces; dynamic OSPF v2
ACL filter and binding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/ToS in IP packet, 802.1p or 802.1Q tags
/>
Port shaper bandwidth settings in the range of 10kb - 13Gb/s (Ingress), 100kb - 13Gb/s (Egress)
VLAN support: IEEE 802.1Q
up to 256 VLAN groups, up to 4096 VLAN IDs
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
Multicast VLAN Registration
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, both
Link aggregation: IEEE 802.3ad LACP, 16 ports in 14 groups
IGMP multicast: IGMP v1/ v2/ v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS) - IP+MAC binding, VLAN + MAC binding
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
POE function:
Total power output: IEEE 802.3at, IEEE 802.3af
48V power supply: max. 240W with single power supply, max. 300W with redundant power supply
Power supply 52-56 V: max. 240 W with single power supply, max. 440 W with redundant power supply
Number of injectors: 24 x up to 36 W
Power supply type: End-span
Advanced features: automatic detection of powered device
integrated scheduler for planned shutdown of powered end elements
detection of activity of powered devices using ICMP, if there is no response, it can be restarted by disconnecting the power
Ethernet ring topologies STP/RSTP/MSTP and ERPS
