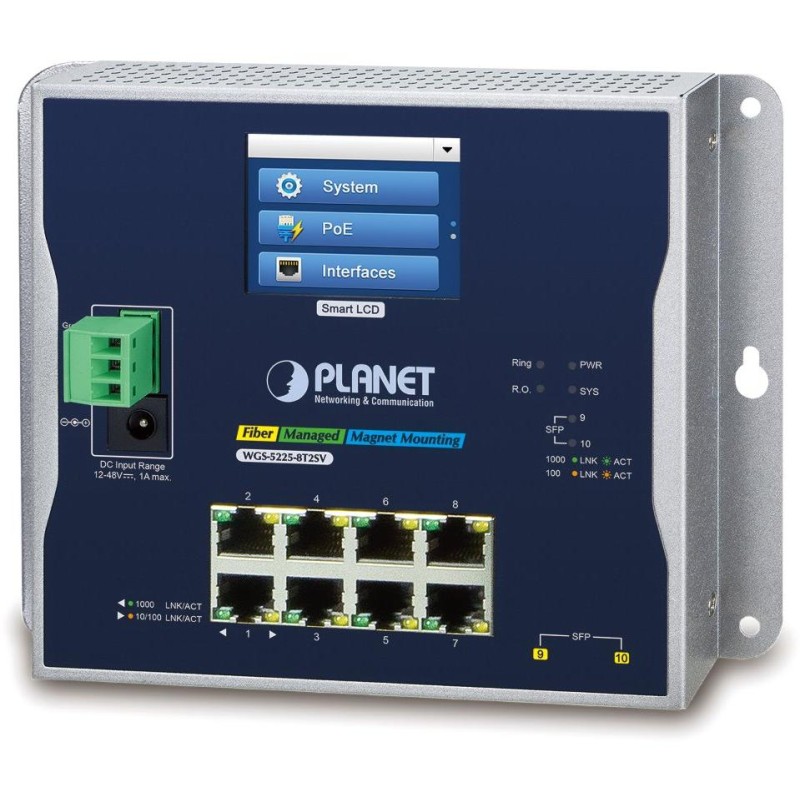

PLANET WGS-5225-8T2SV
Manageable industrial switch with advanced L2+/L4 switching and security + L3 software VLAN routing (IPv4 and IPv6). For accelerated management, it is equipped with a 2.4" color touch display , which allows for simple administration. This saves time on installation and possible configuration changes.
8x 10/100/1000Base-T RJ45, 2x 100/1000/2500Base-X mini-GBIC SFP , switch capacity 26 Gbps, throughput 14.88 Mpps (64 byte packets), 8k MAC addresses, 4 Mb buffer, 9 K JumboFrame support.
Installation on the wall (fixed/magnetic) or on a DIN rail directly into the distribution boards, metal design IP30 , the structure is resistant to falls and vibrations, ESD protection up to 6 kV, without fans (fanless), dual redundant power supply DC 12-48 V (adapter not included).
BASIC SPECIFICATIONS
Physical properties:
Ports: 8x 10/100/1000Base-T RJ45, 2x 100/1000/2500Base-X mini-GBIC SFP
Memory: 8k MAC addresses, 4 Mb buffer
Throughput: 26 Gbps bus, operational 14.88 Mpps (64B)
Transmission support: JumboFrame 9 KB
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: DC 12-48 V, redundant, total power consumption up to 8.5 W (power supply not included)
Protection: ESD up to 6 kV
Operating temperature: -20 to +70 °C, humidity up to 95%
Dimensions: 180 x 140 x 24.4 mm
Weight: 686g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
Administration functions:
Management: Console, Telnet, Web, SSH, SSL, SNMP v1/v2c/v3
Access Control: IP and MAC based ACL protocol, 256 rules
L3 static routing: 32 rules, 8 VLAN interfaces, IPv4/IPv6
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/TOS in IP packet, 802.1p or 802.1Q VLAN tag
VLAN support:
IEEE 802.1Q
up to 255 VLAN groups, 4094 VLAN IDs
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
Multicast VLAN Registration (MVR)
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
ERPS (Ethernet Ring Protection Switching): yes, ITU-T G.8032 ERPS, for critical network applications, up to 10 ms
Port mirroring: RX, TX, both, one-to-one
Link aggregation: IEEE 802.3ad LACP, 5 trunks with 2 ports per group
IGMP multicast: IGMP v1/v2/v3, up to 255 groups, IGMP Querier mode support
MLD Snooping: MLD v1/v2, up to 255 groups, supports MLD Querier mode
/>
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, SFP-DDM (Digital Diagnostic Monitor)
