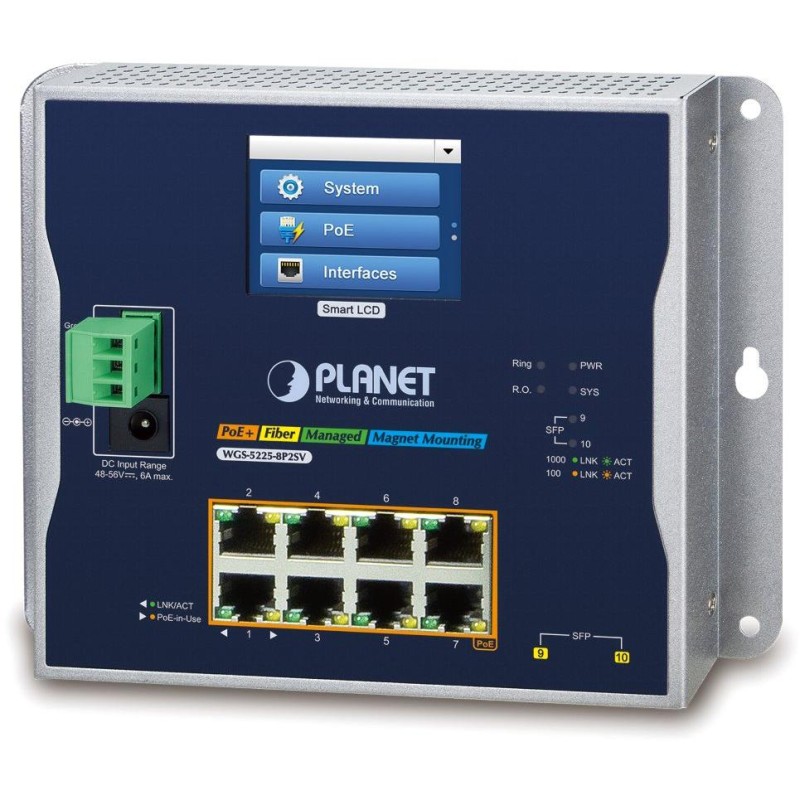

PLANET WGS-5225-8P2SV
Manageable industrial PoE+ switch with advanced L2+/L4 switching and security + L3 software VLAN static routing (IPv4 and IPv6). For accelerated management, it is equipped with a 2.4" color touch display , which allows for simple administration. This saves time on installation and possible configuration changes.
8x 10/100/1000Base-T RJ45 with PoE+ power supply 802.3at/af, 2x 100/1000/2500Base-X mini-GBIC SFP , switch capacity 26 Gbps, throughput 14.88 Mpps (64 byte packets), 8k MAC addresses, 4 Mb buffer, 9 K JumboFrame support, PoE+ power supply 802.3at/af, up to 36 W/port, total PoE budget 240 W
Installation on the wall (fixed/magnetic) or on a DIN rail directly into the distribution boards, metal design IP30 , the structure is resistant to falls and vibrations, ESD protection up to 6 kV, without fans (fanless), dual redundant power supply DC 48-56 V (adapter not included).
BASIC SPECIFICATIONS
Physical properties:
Ports: 8x 10/100/1000Base-T RJ45, 2x 100/1000/2500Base-X mini-GBIC SFP
Memory: 8k MAC addresses, 4 Mb buffer
Throughput: 26 Gbps bus, operational 14.88 Mpps (64B)
Transmission support: JumboFrame 9 KB
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: DC 48-56 V, redundant, total power consumption up to 251 W (7.2 W without PoE) (power supply not included)
Protection: ESD up to 6 kV
Operating temperature: -20 to +70 °C, humidity up to 95%
Dimensions: 180 x 140 x 24.4 mm
Weight: 686g
PoE function:
Total power output: 240 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 8x up to 36 W
Power supply type: End-span
Advanced features: integrated scheduler for scheduled shutdown of powered end devices (PoE schedule)
detection of activity of powered devices using ICMP
power control for each PoE port
possibility of defining priority and power limit
automatic detection of powered device (PD)
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
Administration functions:
Management: Console, Telnet, Web, SSH, SSL, SNMP v1/v2c/v3
Access Control: IP and MAC based ACL protocol, 256 rules
L3 static routing: 32 rules, 8 VLAN interfaces, IPv4/IPv6
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/TOS in IP packet, 802.1p or 802.1Q VLAN tag
VLAN support:
IEEE 802.1Q
up to 255 VLAN groups, 4094 VLAN IDs
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
Multicast VLAN Registration (MVR)
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
ERPS (Ethernet Ring Protection Switching): yes, ITU-T G.8032 ERPS, for critical network applications, up to 10 ms
Port mirroring: RX, TX, both, one-to-one
Link aggregation: IEEE 802.3ad LACP, 2 trunk groups with 2 ports per group
IGMP multicast: IGMP v1/v2/v3, up to 255 groups, IGMP Querier mode support
MLD Snooping: MLD v1/v2, up to 255 groups, supports MLD Querier mode
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, SFP-DDM (Digital Diagnostic Monitor)
