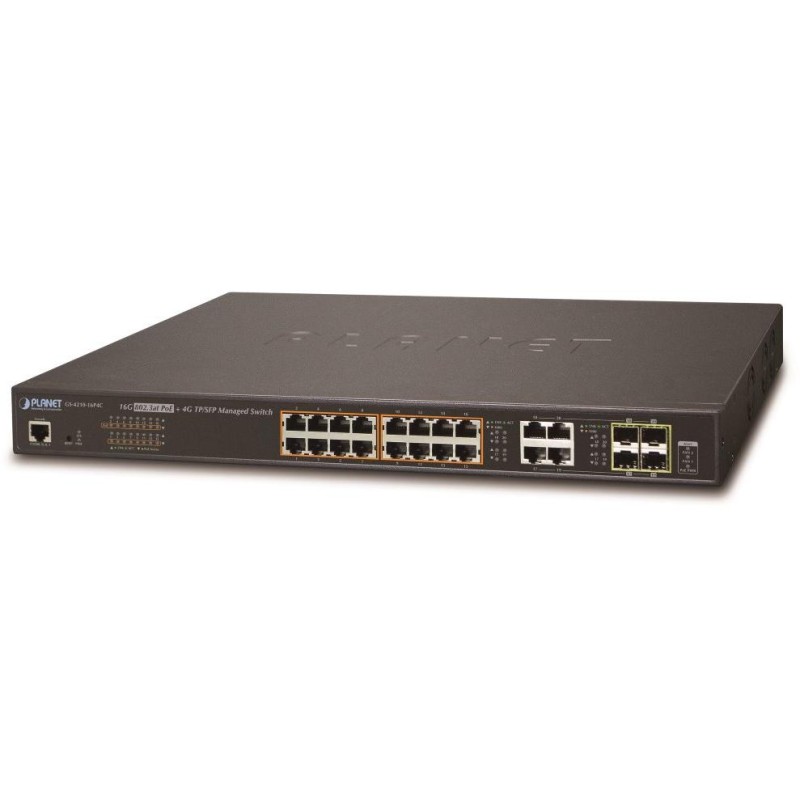

PLANET GS-4210-16P4C
Managed PoE switch with 20 1000Base-T ports, 16x 802.3at injectors, power up to 220W, 4x SFP ports 100/1000Base-X (shared with 17-20).
Web/SNMPv3/telnet/console management, VLAN 802.1Q, QoS, LACP, IGMPv3, Spannig tree. ACL+MAC filter, RADIUS/TACACS, DHCP snooping. IPv4/IPv6 support.
Extended mode for connection at 10Mb/s up to a distance of 150-200m on UTP depending on the cable used, including PoE power supply.
Gigabit managed switch with PoE (power over ethernet) ports for centralized power supply of devices over Ethernet such as IP cameras, WiFi elements or VOIP phones.
The device is suitable for installation in office or presentation spaces. It is also suitable for applications in local distribution cabinets, and connections can be made via SFP optical ports.
Secure management is ensured by encrypted web management or SNMPv3 protocol. End user connections can be secured by ACL/MAC rules or possible authorization to a RADIUS/TACACS server.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 20 x RJ-45 10/100/1000BASE-T, 4 x SFP 100/1000BASE-X, 1 x RJ-45 (RS232) console port
Memory: 8k MAC addresses, 4.1Mbit buffer
Throughput: 40 Gbps bus, operational 29.76 Mpps
Transmission support: JumboFrame 10KB
Design: 1U rack
Power supply: internal 100-240V/50-60Hz AC power supply, total power consumption <251W
Protection: ESD up to 6KV
Operating temperature: 0 to 50°C
Dimensions: 440 x 300 x 44.5 mm
Weight: 4132g
Administration functions:
Management: console via RS232, Telnet, Web, SNMP SSH/SSL, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: traffic prioritization according to 802.1p, 802.1Q and according to DSCP in IP packets, possibility of setting limits on packets sent per port and according to QoS rules
VLAN support: IEEE 802.1Q
up to 256 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling
Private VLAN
VLAN Protocol
Voice VLAN
GVRP
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, both
Link aggregation: IEEE 802.3ad LACP, 8 ports in 4 groups
IGMP multicast: IGMP v2/ v3, up to 256 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS) - IP+MAC binding, VLAN + MAC binding
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
POE function:
Total power consumption: 220 W at 25°C, 190 W at 50°C, IEEE 802.3af, IEEE 802.3at
Number of injectors: 16 x up to 30.8 W
Power supply type: End-span
Advanced features: integrated scheduler for scheduled shutdown of powered end elements
detection of activity of powered devices using ICMP, if there is no response, it can be restarted by disconnecting the power
Extended mode 10Mb/s with a range of up to 200m
