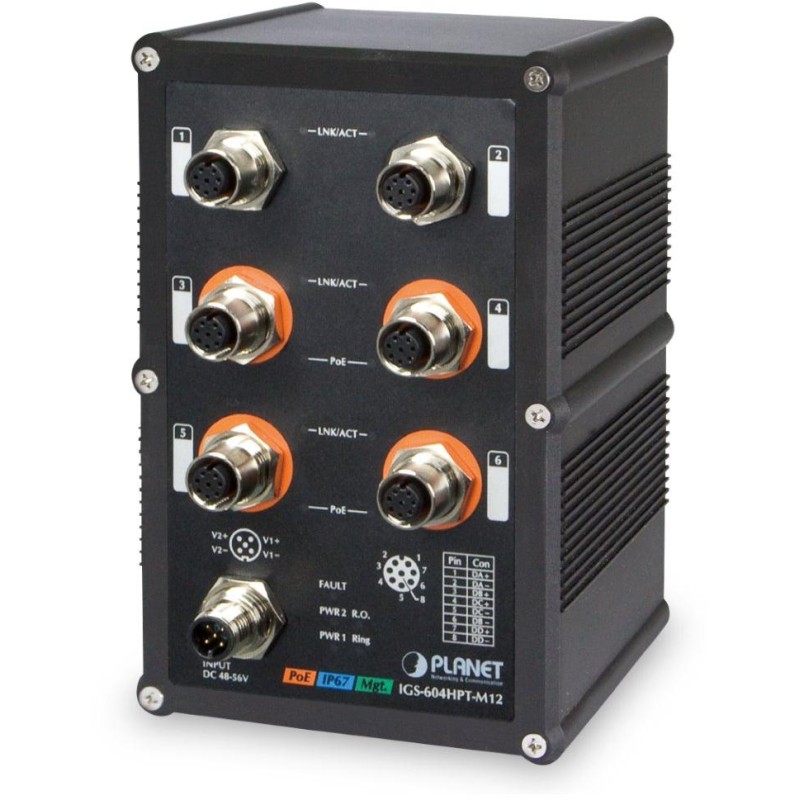

PLANET IGS-604HPT-M12
Waterproof industrial managed switch and converter with PoE, 6 1000Base-T ports, including 4 PoE injectors with a total power of 140W, M12 connectors.
Web/SNMPv3 management, scheduler. L3 static routing, VLAN support, LACP trunks, STP/RSTP, QoS according to several priority methods, port shaper, IGMPv3, ACL filter, RADIUS/TACACS+, PTP according to IEEE 1588.
Cabling diagnostics. ESD protection up to 6kV. DIN rail or wall mounting. EN50155 for mobile installations. Redundant power supply DC 48~56V, IP67 protection, aluminum housing, operating temperature -40 to +75°C.
Industrial Ethernet switches are designed for demanding operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. Versions of the switches of the series with an extended temperature range and waterproof design with the possibility of application in vehicles according to EN50155.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
As a PoE switch, it allows direct powering of up to 4 end devices according to the IEEE 802.3at standard, making it an ideal element for applications with reduced power options. Its waterproofness and wide thermal operability allow for deployment in extreme conditions.
BASIC SPECIFICATIONS
Physical properties:
Ports: 6 x 10/100/1000BASE-T M12 8-pin A-coded (F), 1 x M12 5-pin A-coded (M)
Memory: 8k MAC addresses, 4Mb buffer
Throughput: 12 Gbps bus, operational 8.9 Mpps (64B)
Transmission support: JumboFrame 9K
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: DC 48~56V redundant - connection possible from two different sources (not included), total power consumption up to 165.3W
Protection: ESD up to 6kV
Operating temperature: -40°C - 75°C, humidity up to 95%
Dimensions: 163 x 103 x 68.2 mm
Weight: 1069g
Administration functions:
Management: Telnet, Web, SNMP v1, v2c
Access Control: IP and MAC based ACL protocol, 256 rules
L3 static routing: 32 rules, 8 VLAN interfaces
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/ToS in IP packet, 802.1p or 802.1Q tags
Port shaper settings in the range of 500Kbps - 1000Mbps
VLAN support: IEEE 802.1Q
up to 255 VLAN groups, up to 4095 VLAN IDs
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
Multicast VLAN Registration
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
protocol MSTP, protocol IEEE 802.1s MultipThe Spanning Tree
Port mirroring: RX, TX, both
Link aggregation: IEEE 802.3ad LACP, 2 ports in 3 groups
IGMP multicast: IGMP v1/ v2/ v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS) - IP+MAC binding, VLAN + MAC binding, 256 rules
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, determines the length of the cabling and possible distance to the fault
POE function:
Total power output: 144 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 4 x up to 36 W
Power supply type: End-span
Advanced features:
integrated scheduler for planned shutdown of powered end elements
detection of activity of powered devices using ICMP, if there is no response, it can be restarted by disconnecting the power
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
