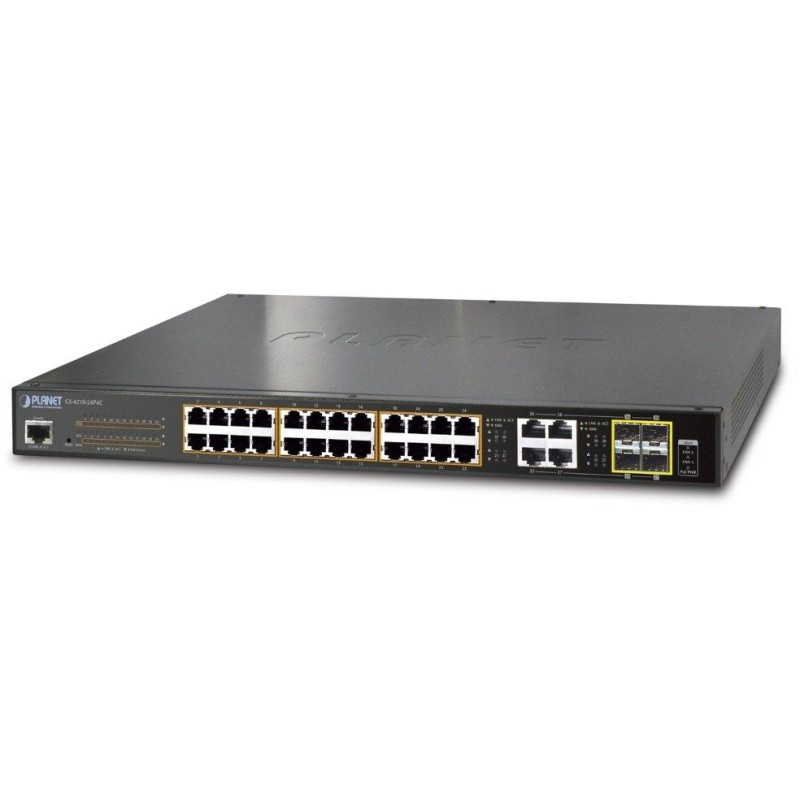

PLANET GS-4210-24PL4C
Managed PoE switch with 28 1000Base-T ports, 24x 802.3at injectors, power up to 440W, 4x SFP ports 100/1000Base-X (shared with 25-28).
Web/SNMPv3/telnet/console management, VLAN 802.1Q, QoS, LACP, IGMPv3, Spannig tree. ACL+MAC filter, RADIUS/TACACS, DHCP snooping. IPv4/IPv6 support.
Extend mode for connection at 10Mb/s up to a distance of 150-200m on UTP depending on the cable used, including PoE power supply.
Gigabit managed switch with PoE (power over ethernet) ports for centralized power supply of devices over Ethernet such as IP cameras, WiFi elements or VOIP phones.
The device is suitable for installation in office or presentation spaces. It is also suitable for applications in local distribution cabinets, and connections can be made via SFP optical ports.
Secure management is ensured by encrypted web management or SNMPv3 protocol. End user connections can be secured by ACL/MAC rules or possible authorization to a RADIUS/TACACS server.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 28 x RJ-45 10/100/1000BASE-T, 4 x SFP 100/1000BASE-X, 1 x RJ-45 (RS232) console serial port
Memory: 8k MAC addresses, 4.1 Mb buffer
Throughput: 56 Gbps bus, operational 41.67 Mpps (64B)
Transmission support: JumboFrame 10KB
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: internal AC 100-240V/50-60Hz, total power consumption up to 544W
Protection: ESD contact up to 4kV, air up to 8kV
Operating temperature: 0°C - 50°C
Dimensions: 440 x 300 x 44.5 mm
Weight: 4814g
Administration functions:
Management: Telnet, Web, SNMP SSH/SSL, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP in IP packet, 802.1p or 802.1Q tags
VLAN support: IEEE 802.1Q
up to 256 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling
Voice VLAN
VLAN Protocol
Private VLAN
GVRP
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, RX+TX, many-to-one
Link aggregation: IEEE 802.3ad LACP, 8 ports in 8 groups
IGMP multicast: IGMP v2/ v3, up to 256 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x, RADIUS, TACACS+ authentication
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
POE function:>
Total power consumption: 440 W at 25°C, 380 W at 50°C IEEE 802.3af, IEEE 802.3at
Number of injectors: 24 x up to 30.8 W
Power supply type: End-span
Advanced features:
PoE watchdog with PING and scheduler
Extended mode 10Mb/s with a range of up to 200m
