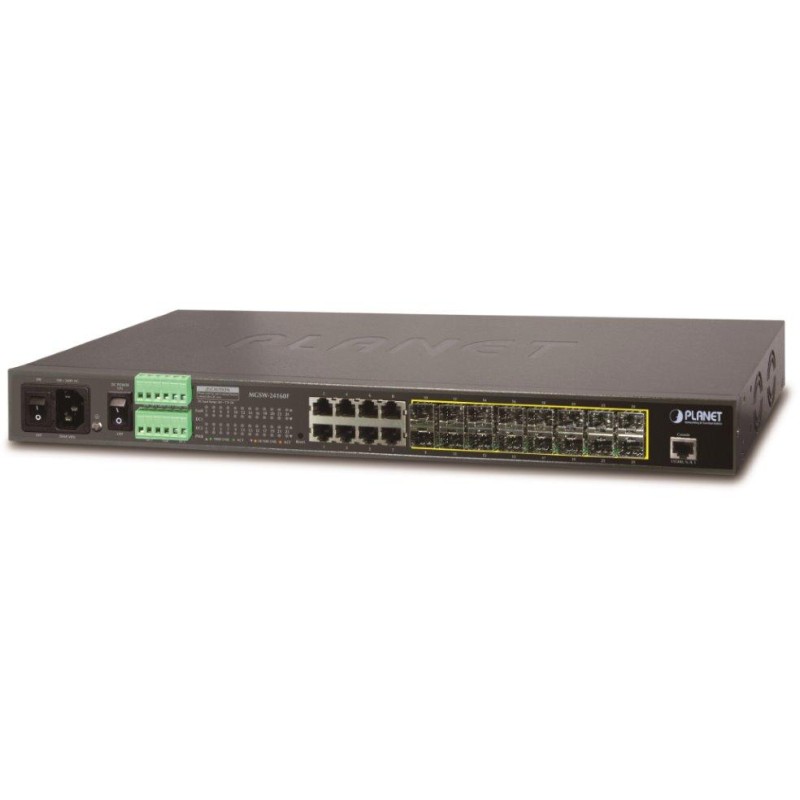

PLANET MGSW-24160F
Administerable IPv4/IPv6 switch, 16x SFP module slots (dual-speed, can be used with Fast Ethernet and Gigabit SFP modules), 8x 1000Base-T RJ-45 shared, 2x DI+2x DO. VLAN 802.1Q 255 networks, IGMPv3, QoS, LACP, STP/RSTP/MSTP, DHCP Snooping, Shaper, IP+MAC binding, 802.1x RADIUS, IP/MAC-ACL, SNMP v1/v2/v3, SSH/SSL, IPv6/IPv4 support, ERPS Ring - data transmission recovery time is less than 10 ms (ITU-T G.8032 ERPS Ethernet Ring Protection Switching). Rackmount, dual AC+DC power supply.
Managed SFP optical switch designed for applications in large-scale networks, telecommunications and for ISP or IPTV television service providers. Its physical and durable design makes it suitable for direct installation in route or end distribution cabinets. The device is operable in the temperature range of -10 to 60°C, can be powered redundantly, has a digital I/O interface and all ports are accessible from the front panel.
The switch can be managed via IPv4 and IPv6 protocols, SNMPv3 and securely on an encrypted SSL/SSH layer. The functions include suitable for integration in data centers or for connection and secure operation of end users, it is possible to control traffic based on QoS, filter and authorize access via ACL (Access Control List), physically activate ports based on authentication on a RADIUS server using the IEEE 802.1x protocol.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8 x RJ-45 10/100/1000BASE-T, 16 x SFP 100/1000BASE-X, 1 x RJ-45 (RS232) console port
Memory: 8k MAC addresses, 1392KB buffer
Throughput: 48 Gbps bus, operational 35.7 Mpps (64B)
Transmission support: JumboFrame 10KB
Design: rackmount 1U
Power supply: 100-240V/50-60Hz AC, dual with 36-60V DC, total power consumption up to 37.8W
Protection: ESD up to 6KV DC
Operating temperature: 0 to 60°C
Dimensions: 440 x 200 x 44.5 mm
Weight: 3000g
Administration functions:
Management: console via RS232, Telnet, Web, SNMP SSH/SSL, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol, 256 rules
L3 static routing: 32 rules, 128 VLAN interfaces
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags, DSCP
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/TOS in IP packet, 802.1p or 802.1Q tags
Port shaper settings in the range of 100 kbps - 1000 Mbps
VLAN support: IEEE 802.1Q
up to 256 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
Multicast VLAN registration
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Link aggregation: IEEE 802.3ad LACP, 8 ports in 24 groups
IGMP multicast: IGMP v1/ v2/ v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS) - IP+MAC binding
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
Ethernet ring topologies STP/RSTP/MSTP and ERPS
