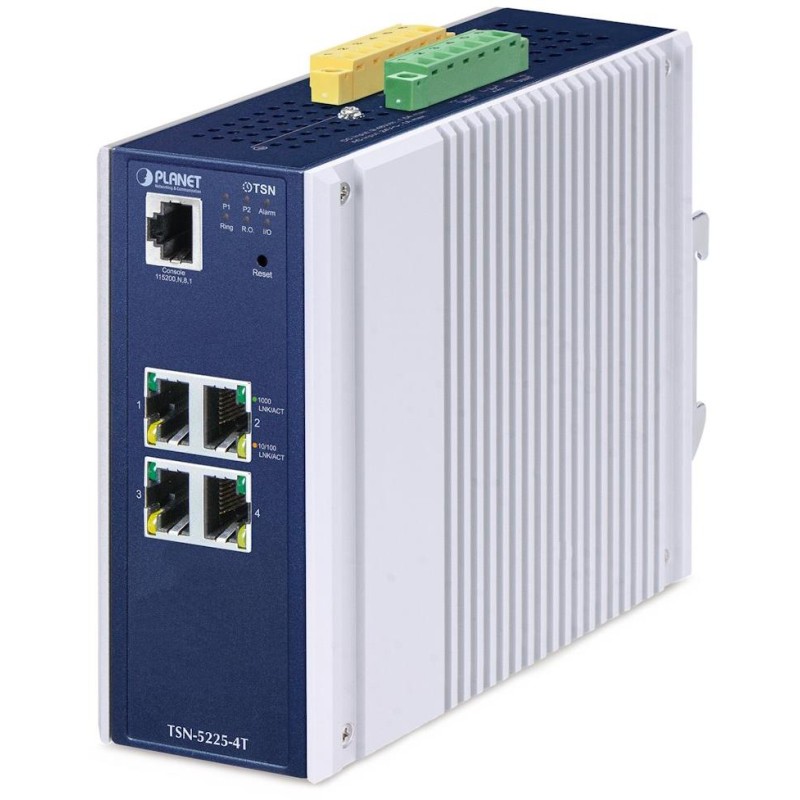

PLANET TSN-5225-4T
Innovative industrial Ethernet TSN (Time-Sensitive Networking) switch ensuring reliable transmission of time-sensitive data. It is designed for stable operation in demanding environments. It addresses all levels of the industrial automation network, from the fieldbus to the plant backbone. It guarantees high-priority end-to-end traffic transmission and extremely low latency.
New industrial L2+ switch for time-sensitive networks (TSN), 4× GbE RJ-45 Base-T.
ERPS ring (ITU-T G.8032 ERPS - Ethernet Ring Protection Switching) , industrial rugged design, digital inputs and outputs, static IP routing functions at Layer 3, QoS, security and other features.
Dual power supply in the range of DC 9–48 V or AC 24 V , active redundant protection in the event of a power failure, IP30 protection, aluminum housing, operating temperature -40 to +75 °C , overvoltage (up to 6 kV) and ESD protection up to 5 kV , mounting on a DIN rail or directly on the wall.
Possible monitoring with CloudViewerPro mobile application.
Time-sensitive network protocols:
High Precision Time Synchronization
IEEE1588 (Time Stamping)
802.1AS-Rev gPTP (default profile)
Shapers 802.1Qbv Time-aware Scheduling
802.1Qch Cyclic Queuing and Forwarding
TSN Stream Policing 802.1Qci Per Stream Filtering and Policing
Redundancy 802.1CB FRER Frame Replication and Elimination for Redundancy for seamless redundancy
Support for Standard Linear and Ring protection
Delay Reduction EEE 802.1Qbu Frame Preemption
IEEE 802.3br Interspersing Express Traffic (IET)
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
The IGS/TSN series switches are easily installed on a standard DIN rail or directly on a wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large operating temperature fluctuations (typically wireless and MAN ISP applications).
BASIC SPECIFICATIONS
Physical properties:
Ports: 4× GbE RJ-45, 1× console port RJ-45 (RS-232), 2× DI/DO, 1× alarm output (relay)
Memory: 64Mb, 1024Mb SDRAM
Throughput: 8 Gbps bus, operational 5.95 Mpps (64B)
Transmission support: JumboFrame 10 KB
Design: DIN rail, wall-mounted
Power supply: dual, DC 9–48 V or AC 24 V, total power consumption max. 9.89 W (power supply not included)
Protection: ESD up to 5 kV DC, surge protection up to 6 kV DC
Operating temperature: -40 to +75 °C
Dimensions: 135 × 135 × 60 mm
Weight: 962g
Administration functions:
Management: console via RJ-45, Telnet, Web, SNMP v1/v2c/v3, SSH v2, TLS v1.2
Access Control: ACL based on IP/MAC/Ethertype/protocol/VLAN/DSCP/802.1p, up to 512 rules
L3 routing: max. 8 VLAN interfaces, 32 static routing entries, IPv4/IPv6 SW static routing
ACL filter and bonding:
IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering by MAC address
QoS traffic prioritization: traffic classification, strict priority and WRR, 8-level priority for switching (port number, 802.1p priority, 802.1Q VLAN tag, DSCP/ToS field in IP packet)
VLAN support:
VLAN according to IEEE 802.1Q standard with tag
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
VLAN based on MAC address
Protocol-based VLAN
Voice VLAN
VLAN based on IP Subnet (IP Subnet)
MVR (Multicast VLAN registration)
GVRP
Up to 4K VLAN groups from 4096 VLAN IDs
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
BPDU Guard, BPDU Filtering, and Transparent BPDU
Port mirroring: RX, TX, RX+TX, many-to-one
Link aggregation: IEEE 802.3ad LACP, max. 2 trunk groups with max. 4 ports per group
Multicast: IGMP v1/v2/v3, IGMP querier mode support (up to 255 groups), MLD v1/v2, MLD querier mode support (up to 255 groups)
Authentication of connected devices: IEEE 802.1x, RADIUS, TACACS+
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: no
