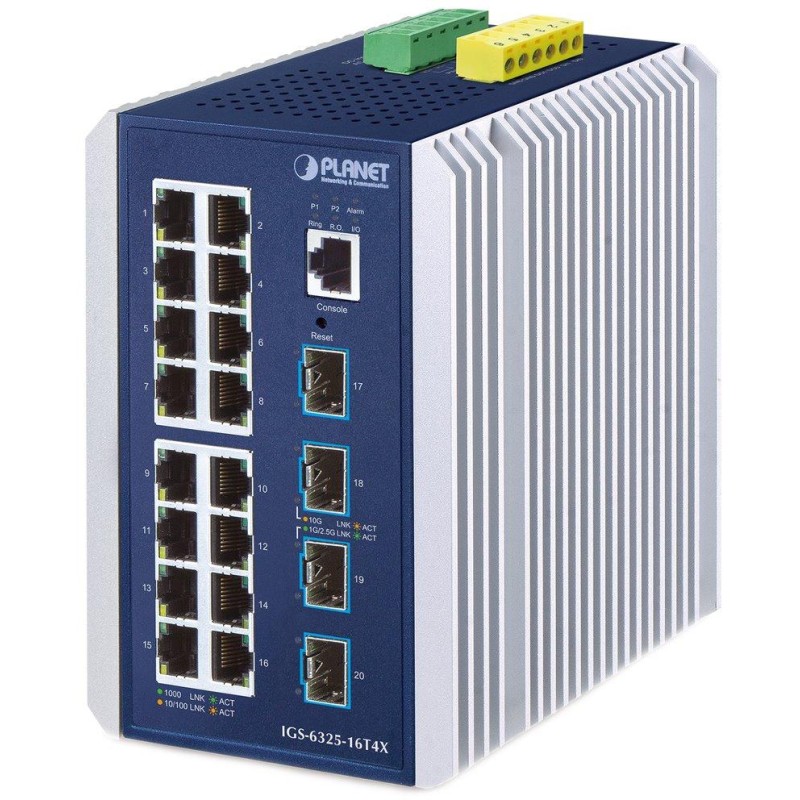

PLANET IGS-6325-16T4X
Industrial switch and converter 16× RJ-45 10/100/1000Base-T, 4× SFP+ 10GbBase-SR/LR, 2× digital input DI, 2× digital output DO .
Dual power supply in the range of DC 9–48 V / AC 24 V , IP30 protection, aluminum housing, operating temperature -40 to +75 °C , ESD surge protection up to 6 kV , mounting on a DIN rail or directly on the wall.
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
BASIC SPECIFICATIONS
Physical properties:
Ports: 16× RJ-45 10/100/1000 Base-T, 4× SFP+ 10Gb Base-SR/LR, 1× RJ-45 console port (RS-232), 2× digital input DI, 2× digital output DO
Memory: 32k MAC addresses
Throughput: 112 Gbps bus, operational 83.3 Mpps (64B)
Transmission support: JumboFrame 10 KB
Design: DIN rail, wall-mounted
Power supply: 9–48 V DC dual with 24 V AC, total power consumption 14.4–24 W (power supply not included)
Protection: ESD up to 6 kV DC, reverse polarity protection
Operating temperature: -40 to +75 °C
Dimensions: 152 × 107 × 96 mm
Weight: 1503g
Administration functions:
Management: console via RJ-45, Telnet, Web, SNMP v1/v2c/v3, SSHv2, TLS
Access Control: IP and MAC based ACL protocol
L3 routing: max. 128 VLAN interfaces, max. 128 rules, OSPFv2/v3, RIPv1/v2
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags, up to 256 rules
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags, up to 256 rules
QoS traffic prioritization: 8 levels, traffic prioritization by DSCP/ToS, port number, 802.1p priority, or 802.1Q VLAN tag
VLAN support:
IEEE 802.1Q
up to 4K VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
IP Subnet-based VLAN
Voice VLAN
Multicast VLAN
GVRP
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Link aggregation: IEEE 802.3ad LACP, 16 ports in 10 groups
Multicast: IGMP v1/v2/v3, IGMP querier mode support, up to 255 IGMP groups, MLD v1/v2
Authentication of connected devices: IEEE 802.1x, RADIUS/TACACS+
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
fromThe device is resistant to overload, short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
DIN rail mounting :
Wall mounting using the supplied frame :
