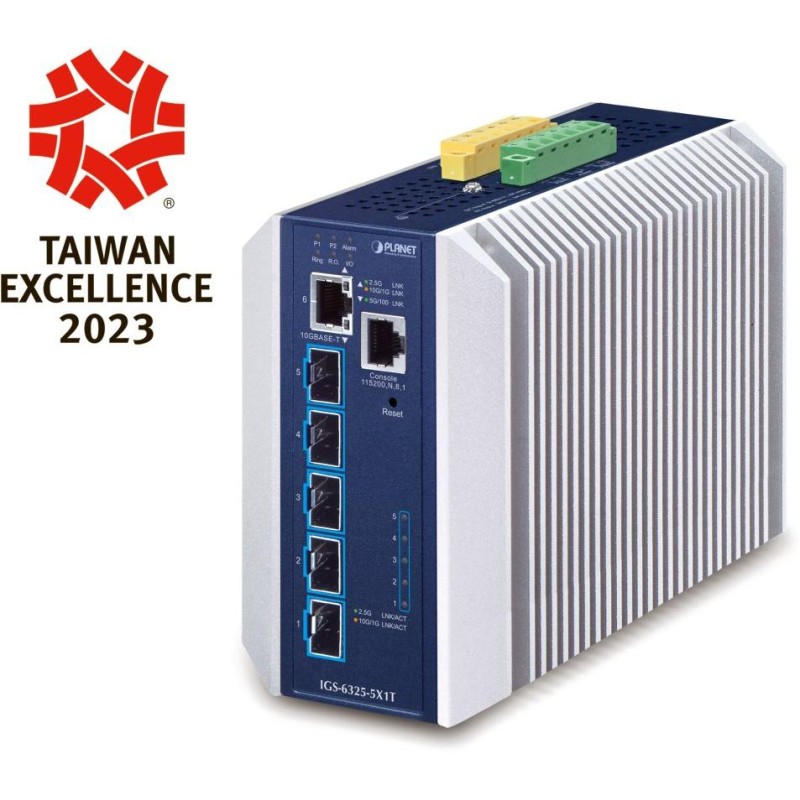

PLANET IGS-6325-5X1T
Industrial L3 switch and converter 1x 10G RJ-45, 5x 10G SFP+ Base-SR/LR (backward compatible with 1000 Base-SX/LX/BX and 2500 Base-X SFP).
ERPS ring (ITU-T G.8032 ERPS - Ethernet Ring Protection Switching) , industrial rugged design, digital inputs and outputs, Layer 3 IP routing functions, QoS, security and other features.
Dual power supply in the range of DC 9-48 V or AC 24 V , active redundant protection in the event of a power failure, IP30 protection, aluminum housing, operating temperature -40 to +75 °C , overvoltage (up to 6 kV) and ESD protection up to 5 kV , mounting on a DIN rail or directly on the wall.
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
BASIC SPECIFICATIONS
Physical properties:
Ports: 1x RJ-45 10G Base-T, 5x SFP+ 10G Base-SR/LR, 1x RJ-45 console port
Memory: 32k MAC addresses
Throughput: 120 Gbps bus, operational 89.285 Mpps (64B)
Transmission support: JumboFrame 10 KB
Design: DIN rail, wall-mounted
Power supply: dual, DC 9-48 V or AC 24 V, total power consumption max. 22.08 W (power supply not included)
Protection: ESD up to 5 kV DC, surge protection up to 6 kV DC
Operating temperature: -40 to +75 °C
Dimensions: 135 x 135 x 80 mm
Weight: 1550g
Administration functions:
Management: console via RJ-45, Telnet, Web, SNMP v1/v2c/v3, SSH v2, TLS v1.2
Access Control: ACL based on IP/MAC/Ethertype/protocol/VLAN/DSCP/802.1p, up to 512 rules
L3 routing: max. 128 VLAN interfaces, 512 static routing entries, 3072 routing table entries, OSPF v2/v3, RIP v2, IPv4/IPv6 HW static routing
ACL filter and bonding:
IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering by MAC address
QoS traffic prioritization: traffic classification, strict priority and WRR, 8-level priority for switching (port number, 802.1p priority, 802.1Q VLAN tag, DSCP/ToS field in IP packet)
VLAN support:
VLAN according to IEEE 802.1Q standard with tag
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
VLAN based on MAC address
Protocol-based VLAN
Voice VLAN
VLAN based on IP Subnet (IP Subnet)
MVR (Multicast VLAN registration)
GVRP
Up to 4K VLAN groups from 4095 VLAN IDs
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Link aggregation: IEEE 802.3ad LACP, max. 3 trunk groups with max. 6 ports per group
Multicast: IGMP v1/v2/v3, IGMP querier mode support (up to 255 groups), MLD v1/v2, r supportežimu MLD querier mode (up to 255 groups)
Authentication of connected devices: IEEE 802.1x, RADIUS, MAC
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, SFP-DDM (Digital Diagnostic Monitor)
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts.
The device is vibration resistant (IEC-60068-2-6).
The device is resistant to overload, short-term acceleration of 50g, long-term 4g (IEC-60068-2-27).
DIN rail mounting :
Wall mounting using the supplied frame :
