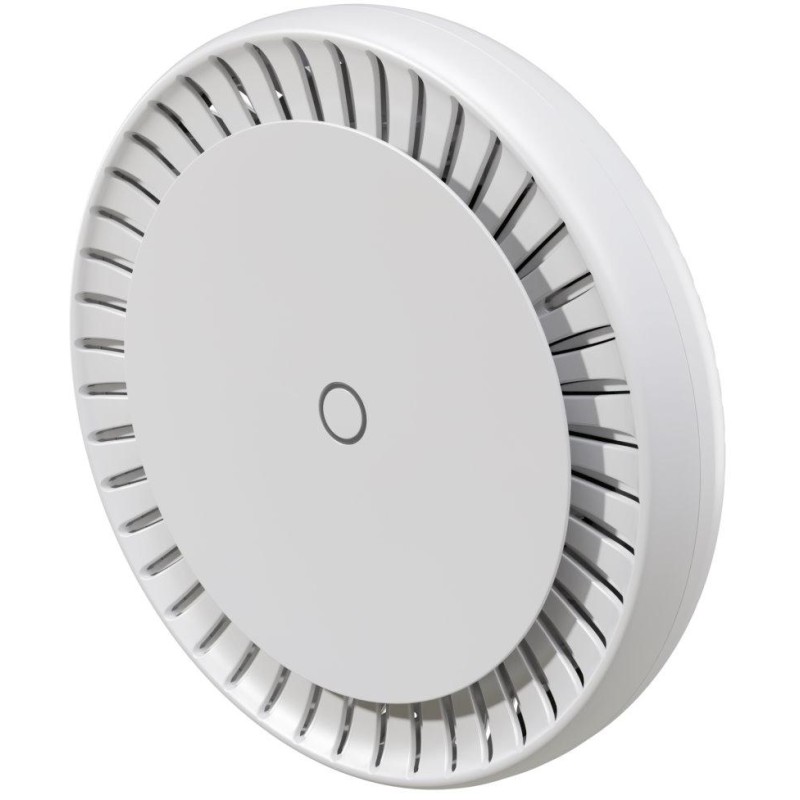

MikroTik cAP ax, cAPGi-5HaxD2HaxD, Quad core 1.8 GHz, 2.4/5GHz Wi-Fi 6, 2x GbE PoE+ in/out, L4

MikroTik cAP ax The best-selling ceiling access point is back - more powerful than ever! The new generation of excellent wireless connectivity for offices, hotels, shopping malls, etc. Excellent Wi-Fi 6 (802.11ax) AP/HotSpot for covering all interiors is equipped with high-gain antennas that provide better coverage compared to previous cAP models. This 2-band access point works on both frequencies simultaneously, making it suitable for all types of phones, tablets, computers and other devices. The unit supports 2.4 GHz and 5 GHz frequencies in a 360° range and is suitable for covering halls or vestibules. The internal antenna has a gain of 6 and 5.5 dBi. The unit includes MikroTik RouterOS v7 software with L4 license. MikroTik cAP ax has an integrated PoE+ splitter, so it can be powered directly via FTP/UTP cable (PoE+ 802.3af/at). The second port can be used as a passive PoE output (up to 57 V). Fast and reliable 802.11ax (Wi-Fi 6) wireless connection Modern 4-core processor with a frequency of 1.8 GHz 2× Gigabit Ethernet port PoE-in and PoE-out for powering other devices (e.g. CCTV cameras!) 1 GB RAM (DDR3L) RouterOS v7 Various power options (PoE or DC jack) Compared to the previous generation, the cAP ax offers more advanced authentication types: OWE, WPA3-PSK, WPA3-EAP and 802.11r roaming Tip: The configurable button in the middle turns off all the lights, but can be set to run any RouterOS script. Information about the MikroTik RouterOS system If you are starting with MikroTik RouterOS or need advice on more complex settings, you can use our support. You can learn how to set up and manage the RouterBoard in our trainings. Don't know which model to choose? Check out this comparison table for more information to help you make your choice. All RouterBoards have the same MikroTik RouterOS system. All devices with MikroTik RouterOS fully support IPv6, have a firewall, Queues, NAT and with an L4 license support the CAPsMAN server. MikroTik can be configured via a web interface, a mobile application, or the winbox program, which can be downloaded from mikrotik.com. MikroTik has a "Quick Set" option for quick setup. There are several preset profiles to choose from. BASIC SPECIFICATIONS Frequency: 2.4 and 5 GHz, 802.11a/b/g/n/ac/ax Processor: Qualcomm IPQ-6010 (1.8 GHz, 4-core) Antenna: internal, 6 dBi (2.4 GHz), 5.5 dBi (5 GHz) Connectivity: 2× GbE RJ-45 PoE support: yes, PoE/PoE+ 802.3af/at input, passive PoE output (up to 57 V) Operating system: RouterOS v7 (Level 4 license) Power supply: DC 48 V adapter or PoE/PoE+ 802.3af/at (18–57 V) Useful links and videos: Declaration of conformity + user manual Device setup via Quick Set quick guide Mobile phone control application Device reset, reset button function RouterOS MikroTik system recovery via Netinstall utility Address translation (NAT) setup Load setup Balancing (distribution of traffic between multiple internet connections) Failover settings (switching a line to a backup in case of an outage) Multiple uplinks using PCC & Load balancing Static NAT & RouterOS MikroTips: Netinstall
