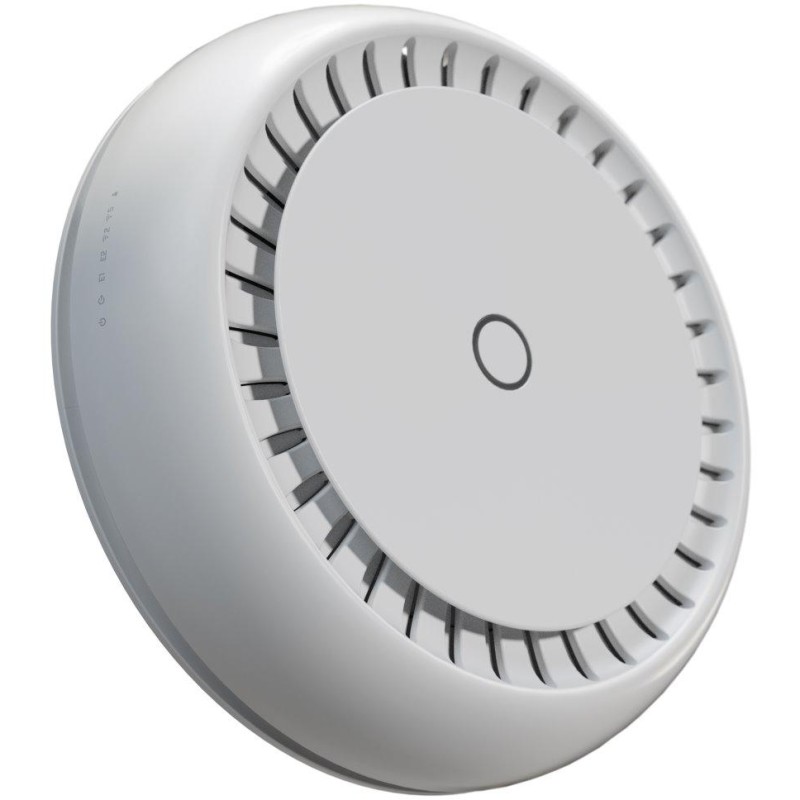

MikroTik cAP XL ac, RBcAPGi-5acD2nD-XL 2.4/5GHz Wi-Fi 5, Quad Core 710MHz, 2x GbE PoE+ in/out, L4

MikroTik cAP XL ac The new version of the excellent AP/HotSpot for indoor coverage is equipped with high-gain antennas that provide up to 100% greater area coverage compared to previous cAP models. This dual-band access point operates on both frequencies simultaneously, and is therefore designed for all types of phones, tablets and computers. A great advantage is the support of 802.11na and 802.11ac standards. The unit supports 2.4 GHz and 5 GHz frequencies in a 360° range and is suitable for covering halls or vestibules. The internal antenna has a gain of 6 and 5.5 dBi. The unit includes MikroTik RouterOS software with an L4 license. MikroTik cAP XL ac has an integrated PoE+ splitter, so it can be powered directly via an FTP/UTP cable (PoE+ 802.3af/at). The second port can be used as a passive PoE output (up to 57 V). Tip: The configurable button in the middle turns off all lights and sounds, but can be set to run any RouterOS script. Information about RouterOS MikroTik If you are starting with RouterOS MikroTik or need help with a more complex setup, you can use our support. You can learn how to set up and manage your RouterBoard in our trainings. Not sure which model to choose? Check out this comparison table, where you will also find other information to help you make your choice. All RouterBoards have the same RouterOS MikroTik system. All devices with RouterOS MikroTik fully support IPv6, have a firewall, Queues, NAT and with an L4 license support the CAPsMAN server. MikroTik can be set up via the web interface, via the mobile application, or with the winbox program, which can be downloaded from mikrotik.com. MikroTik has a "Quick Set" option, i.e. a quick setup option. There are several preset profiles to choose from. BASIC SPECIFICATIONS Frequency: 2.4 and 5 GHz, 802.11a/b/g/n/ac Processor: Qualcomm IPQ-4018 (710 MHz, 4-core) Antenna: internal, 6 dBi (2.4 GHz), 5.5 dBi (5 GHz) Connectivity: 2x GbE RJ-45 PoE support: yes, PoE/PoE+ 802.3af/at input, passive PoE output (up to 57 V) Operating system: RouterOS Level 4 Power supply: DC 24 V adapter or PoE/PoE+ 802.3af/at Useful links and videos: Declaration of conformity + user manual Device setup via Quick Set quick guide Mobile phone control application Device reset, reset button function RouterOS MikroTik system recovery via Netinstall utility Address translation (NAT) setup Load Balancing setup (distribution of traffic between multiple Internet connections) Failover setup (switching the line to the backup in case of an outage) Multiple uplinks using PCC & Load balancing Static NAT & RouterOS MikroTips: Netinstall
