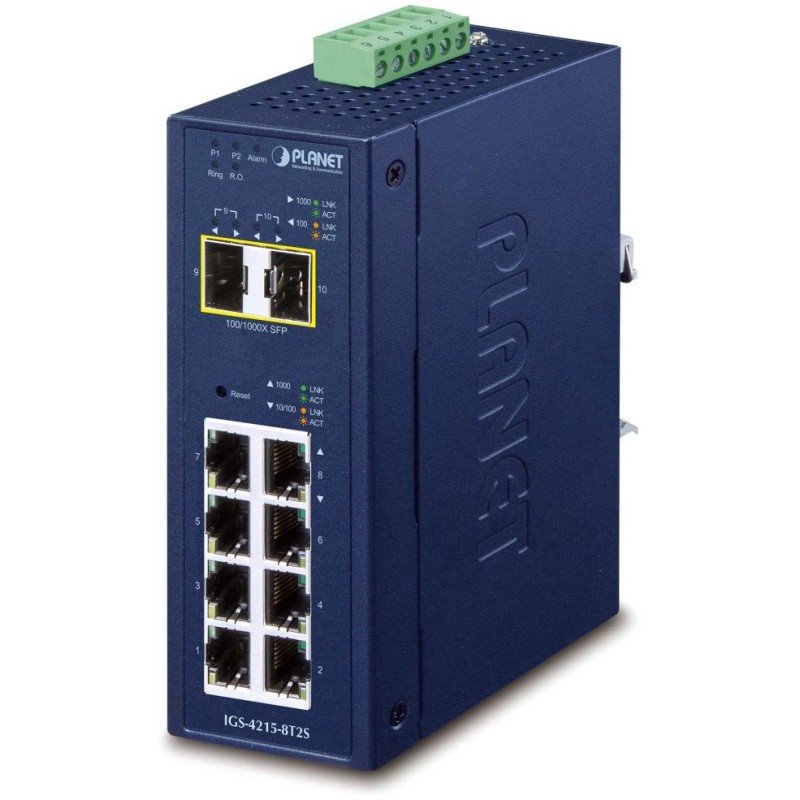

PLANET IGS-4215-8T2S
Industrial managed switch 8x RJ-45 10/100/1000 Base-T, 2x SFP 100/1000 Base-SX/LX/BX (DDM diagnostics).
IPv4/IPv6, Web/SNMP/Telnet support, UNI-NMS + Smart Discovery Utility and CloudViewer app , CSMA/CD protocol support, VLAN 802.1Q, 802.3x Flow Control , Spanning Tree, Multiple/Rapid Spanning Tree, 802.3ad LACP line aggregation , QoS, DHCP snooping, LLDP, IGMP v1/v2/v3, RADIUS, TACACS+, ERPS Ring (ITU-T G.8032) .
Alarm output in case of power failure, ESD protection up to 6 kV, IP30 protection, metal housing, operating temperature -40 to +75 °C , DIN rail mounting or directly on the wall, dual power supply DC 9-48 V or AC 24 V.
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall , enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8x GbE RJ-45, 2x 1G SFP
Memory: 8k MAC addresses, 4.1 Mb buffer
Throughput: 20 Gbps bus, operational 14.8 Mpps (64B)
Transmission support: JumboFrame 9kB
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: dual, DC 9-48 V or AC 24 V, power consumption up to 6.93 W (power supply not included)
Protection: ESD up to 6 kV DC
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 135 x 87.8 x 50 mm
Weight: 0.51 kg
Administration functions:
Management: Web, Telnet, SNMP v1/v2c/v3, SSH v2, TLS v1.1/v1.2
Access Control: IP/MAC-based ACL (ACL/ACE) protocol
ACL filter and bonding:
IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering by MAC address
QoS traffic prioritization: 8 levels, support for Ingress/Egress limit, DSCP remarking, traffic prioritization by port, 802.1p, DSCP/IP or TNA (Typical Network Application)
VLAN support:
IEEE 802.1Q (VLAN tagging)
up to 256 VLAN groups, up to 4096 VLAN IDs
Q-in-Q tunneling (802.1ad)
Voice VLAN
VLAN Protocol
Private VLAN (Protected port)
GVRP
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol, by VLAN
Port mirroring: RX, TX, RX+TX, many to one
Link Aggregation: IEEE 802.3ad LACP and Static Trunk, up to 10 ports in 5 groups
IGMP multicast: IGMP v1/v2/v3, up to 256 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x, RADIUS/TACACS+
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes (SFP-DDM - Digital Diagnostic Monitor)
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g (IEC-60068-2-27)
