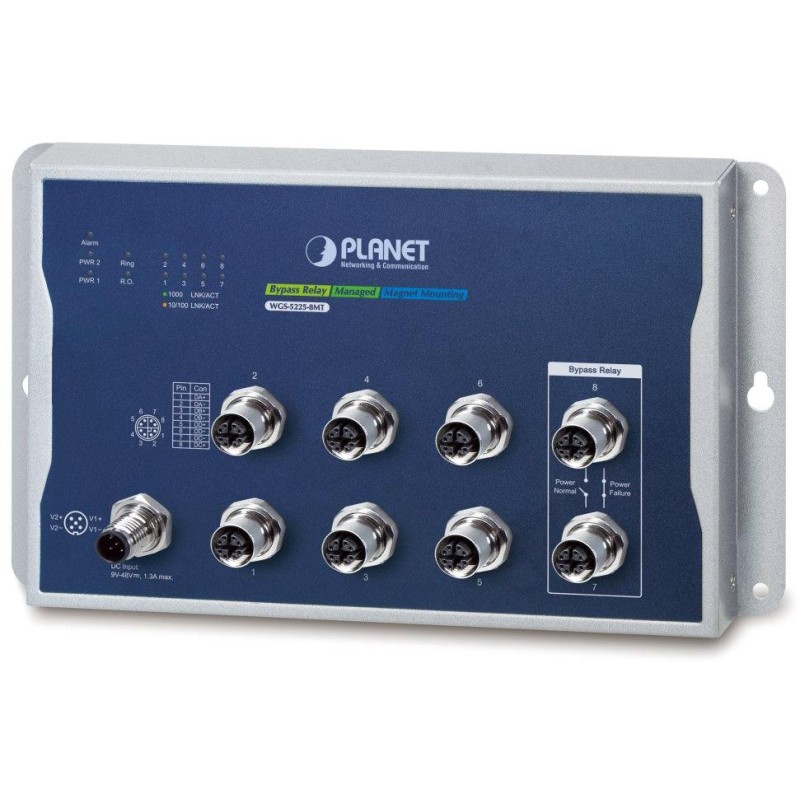

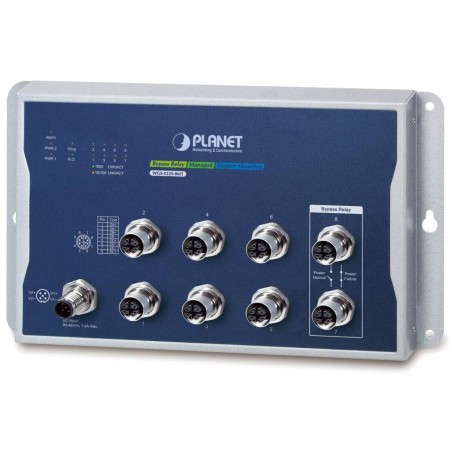

PLANET WGS-5225-8MT
Manageable industrial M12 switch with advanced L2+/L4 switching and security + L3 software VLAN static routing (IPv4 and IPv6) and Bypass mode support (1 pair).
8x 10/100/1000 Base-T M12 (8pin X-coded female), 1x M12 power port (5pin A-coded male), switch capacity 16 Gbps, throughput 11.9 Mpps (64 byte packets), 4k MAC addresses, 4 Mb buffer, 10k JumboFrame support.
Installation on the wall (fixed/magnetic) or on a DIN rail directly into distribution boards, metal design IP40 , the structure is resistant to falls and vibrations, mobile application according to EN50155, ESD protection up to 6 kV, without fans (fanless), redundant power supply DC 9-48 V (adapter not included).
Industrial Ethernet switches are designed for demanding operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. Versions of the switches of the series with an extended temperature range and waterproof design with the possibility of application in vehicles according to EN50155 .
Web/Telnet/SNMP v1/v2c, SSH v2, TLS v1.2, SNMP v3 , L3 static routing (L2+), VLAN, 802.1Q, ACL filter, QoS, bandwidth manager, control by IP/MAC/Ethertype/protocol/VLAN/DSCP/802.1p filters, LACP link aggregation, IGMP v1/v2/v3, 802.1x, RADIUS, TACACS+, Modbus TCP, ERPS Ring Data Recovery time <10ms (ITU-T G.8032), support for 1588 PTP v2 Transparent Clock , support for Bypass mode , Cybersecurity.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8x 10/100/1000 Base-T M12 (8pin X-coded female), 1x power port M12 (5pin A-coded male)
Memory: 4k MAC addresses, 4 Mb buffer
Throughput: 16 Gbps bus, operational 11.9 Mpps (64B)
Transmission support: JumboFrame 10kB
IP protocol version: IPv4, IPv6
Design: wall-mounted, DIN rail-mounted
Power supply: DC 9-48 V, redundant, total power consumption up to 11.04 W (power supply not included)
Protection: ESD up to 6 kV
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 245 x 140 x 24.4 mm
Weight: 1 kg
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
Administration functions:
Management: Telnet, Web, SSH v2, TLS v1.2, SNMP v1/v2c/v3
Access Control: ACL based on IP/MAC/Ethertype/protocol/VLAN/DSCP/802.1p, up to 256 rules
L3 static routing: 32 rules, 8 VLAN interfaces, IPv4/IPv6
ACL filter and bonding:
IP ACL, traffic filtering by IP address and other attributes
MAC ACL, traffic filtering by MAC address and other attributes
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/ToS in IP packet, 802.1p or 802.1Q tags (VLAN tag)
VLAN support:
IEEE 802.1Q
up to 4k VLAN groups, up to 4095 VLAN IDs
Q-in-Q tunneling (802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
IP SubnetEthernet-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol, by VLAN
Port mirroring: RX, TX, RX+TX, many to one
Link aggregation: IEEE 802.3ad LACP/Static Trunk, 8 ports in 4 groups
IGMP multicast: IGMP v1/v2/v3, up to 255 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x, RADIUS, MAC
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: no
