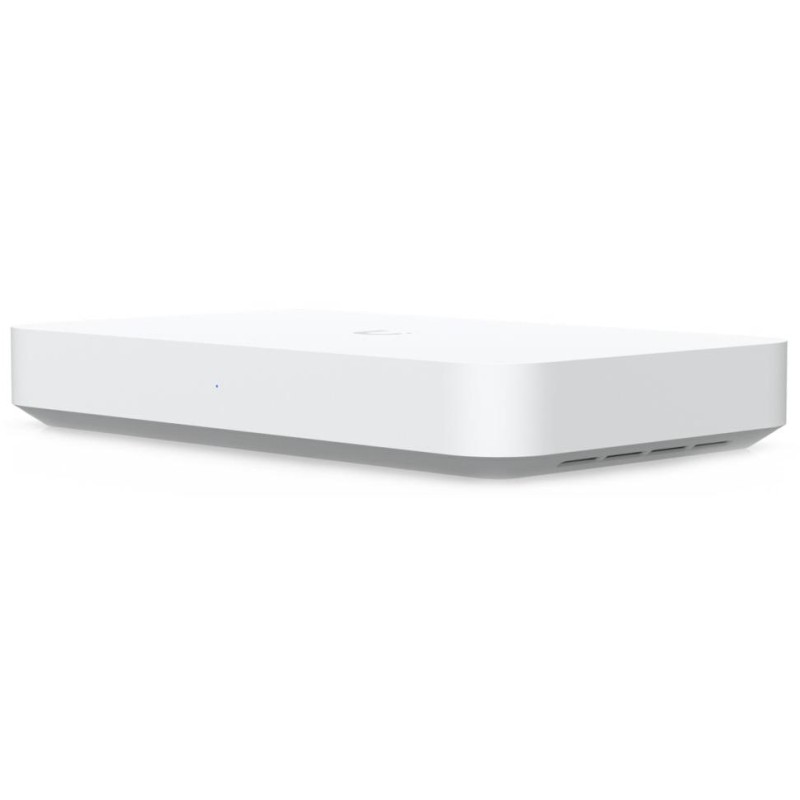

Ubiquiti UniFi Gateway Fiber - Router, IDS/IPS throughput 5Gbps, 4x 2.5GbE, 1x 10GbE, 2x SFP+, 1x PoE+ (30W)

Ubiquiti UniFi Cloud Gateway Fiber

Desktop 10G cloud gateway with integrated 4-port 2.5 GbE switch .

The Ubiquiti UniFi Gateway Fiber features one 10G RJ-45 WAN port, two 10G SFP+ ports (WAN+LAN) , and four 2.5G RJ-45 ports, providing the high-speed connectivity needed to support most bandwidth-intensive applications. It also stands out as a compact network security solution that offers a complete set of threat mitigation features , including intrusion detection and prevention systems (IDS/IPS) and content filtering.

Features and benefits:

•

• Management via CloudKey, official UniFi hosting or UniFi network server

• 1× 10G SFP+ WAN port, 1× 10G SFP+ LAN port, 1× 10G RJ-45 WAN port

• Quad-Core ARM Cortex-A73 (2.2GHz), 2GB RAM

• Integrated 4-port switch with one PoE+ port

• WireGuard, L2TP and OpenVPN server

• IDS/IPS throughput up to 5 Gbps

• QoS with UniFi Wi-Fi Access Points

• ESD/EMP protection through air up to 8 kV, contact 4 kV


Security:

•

• Application-specific firewall rules

• Signature-based IPS/IDS threat detection

• Content, country, domain, and application filtering

• DPI and traffic identification

• Fully stateful firewall

• Ad blocking


Advanced network technologies:

•

• License-free SD-WAN

• Site-to-Site VPN: Site Magic, IPsec, OpenVPN

• VPN server: Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP

• VPN client: OpenVPN, WireGuard

• OSPF, QoS, Multicast DNS, NAT, RADIUS


BASIC SPECIFICATIONS

Interface: Bluetooth, 1× 10G SFP+, 4× 2.5G RJ-45, 1× 10G SFP+ (WAN), 1× 10G RJ-45 (WAN)

Processor: ARM Cortex-A73 (4-core, 2.2 GHz)

Memory size: 2GB RAM

Storage: no

PoE support: yes, 1× PoE+, budget 30 W

Power supply: DC 54V/1.1A (50-57V)

Dimensions: 212.8 x 127.6 x 30 mm

Weight: 605g

Manual (assembly instructions):

dl.ui.com/qig/uxg-fiber
