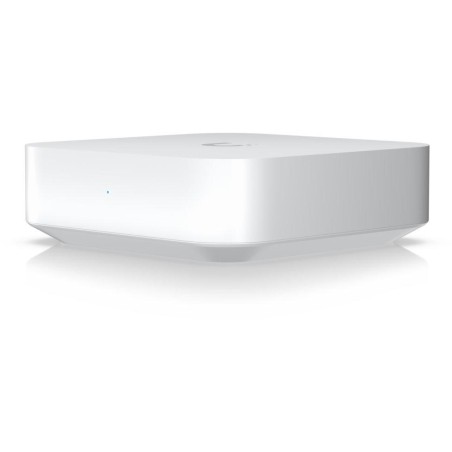

Ubiquiti UniFi Gateway Lite - Router, IDS/IPS throughput 1Gbps, 2x GbE

Ubiquiti Next-generation Gateway Lite

A compact and powerful UniFi gateway with a full set of advanced routing and security features. The UXG Lite offers 10x the routing performance of the USG.

The UXG Lite is equipped with a WAN port (GbE RJ-45) and a LAN port (GbE RJ-45) , providing high-speed connectivity needed to support most bandwidth-intensive applications. It also stands out as a compact network security solution that offers a complete set of threat mitigation features , including intrusion detection and prevention systems (IDS/IPS), content filtering, and VLAN-based traffic segmentation. To manage and utilize all configuration options, the UniFi UXG routers must be adapted to the UniFi Cloud Key Gen2/Gen2 Plus console, UniFi Cloud Key Enterprise , or the UniFi Network Server software, which can be downloaded from the official Ubiquiti download website.

Features and benefits:

•

• Dual-Core ARM Cortex-A53 (1 GHz), 1 GB DDR3L RAM

• 1× WAN port (GbE RJ-45), 1× LAN port (GbE RJ-45), Bluetooth 5.1

• Compact design & dimensions 9.8 × 9.8 × 3 cm

• USB-C power supply (DC 5 V, max. 3 A), power adapter included

• Up to 10x faster routing performance than USG (tested with IPS/IDS, QoS, and smart queues)

• QoS with UniFi Wi-Fi Access Points, QoS by Application, Domain, and Country

• Identifying the application and device type

• WireGuard, L2TP and OpenVPN server

• Management via UniFi Network App : version 8.0.7 or later


Next-generation security:

•

• Application-specific firewall rules

• Signature-based IPS/IDS threat detection

• Content, country, domain, and ad filtering

• Traffic segmentation based on VLAN/subnets

• Fully stateful firewall


BASIC SPECIFICATIONS

Ports: 2× RJ-45, 1× USB-C (power)

Processor: ARM Cortex-A53 (2-core, 1 GHz)

Memory size: 1GB DDR3L RAM

PoE support: no

Dimensions: 98 × 98 × 30 mm

Weight: 320g

Manual (assembly instructions):

https://dl.ui.com/qig/uxg-lite
