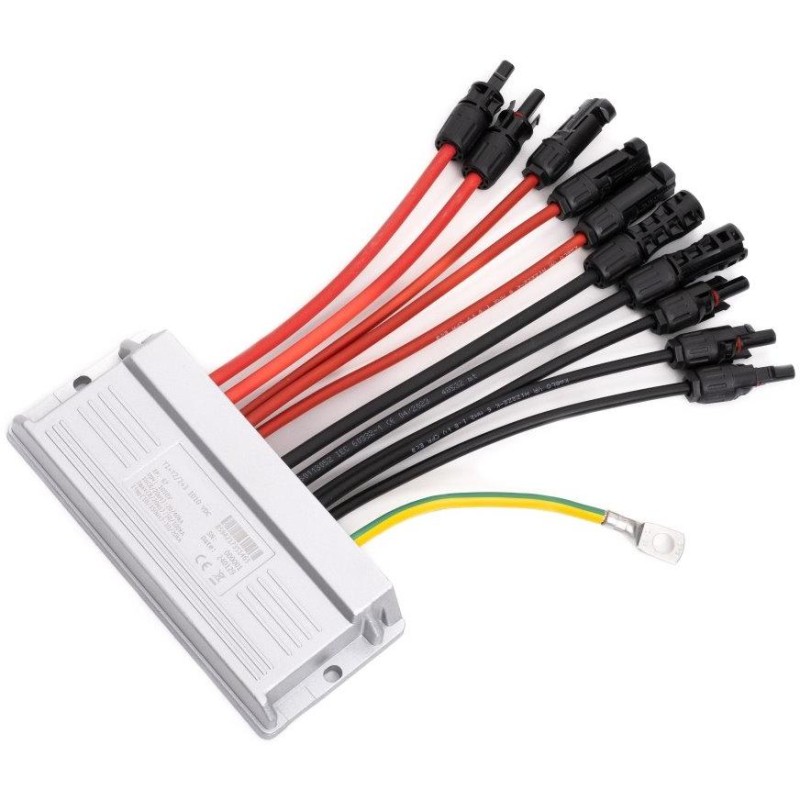

Xtend Solarmi OSPD23
Surge arrester designed for the protection of photovoltaic devices . The actual construction, taking into account weather conditions and the method of installation, is made of aluminum alloy (the same material as the supporting profiles of PV panels - there is no risk of electrochemical corrosion) with hermetically sealed internal circuits in polyurethane material with internal flame-retardant filler.
The unit is designed as a through-type unit for easy implementation into a string - both poles of the string are connected to the unit and both of them also exit. The connection is made with classic MC4 connectors (with an integrated fuse at the input) and wires with a cross-section of 6 mm 2 (in some versions even 10 mm 2 ) with double insulation and color coding.
The connection of the PE conductor or the connection with the LPS elements is solved on the box chassis itself using an M10 (M8) screw through a pressed-in eye on a stranded conductor >16 mm 2 or directly via a T-screw by connecting to the supporting structure/LPS downpipe, or in combination.
The SPD unit itself is of class T1 + T2 , and due to the above-standard leakage resistance (12/25 kA), it can also be applied to centers with less than 4 down conductors (according to ČSN EN 51643-32).
Note:
Due to the specific design and location, it is necessary to measure the residual current at max. operating voltage after each interruption of the integrated fuse (due to the action of the SPD). If it is higher than the maximum value specified by the manufacturer, the entire SPD module must be replaced. An indication of a fuse interruption is the absence of voltage on the string circuit after the SPD module.
Features:
- Suitable for DC network
- Short-circuit withstand I SCPV : 10 kA
- Voltage protection level at In Up a : < 2.3 kV
- Aluminum alloy housing
- Classification according to ČSN EN 61643-11 ed. 2 and ČSN EN 61643-31, T1+T2
BASIC SPECIFICATIONS
Design: Type 2: 3+2 (3 pairs 6 mm 2 input + 2 pairs 10 mm 2 output)
Max. operating voltage between L+ and L-: 1010 V DC
Rated load current: 30 A
Connection wires: MC4, length: 25 cm, cross section: 6/10 mm 2
Response time t a : < 25 ns
Protection: IP67
Dimensions: 234 × 126 × 34.4 mm
Operating temperature: -40 to +85 °C
