Planet IGT-815AT converter 1x 100/1000Base-T, 1x SFP 100/1000-X, ESD+EFT, IP30, -40 to 75°C, small size

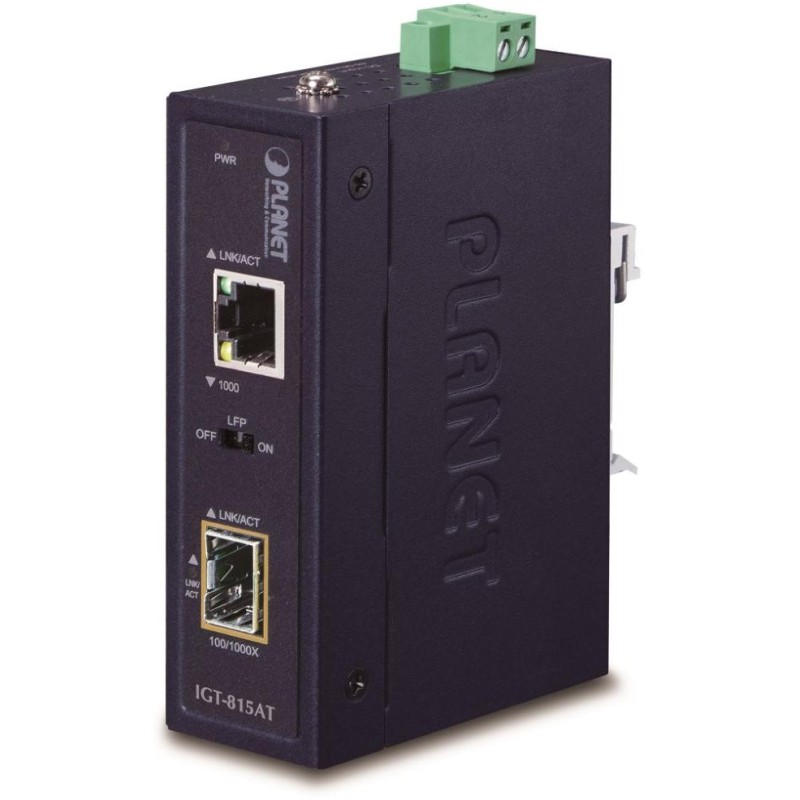

PLANET IGT-815AT

Industrial converter for easy transition between metallic and optical lines ( 100/1000Base-X to 10/100/1000Base-T ). The converter is designed for industrial and FTTH/FTTC/FTTB applications.

Power supply in the range of 9-48 V DC , IP30 protection, metal housing, extended operating temperature -40 to +75 °C.

Surge ESD protection up to ±6 kV (±8 kV air). DIN rail or wall mounting.

Industrial Ethernet devices are designed for harsh operating conditions with a wide range of operating temperatures and frequent shocks. The converter is easily installed on a standard DIN rail or directly on the wall and allows the deployment of well-known Ethernet technology even in industrial environments. It is also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications of the FTTH type).

BASIC SPECIFICATIONS

Physical properties:

Ports: 1 x RJ-45 10/100/1000Base-T, 1 x SFP 1000Base-SX/LX/BX

Transmission support: Frame 9KB

Design: DIN rail, wall-mounted

OAM support: no

Power supply: 9-48V DC power supply, total power consumption up to 1.98 W (power supply not included)

Protection: ESD air up to 8 kV, contact up to 6 kV, reverse polarity protection

Operating temperature: -40 to 75°C

Dimensions: 104 x 70 x 30 mm

Weight: 251g

Can be installed in a chassis: no

Industrial properties:

The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts

the device is vibration resistant (IEC-60068-2-6)

The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)

electrical safety according to CE EN-60950

EMC Electronic Compatibility (EMI):

ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment

EMC immunity requirements (EMS):

ČSN EN 55024 A1:2015 - Information technology equipment

ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment

ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD

ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields

ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT

ČSN EN 61000-4-5:2014 - Surge and overvoltage

ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields

ČSN EN 61000-4-8:2009 - Power frequency magnetic field

ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
