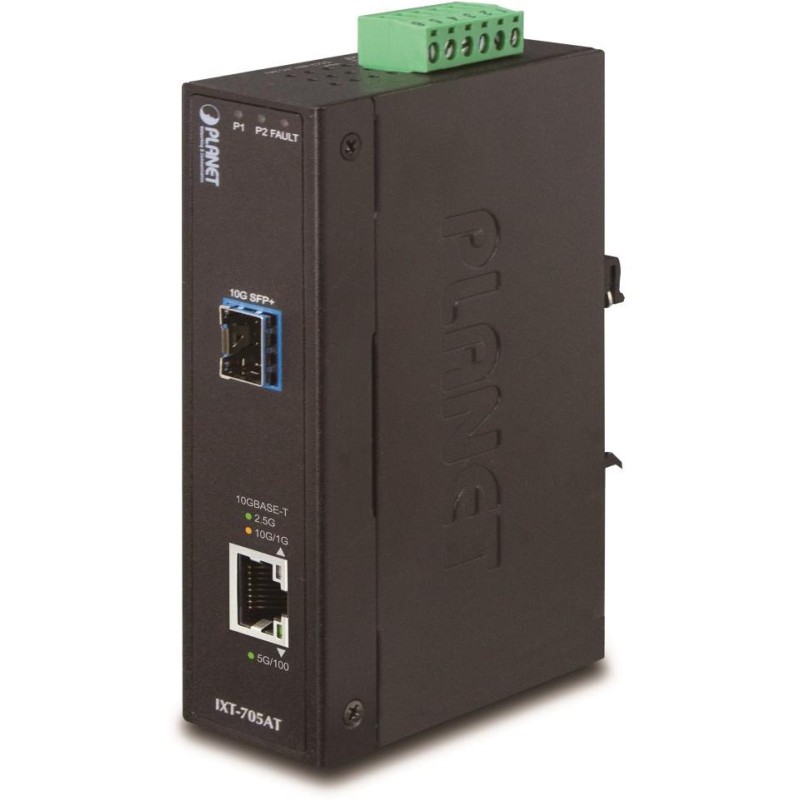

PLANET IXT-705AT
10Gb Ethernet converter 100/1000/2500/5000/10000Base-T (RJ-45) / miniGBIC (SFP+) 10GBase-SR/LR.
Industrial design -40~75°C, shockproof, IP30 protection, ESD protection, DIN installation, alarm output, AC 24V or DC 12~48V power supply.
Industrial Ethernet devices are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. The converter is easily installed on a standard DIN rail or directly on the wall and allows the deployment of well-known Ethernet technology even in industrial environments. It is also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications of the FTTH type).
BASIC SPECIFICATIONS
Physical properties:
Ports: 1x RJ-45 10000/5000/2500/1000/100 BASE-T, 1x SFP+ 10GBASE-SR/LR
Transmission support: JumboFrame 16K
Design: DIN rail, wall-mounted
OAM support: no
Power supply: AC 24V or DC 12-48V, connection possible from two different sources (not included)
Protection: ESD up to 6KV DC, reverse polarity protection, power connection on the terminal block, location on the bottom panel (does not interfere with wall mounting)
Operating temperature: -40 to 75°C
Dimensions: 135 x 87 x 32 mm
Weight: 458g
Can be installed in a chassis: no
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
