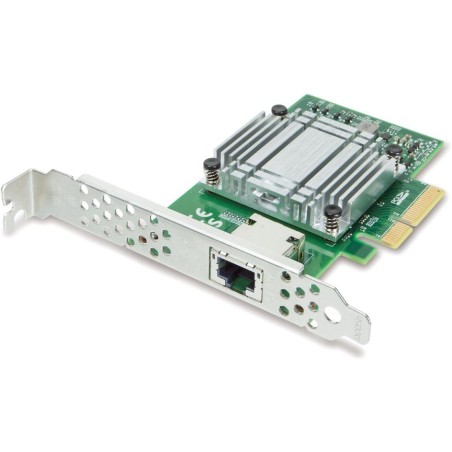

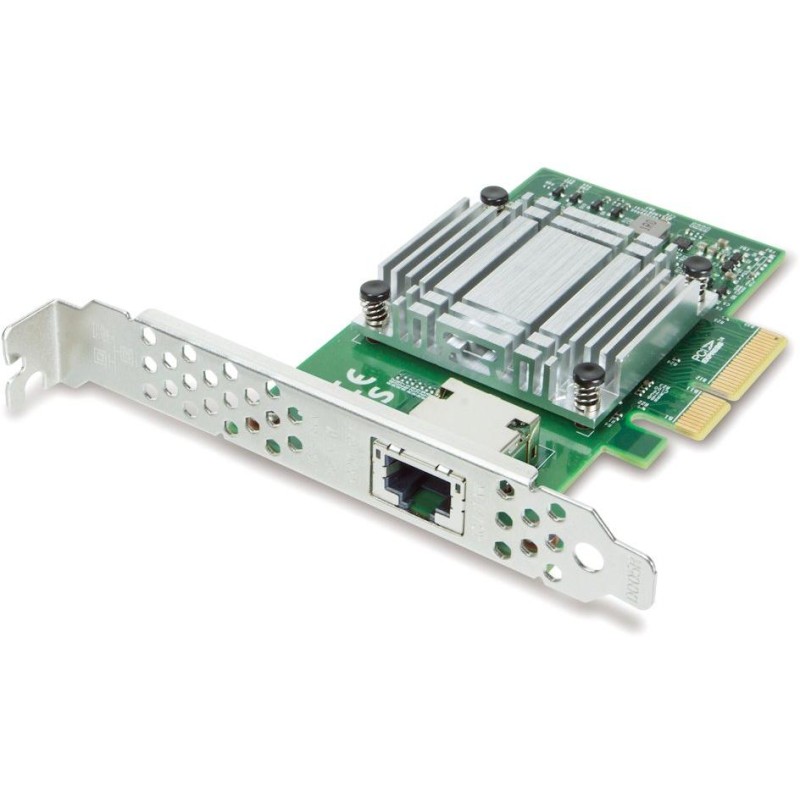

PLANET ENW-9803 v3
10G Base-T PCI Express Server Adapter with support for multi-gigabit speeds of 10Gb/5Gb/2.5Gb/1Gb/100Mb , metallic RJ-45 connector, IEEE 802.3an and PCI Express x4 .
10Gigabit adapter installable into PCI Express x4 allowing immediate implementation of 10Gbps transmissions . It is used for installation in servers with a requirement for maximum availability and the ability to fully service clients on the network or the Internet. PCI Express 3.0 interface provides higher throughput and reliability for full use of 10Gigabit potential.
The new version (v3) of the network adapter is built on the Marvell AQC107 chipset, which brings significantly lower power consumption and better performance compared to the previous generation. The implementation of the IEEE 802.3az Energy Efficient Ethernet standard ensures optimal power consumption while maintaining maximum performance, as the adapter automatically adapts its performance to current network traffic.
Advanced networking features such as VLAN tagging support, PXE boot , and iSCSI/FCoE boot make this adapter an ideal choice for virtualized environments and cloud solutions. With support for jumbo frames up to 16K and built-in hardware-accelerated TCP/IP checksum offloading, the adapter is ready to handle even the most demanding network applications with minimal server CPU load.
BASIC SPECIFICATIONS
Features:
- 1× 10GBase-T, RJ-45, IEEE 802.3an with support for multi-gigabit speeds
- Automatic speed detection 10G/5G/2.5G/1G/100Mbps
- Use with Cat5e to Cat7 cabling depending on the required speed
- Flow Control support (IEEE 802.3x)
- Support for Virtual LAN (VLAN) tag detection and processing (802.1Q)
- Hardware acceleration of TCP/IP protocol, TCP/UDP Checksum offloading
- 16K Jumbo Frame support
- IEEE 802.3az support for energy efficiency – Energy Efficient Ethernet (EEE)
- PXE/iSCSI/FCoE boot support
Interface: PCI-E 3.0 x4
Chipset: Marvell AQC107
Speed: 10Gb / 5Gb / 2.5Gb / 1Gb / 100Mb
Ports: 1× RJ-45
Power consumption (typical): 4.7 W (16 BTU)
Working temperature: 0 to +50 °C
Dimensions: 120 × 109 × 69 mm
Weight: 82g
Supported environments:
Windows Server 2008R2-2019R2 64bit
Windows 7/8/10 32/64bit
Linux (kernel 2.6.32.x to 5.x)
Linux CentOS/RHEL (6.x to 7.x)
Ubuntu (14.x to 16.x)
VMware ESX/ESXi 4.x/5.x/6.x
Recommended cabling:
| 10G specifications | Interface | Transmission medium | Maximum distance | Total costs |
|---|
;padding:2px;">10G Base-T| RJ-45 | Cat6a/Cat7 UTP cable | 100 meters (328 ft) | Low |
| 10G Base-CX4 | CX4 | Copper cable | 15 meters (49 ft) | Medium |
| 10G Base-SR | SFP+ | Multimode fiber optic cable | 300 meters (984 ft) | High |
| 10G Base-LR | SFP+ | Singlemode fiber optic cable | 10 km (32808 ft) | High |
Manual (for version v3.0)
Manual (for version v2.1)
Other downloads
Main changes compared to v2:
New Marvell AQC107 chipset (replaces Tehuti TN4010)
Upgrade to PCI Express 3.0 (from 2.0)
Higher Jumbo Frame support - up to 16K (versus 9K)
Added support for Windows Server 2016/2019
Extended support for Linux distributions
Added iSCSI/FCoE boot support
IEEE 802.3az support for energy efficiency
Enhanced multi-gigabit support with automatic speed detection
