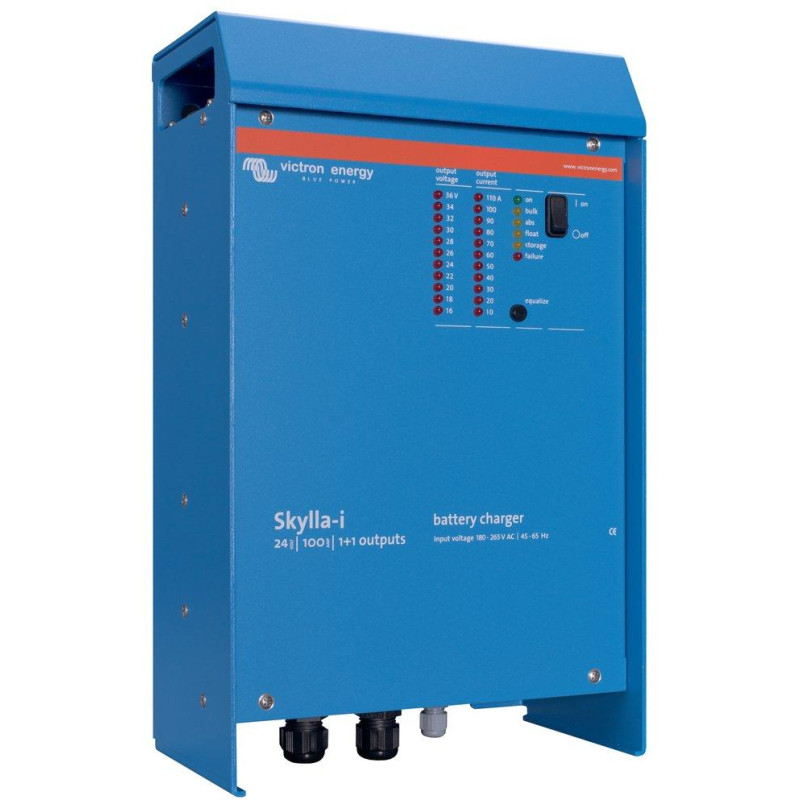

Victron Skylla-i battery charger 24V/100A (1+1)

Professional battery charger with advanced adaptive charging algorithm and two isolated outputs.

The Skylla-i 24 V (1+1) charger has two isolated outputs for charging two battery blocks. The second output, limited to approximately 4 A and with a slightly lower output voltage, is intended for charging the starter battery.

The rugged construction of the charger, featuring an epoxy powder-coated aluminum housing with a drip cover, withstands harsh environmental conditions including heat, humidity, and salt air. The circuit boards are protected by an acrylic coating for maximum corrosion resistance.

Flexible settings for different battery types

In addition to the CAN-bus interface (NMEA 2000), the charger is equipped with a rotary switch, DIP switches and potentiometers for adapting the charging algorithm to the respective battery and its conditions of use.

Intelligent charging technology

The Skylla-i charger uses several advanced technologies for optimal charging. Variable absorption time ensures the right amount of charge according to the battery's discharge state. BatterySafe mode automatically limits the voltage increase rate when the boiling voltage is reached, preventing damage to the battery. Storage mode reduces the float voltage to 2.2 V/cell with a weekly "refresh" of the battery to the absorption level.

Versatile use

Thanks to its perfectly stabilized output voltage, the Skylla-i can also be used as a power source when batteries or large decoupling capacitors are not available. The charger is suitable for a wide range of applications from marine installations to industrial systems where reliable charging and power supply are required.

BASIC SPECIFICATIONS

Model: Skylla-i 24/100 (1+1)

Input voltage (AC): 230 V (range 185–265 V)

Input voltage (DC): 180-350V

Frequency: 45–65 Hz

Power factor: 0.98

Charging voltage equalization: 28.8 V

Charging voltage maintenance: 27.6 V

Storage charging voltage: 26.4 V

Charging current: 100 A

Charging algorithm: 7-stage adaptive

Battery capacity: 500–1000 Ah

Communication port: VE.Can, 2× RJ-45, NMEA 2000 protocol

Operating temperature: -20 to +60 °C

Protection class: IP21

Dimensions: 405 × 250 × 150 mm

Weight: 7 kg
