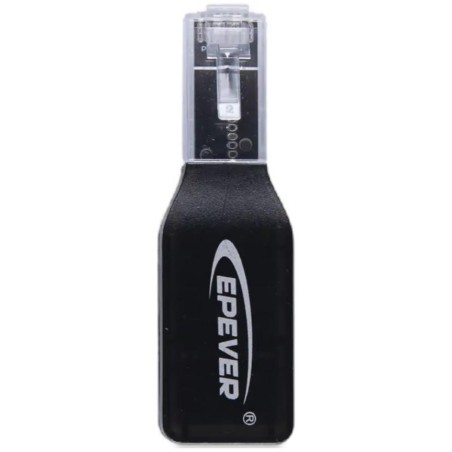

EPEVER Wi-Fi adapter 2.4G RJ45 D, wifi module

EPEVER WiFi 2.4G RJ45 D

An adapter designed to transfer real-time energy generation data from controllers, inverters and hybrid chargers to the EPEVER cloud server. It supports local wireless monitoring and parameter setting. It works in two working modes, offline monitoring and Wi-Fi sending data to the cloud.

•

• Quick Plug and Play installation

• Network communication Wi-Fi (2.4 GHz)

• Powered from the communication port (no external power required)

• Communication distance up to 20 m

• RS-485 interface (RJ-45 connector)


BASIC SPECIFICATIONS

Connection type: Wi-Fi 2.4 GHz

Antenna: internal

Interface: RS-485 (RJ-45 connector)

Supply voltage: 5V DC

Dimensions: 63 × 19 × 13.8 mm

Weight: 7.7g

Protection class: IP30

Operating temperature: -40°C to 85°C

Compatibility: XTRA, Triron, Tracer-AN(10-40A), Tracer-AN(50-100A), IPower-Plus, IPT, HPS-AL, HPS-AHL, UPower-Hi, Tracer-CPN
