EPEVER MT11 external display for DuoRacer solar MPPT controller

EPEVER MT11

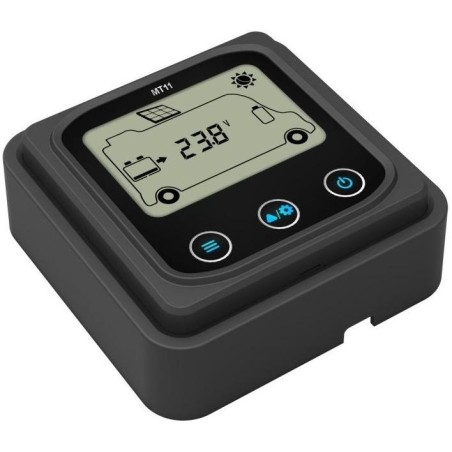

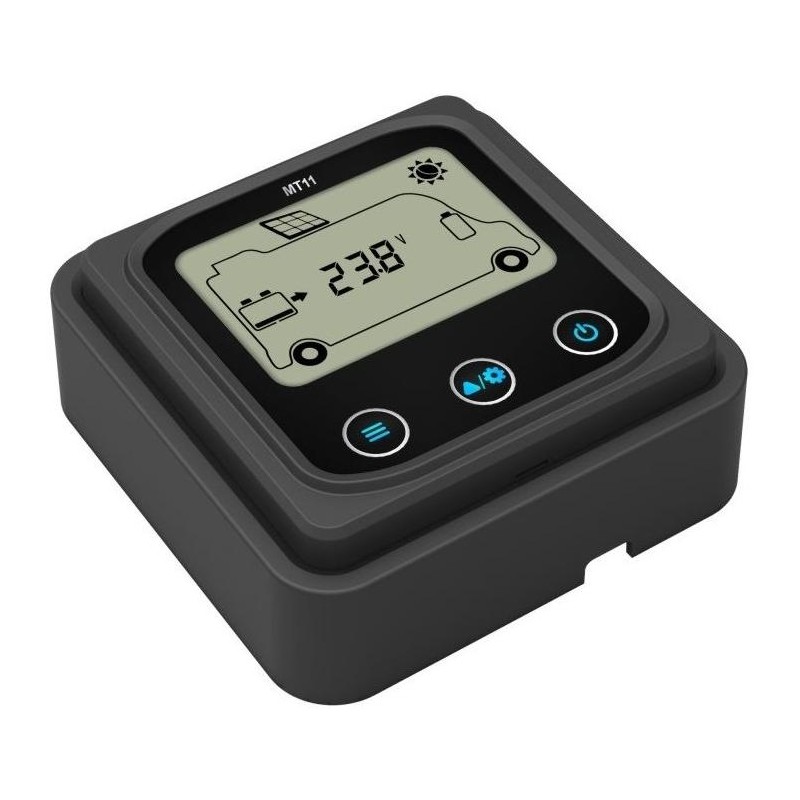

The MT series external display is an accessory that is compatible with DuoRacer series controllers . You can monitor the operating data and working status of the controller via the LCD. On the external display, you can browse the controller parameters, set the battery type and temperature unit, and delete the generated energy . It is suitable for RVs, caravans, boats, etc.

Function:

•

• Automatically identify and display the type, model and relevant parameter data of the controller.


• Display real-time operational data and working status of connected devices in digital, graphical and text form using the large-screen multi-function LCD display.


• Three touch buttons are easy and quick to operate.


• No external power supply is required. The charge controller powers the MT11.


• You can browse the controller parameters, set the battery type and temperature units, and delete the generated energy.


• View real-time failure information for connected devices.


• Remote communication using RS485 port.


• Including 1.5 m UTP communication cable



BASIC SPECIFICATIONS

Communication interface: RS485

Communication connector: 3.81-4P

Protection: IP20

Dimensions: 114 x 114 x 44.41 mm

Weight: 0.11 kg
