Ubiquiti Elevator Starter Kit - Elevator kit, 1x hub, 1x G2 reader, 2x PoE extenders, 10x access cards

Ubiquiti Elevator Starter Kit

The Ubiquiti Elevator Starter Kit connects to elevator readers via PoE and authorizes user floor selection . Supports up to 18 floors and 6 digital inputs for elevator car status and emergency situations. The kit meets CE, FCC, IC, UL 294 and CAN/ULC-60839-11-1 (Class 1) certifications.

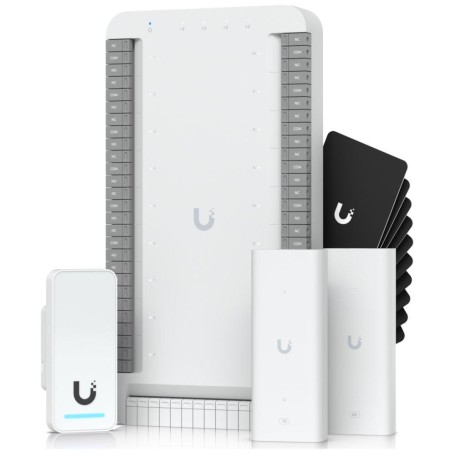

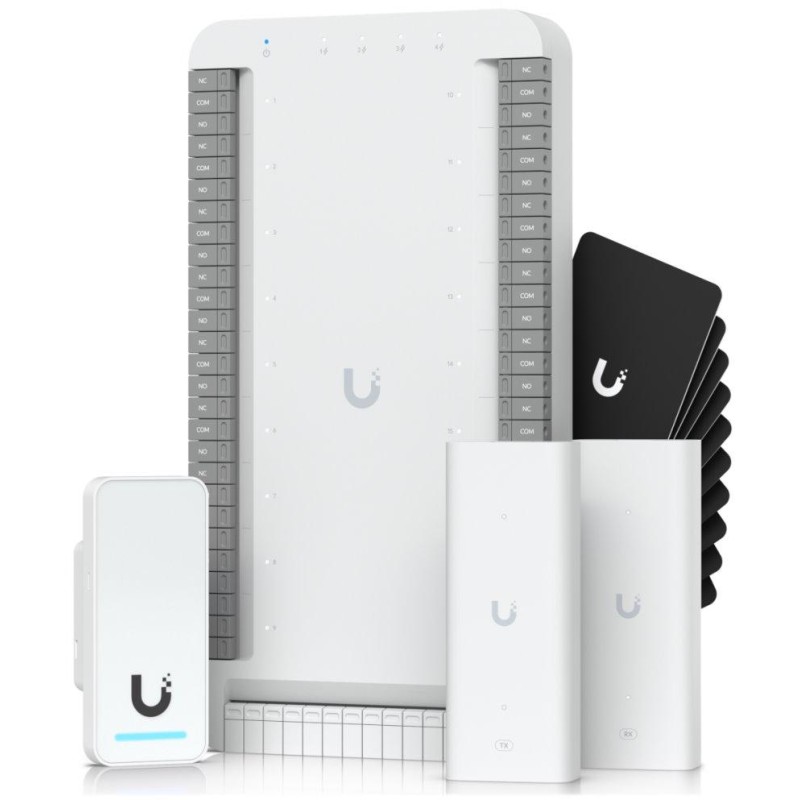

The set includes: 1× Elevator hub, 1× NFC reader, 2× PoE extenders and 10× access cards

BASIC SPECIFICATIONS

Elevator hub

Interfaces: 4× PoE output 10/100/1000 Mbps RJ-45 (for readers and cameras), 1× PoE++ input 10/100/1000 Mbps RJ-45 (for management and power), 18× relay (for 18 floors), 1× emergency input (for fire alarm), 5× elevator position input, 6× elevator status input (up, down, stop, full, door open/closed)

ESD/EMP protection: air ±8 kV, contact ±4 kV

PoE input: 1× PoE++, DC 50 V, 1.2 A

PoE output: 4x PoE, DC 50 V, max. 42 W

Working temperature: -10 to +40 °C

Weight: 537g

Dimensions: 244.7 x 129.3 x 33.6 mm

NFC Reader - UA-G2

Interface: 1× 10/100 Mbps RJ-45, Bluetooth 4.1, NFC (13.56 MHz, Mifare)

NFC standard: ISO 14443A, 14443B, 15693

NFC technology:

PoE extender - UACC-Extender-2Wire-Tx/Rx (PoE input)

Interface: 1× 10/100 Mbps RJ-45, 1× 10/100 Mbps RJ-45 (for management)

ESD/EMP protection: air ±8 kV, contact ±4 kV

PoE input: 1× PoE++, DC 50 V, 1.2 A

LED indication: yes, white

Working temperature: -10 to +40 °C

Weight: 77g

Dimensions: 105 × 40 × 25 mm

PoE extender - UACC-Extender-2Wire-Tx/Rx (PoE output)

Interface: 1× 10/100 Mbps RJ-45, 1× 10/100 Mbps RJ-45 (for management)

ESD/EMP protection: air ±8 kV, contact ±4 kV

PoE output: 1× PoE+, DC 48 V, 0.72 A

LED indication: yes, white

Working temperature: -10 to +40 °C

Weight: 79g

Dimensions: 105 × 40 × 25 mm

NFC access card - UA-Card

Card type: NFC (13.56 MHz, Mifare)

Format: ISO 7810 ID-1

NFC technology:

Manual (assembly instructions):
