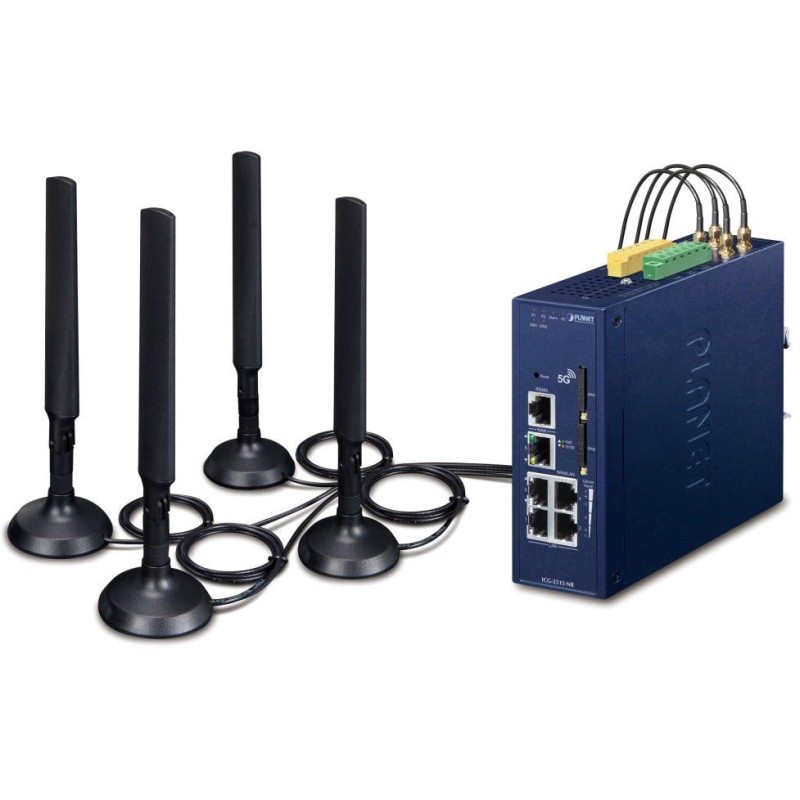

Planet dual 5G/LTE security gateway, 2x WAN + 3x LAN, DI/DO, GPS, DIN, IP30, -40/+75°C, dual 9-54VDC

PLANET ICG-2515-NR

Industrial 5G/LTE security gateway for IoT/M2M infrastructure (machine-to-machine), 3x LAN, 1x LAN/WAN, 1x WAN), 1x serial port RJ-45 (DB9), 2x SIM slot (redundant) , 2x digital input DI, 2x digital output DO, 4x 5G NR antenna (SMA connectors, 5 dBi gain, 3G/4G/LTE/5G mobile networks), download up to 2.4 Gbps, upload up to 500 Mbps, GNSS (GPS L1+L5, GLONASS, BeiDou, Galileo, QZSS).

Web/SNMP v1/v2c/v3 management, SSH v2, TLS v1.2, support for UNI-NMS and PLANET Smart Discovery utility and Planet CloudViewer App , router with firewall, VPN support, dual WAN , RADIUS Server/Client, IP30 protection, operating temperature -40 to +75 °C , DIN rail mounting, DC 9-54 V power supply.

Industrial Ethernet 5G/LTE gateway for possible application within IoT (Internet of Things) networks, M2M (machine to machine) industrial automation, but also for regular internet connection in mobile devices. The gateway can become a robust element of your customer data network infrastructure.

The basic communication interface is the 5G NR (NSA/SA) interface with backward support for previous generation networks (4G/LTE/3G), which you can use for places with poor signal coverage, when moving or roaming.

In addition to the gateway function, this device is also equipped with a wired router function via RJ-45 connectors. Thanks to this, the device is also ready for use with a classic wired connection if this installation is necessary.

Planet industrial elements are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology in industrial environments.

Key features:

•

• Global 5G NR (NSA/SA) and 4G LTE network with dual SIM slots for mobile network redundancy & Siemens SIMCom 4G/5G hardware modem

• Dual WAN - failover and load balancing

• Automatic failover between 5G NR and Gigabit WAN

• 2x DI/DO and 1x serial port (RS-485) for Modbus applications

• GNSS localization in space with GPS/GLONASS/BeiDou/Galileo/QZSS support

• High Availability (HA)

• SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)

• Stateful Packet Inspection (SPI) Firewall + Content Filtering

• Advanced DoS/DDOS attack blocking

• Port range routing

• AP controller - access interface (Captive Portal) including RADIUS - management of up to 16 AP Wi-Fi units without the need to purchase a license

• Support for Planet NMS control systems and CloudViewer application

• Operating temperature -45 to +75 °C, DIN rail design, fanless

• Possible router monitoring withthe CloudViewer mobile application


Norms and standards:

•

• EN 301 908 - IMT cellular networks and access to them

• EN 303 413 - Satellite Earth Stations and Systems (SES)

• EN 301 489 - Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) of radio equipment and services

• EN 62311:2008 - Assessment of equipment in relation to human exposure limits to electromagnetic fields (0 Hz - 300 GHz)

• EN IEC 62368-1:2020/A11:2020 - Audio/videoeo, information and communication technology equipment


BASIC SPECIFICATIONS

Physical properties:

Ports: 3x GbE RJ-45 LAN, 1x GbE RJ-45 LAN/WAN, 1x GbE RJ-45 WAN, 1x RJ-45 serial port, 2x SIM slot, 2x digital input DI, 2x digital output DO

Mobile connection: 5G-NR (New radio), 2x SIM slot, 4x SMA connector

High Availability: Automatic failover between 5G NR and Gigabit WAN

MODBUS support: yes

Memory: 16MB Flash, 32GB eMMC, 512MB RAM

IP protocol version: IPv4, IPv6

Design: DIN rail, wall-mounted

Power supply: 2x DC 9-54 V, total power consumption up to 7 W (power supply not included), power inputs are mutually backed up

LED indication of mobile signal status and strength: yes


Operating temperature: -40 to +75 °C, humidity up to 90%

Dimensions: 135 x 135 x 50 mm

Weight: 0.8 kg

Supported LTE bands and frequencies:

Administration functions:

Management: Web, SNMP v1/v2c/v3, SSH v2, TLS v1.2, UNI-NMS controller support, Smart Discovery utility and Planet CloudViewer application

Network Security: Cybersecurity, Firewall, SPI, DoS/DDoS attack blocking, content filtering, MAC/IP filter, NAT ALGs, SYN/ICMP Flooding blocking

Routing: static, dynamic, OSPF

Wi-Fi support: controller for Planet Wi-Fi AP units, Captive portal, built-in hostpot function for Wi-Fi clients

DHCP server: yes

Radius server/client: yes

VPN support: max. 60 tunnels, max 60 Mbps, hybrid, IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
