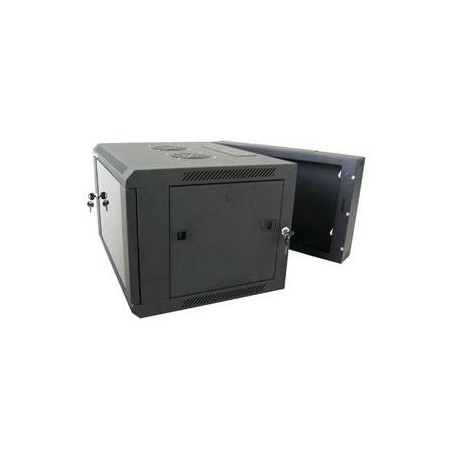

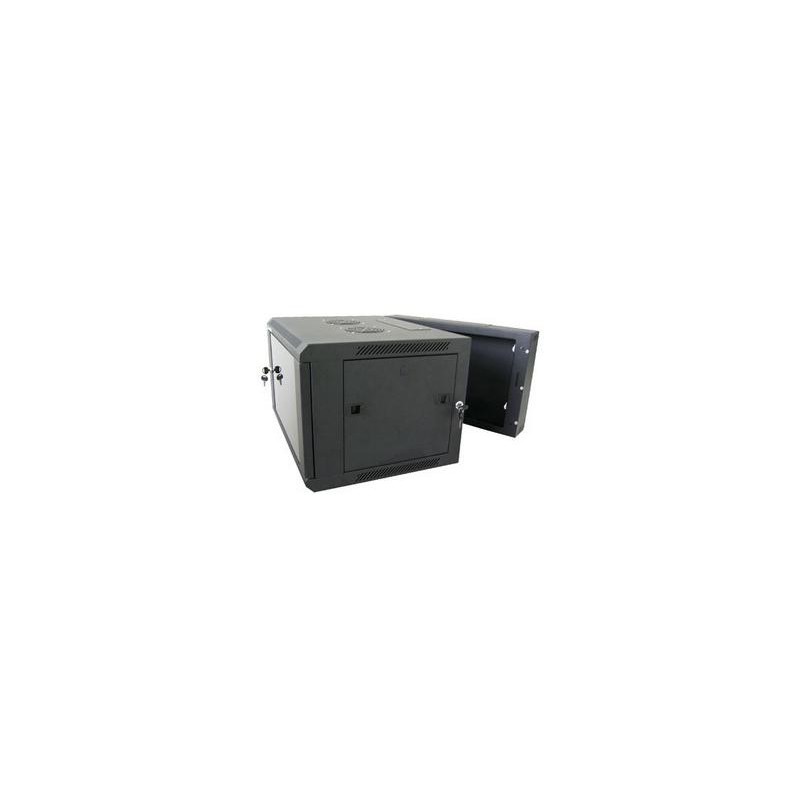

XtendLan WD-12U-65-BLACK
The distribution cabinet is suitable for installing data and telecommunications equipment.
Universal two-piece cabinets are designed for wall mounting. The cabinets are excellently crafted and have an elegant appearance.
They are made of rolled steel, the supporting parts are made of 1.5 mm thick steel, the rest of them are made of 1.2 mm steel. The construction allows a static load of 60 kg.
The front door is lockable. The side panels are equipped with latches and can be removed by hand. They can be equipped with a lock that is installed in a prepared hole.
Comes with a mounting kit.
BASIC SPECIFICATIONS
Rack format: 19"
Capacity: 12U
Degree of protection: IP20
Dimensions: 600 x 550 x 635 mm (width x depth x height)
Design:
door - safety tempered glass, smoked, lockable
back cover - full
side cover - full, easily removable, can be equipped with a lock
top cover - perforated, with positions for two fans
Color: black, RAL9004
Other features
- The distribution cabinet includes four sliding vertical rails with perforations for attaching installed devices.
- Fasteners (cage nuts, washers, screws) are included with the switchboard
- There is a grounding point for connecting the grounding wire at the bottom of the switchboard.
- There are cable entries in the upper and lower parts of the rear part and the upper part of the front part and are covered with blanking plugs.
- meets international standard IEC 60297-2
Diagram:
click to enlarge...
Shipping dimensions: 67x62x70 cm
Assembly instructions (cz)
The cabinet is excellently crafted. The smoke-colored glass doors are equipped with a lock.
The rear door opening is equipped with a lock. The side panels are easily removable and can also be equipped with a lock.
View without side panels. Vertical mounting rails can be moved as needed:
Fixed pivoting rear door hinges. The front of the cabinet can be removed from the hinges if necessary.
There is a grounding point at the bottom of the cabinet,
There are holes for two fans with blanking plugs in the top cover,
accessories include horizontal rails,
/>
and mounting kit.
