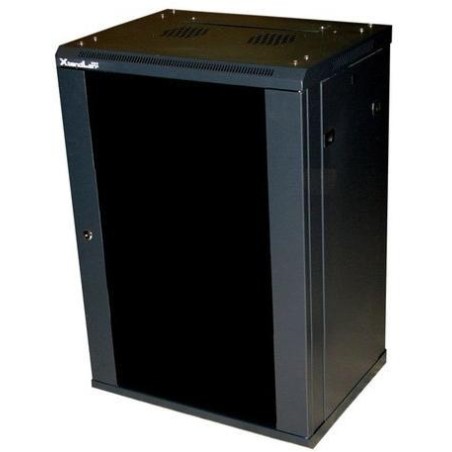

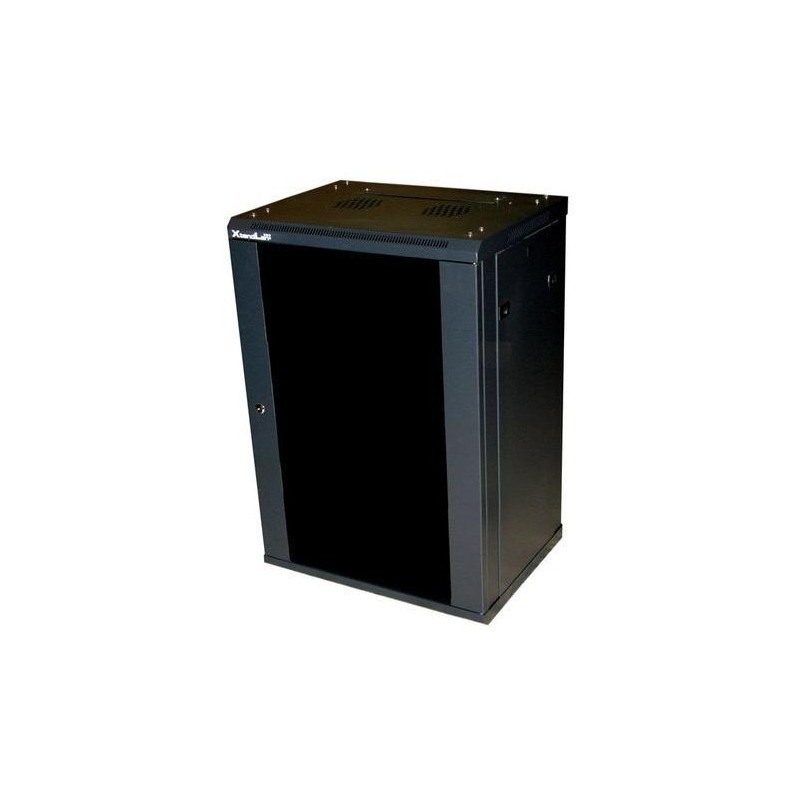

XtendLan WS-15U-64-BLACK-P
The distribution cabinet is suitable for installing data and telecommunications equipment.
Universal one-piece cabinets are designed for wall mounting. The cabinets are excellently crafted and have an elegant appearance.
Their attachment is easy thanks to the included patented mounting panel.
They are made of rolled steel, the supporting parts are made of 1.5 mm thick steel, the rest of them are made of 1.2 mm steel sheet. The construction allows a static load of 60 kg.
The front door is lockable. The side panels are equipped with latches and can be removed by hand. They can be equipped with a lock that is installed in a prepared hole.
Comes with a mounting kit.
BASIC SPECIFICATIONS
Rack format: 19"
Capacity: 15U
Degree of protection: IP20
Dimensions: 600 x 450 x 769 mm (width x depth x height)
Design:
door - tempered safety glass, reversible opening direction, lockable
back cover - full
side cover - full, easily removable, can be equipped with a lock
top cover - perforated, with positions for two fans
Color: black, RAL9004
Other features
- The distribution cabinet includes four sliding vertical rails with perforations for attaching installed devices.
- Fasteners (cage nuts, washers, screws) are included with the switchboard
- There is a grounding point for connecting the grounding wire at the bottom of the switchboard.
- There are cable penetrations in the upper and lower parts of the cabinet and they are covered with blanking plugs.
- meets the international standard IEC 60297-2
Diagram:
click to enlarge
Transport dimensions: 67 x 52 x 83 cm
Assembly instructions (cz)
