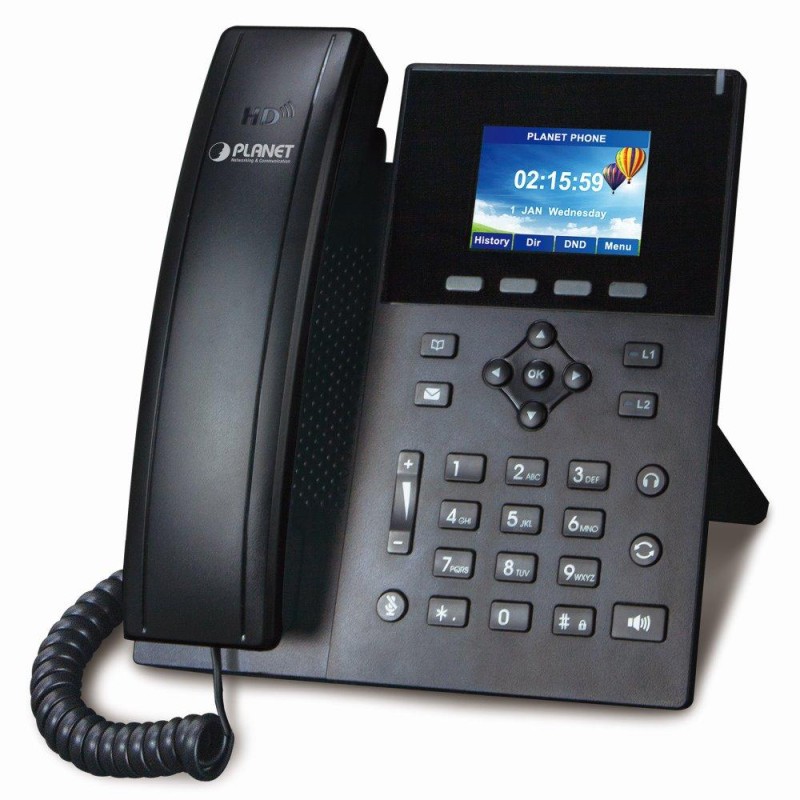

PLANET VIP-1260PT
VoIP SIP phone for managers or operators, 2.8" color LCD display, support for HD audio codec G.722, 6 SIP accounts.
Voice processing: AEC, VAD, CNG, BNE, NR, PLC, 3-way conference. Desktop design, 5 V power supply, or PoE 802.3af.
The desktop IP phone, designed for ease of use, is equipped with a two-port gigabit switch for easy application on an office desk with the option of powering the device using PoE 802.3af technology.
The device does not lack telephone functions such as direct function management, call forwarding and holding, call transfer, call waiting, remote call pickup, caller ID display, speed dial, three-way conference, last number speed dial, incoming call indication.
BASIC SPECIFICATIONS
Physical properties
Interface: 2x RJ-45 10/100/1000 Mbps, 1x RJ-9
Display: 2.8" LCD, color, 320 x 240 px
Control buttons: 4x software-definable, 6x functional, 5x navigation, 12x standard dial, 3x volume control, 1x Handsfree button
Power supply: 5 V DC, or IEEE 802.3af PoE, power supply not included, power consumption up to 5.7 W
Mounting: tabletop installation
Operating temperature: 0 to 45 °C
Dimensions: 210 x 180 x 80 mm
Weight: 700g
Device features:
- dual Gigabit and IEEE 802.3af/at PoE compatible
- 3-way conference
- option: In-band, out-of-band DTMF Relay (RFC 2833), SIP INFO
- white/black list of participants
- hold / mute / divert / transfer / call waiting
- advanced voice processing technologies: AEC-adaptive buffer for delay compensation, VAD-voice activity detection, CNG-noise level control, BNE-background noise suppression, NR-noise reduction, PLC-elimination of data packet drops
- Multilingual support via web user interface and LCD
Management: Web, Auto Provisioning support FTP, TFTP, HTTP, HTTPS, DHCP, OPT66, SIP PNP, TR069
Protocols: SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP (basic unencryption), OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR069, AES128, AES256
IP configuration: static, DHCP, PPPoE
EMC/EMI compliance: FCC, CE, RoHS
Phonebook: up to 1000 entries, support for XML and LDAP lists on the server
Audio codecs: G.711a/u, G.722, Opus, G.726-32K, G.729AB, iLBC
