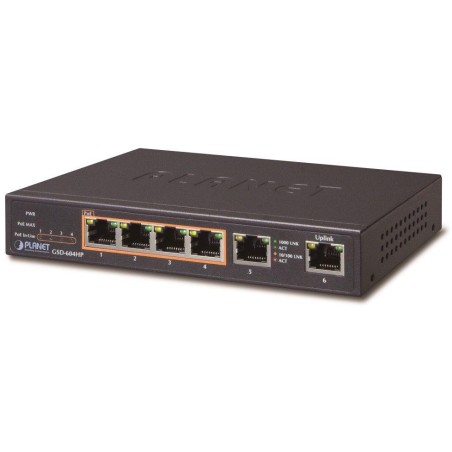

PLANET GSD-604HP
Gigabit switch with 6 1000 Base-T ports, including 4 ports with 802.3at PoE injector , power output up to 55 W.
Port VLAN , loop protection, PoE Extend mode (up to 250 m at 10 Mbps) . External power supply, metal design, fanless.
Gigabit 6-port switch with 4 PoE (power over ethernet) ports for centralized power supply of devices via Ethernet such as IP cameras, WiFi elements or VOIP phones. The device is suitable for installation in home or office spaces, and is also suitable for applications in local distribution cabinets. Port VLAN ensures separate traffic between powered ports, ports without PoE serve as uplink and for combined traffic to connect NVR or NAS.
BASIC SPECIFICATIONS
Physical properties:
Ports: 2x RJ-45 10/100/1000 Base-T, 4x GbE RJ-45 IEEE 802.3at/af PoE
Memory: 8k MAC addresses
Throughput: 12 Gbps bus, operational 8.92 Mpps
Transmission support: JumboFrame 9 KB
Design: desktop
Power supply: external power supply DC 54 V, own power consumption <5 W
Protection: no
Operating temperature: 0 to +50 °C
Dimensions: 160 x 92.5 x 28 mm
Weight: 374g
POE function:
Total power output: 55 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 4x up to 30 W
Power supply type: End-span
