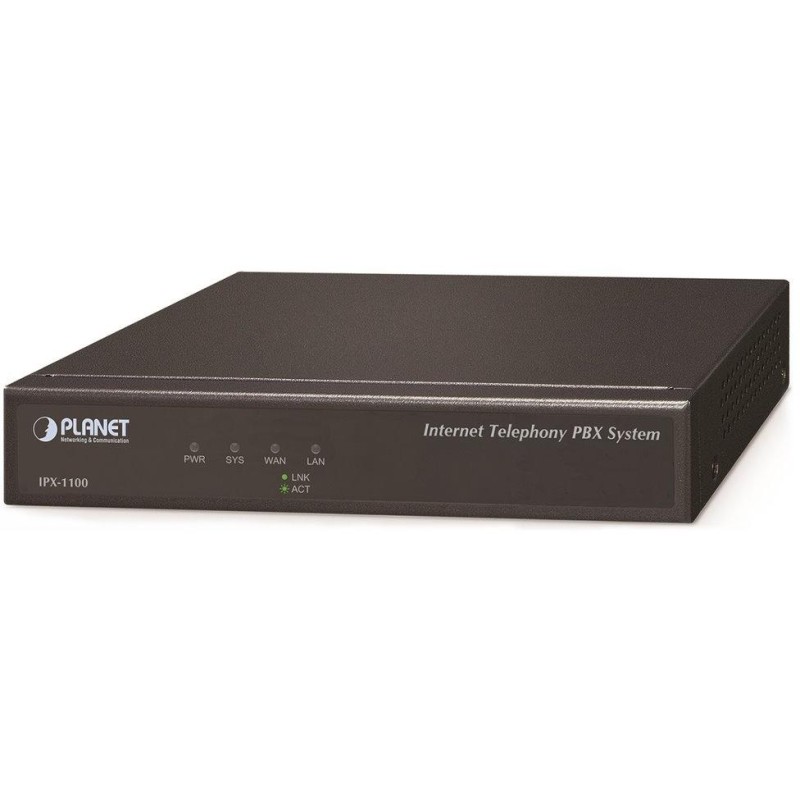

PLANET IPX-1100
Telephone exchange for VoIP, SIP Proxy for 100 lines and 50 simultaneous calls.
Web/SNMP management, VPN server/client, TCP IPv4/IPv6 support, SIP and IAX2 standards, operation with encrypted TLS/SRTP protocols, IVR voice doorman, call routing, answering machine (up to 400 hours), voicemail (up to 400 hours), DID dialing, call recording, conference calls, video calls, BLF line status, FAX server, Skype for SIP function.
Planet IPX-1100 is a telephone system designed and optimized for use in small and medium-sized businesses. The device supports registration of up to 100 users/devices , is easy to install and manage. The system offers functions such as centralized call management, automatic attendant, voice conferencing, voice access to external PSTN, GSM or VoIP telephone networks, call recording or voice mail. It supports Internet telephone operators, allowing you to completely remove and replace the connection to classic telephone services.
The exchange is a VPN server or client for a more secure connection between subscribers, and integrates a FAX server for the possible reception and sending of messages exclusively electronically.
Standard SIP VoIP telephones from any manufacturer can be registered to the exchange. To expand the possibilities of integration into the analog telephone network, it can be supplemented with supported voice gateways.
Pay special attention to securing the IPX switchboard against access from the Internet. It is not even necessary and it is advisable not to expose it to a public IP address - rather, behind a firewall and NAT. In the firewall, then allow only traffic to the SIP registration server, and prohibit other traffic.
If you do not use international calls, have your VoIP provider disable outgoing calls or limit them to the maximum amount called per day - as protection against abuse of calls by an attacker.
BASIC SPECIFICATIONS
Hardware:
- 50 simultaneous VoIP calls, 100 registered devices
- 1× 10/100BASE-T RJ-45 for WAN, connecting to a broadband modem or WAN router
- 1× 10/100BASE-T RJ-45 for LAN, connection to LAN switch
- 1× Console port (Baud rate: 115200)
- 1× USB port for external storage device (up to 2 TB), file system format: FAT16, FAT32, EXTFAT, NTFS, EXT3, EXT4
- Dimensions: 167.6 × 115 × 28.8 mm
- Power supply: external DC 12 V/1 A adapter
- Operating temperature: 0 to +40 °C
- EMC/EMI: CE, FCC Class B, RoHS
- New web interface for management
PBX functions:
- Group call routing
- Possibility to put a call on hold during a call and pick it up and continue from any other device (Call parking)
- IVR, automatic voice doorman, interactive voice menu, controlled according to set working hours
- Conference, possibility of calling a telephone conference, system of inviting participants by voice recording, up to 30 conference participants
- Playing any inserted recording while waiting (e.g. music, commercials, etc.)
- Detailed records of calls made, export CDR
- Controlling the control panel settings from the device
- User control of line settings (forwarding, blocking, alarm, etc.)
- DID (Direct Inward Dialing Number) with possible pre-dialing when calling internal numbers
- List of prohibited numbers (Black List)
- Busy Line Field (BLF) signaling for operator devices
- Virtual FAX server for receiving and sending faxes
- Voicemail to email so you don't miss any important messages
- Recording voice and voicemail to an external USB drive
- Asterisk compatible IP PBX
Functions for IP connections (VoIP)
- Standards: SIP 2.0 (RFC3261), IAX2 and Lync Server compatible
- Audio codecs: G.711-Ulaw, G.711-Alaw, G.722, G.726, G.729, GSM, SPEEX, Opus, AMR, AMR-WB
- Video codecs: H.261, H.263, H.263+, H.264, VP8
- SIP registration and operation with encrypted UDP/TCP/TLS/SRTP protocols
- Support for fax transmission using T.38 codec
- SIP Proxy, NAT support, connection to other SIP proxies (trunk)
- Auto Provision: possibility of automatic configuration of connected VoIP devices
- Call routing based on prefixes and wildcards, blocked and allowed prefixes
- Grouping users into logical groups defining the routing of their calls
IP and security features:
- DHCP server, DDNS client (PLANET DDNS and Easy DDNS)
- SNMP v1/v2, IEEE802.1Q VLAN
- IPv4/IPv6 support, TR069
- Manually configure the static route table
- Troubleshooting (Ping and Traceroute)
- VPN server and VPN client
- SIP Register DoS Attack Mitigation
- Prevents Abort Invite DoS attacks
- Prevents SSH Login DoS attacks
- Firewall and improved HTTPS connection
- Geo-IP (security policy based on the geographical location of the IP address)
- Data backup and recovery
Comparison table:
Sample of the new web interface:
