EZVIZ Smart Home Intercom HP7 2-Family Kit-EU

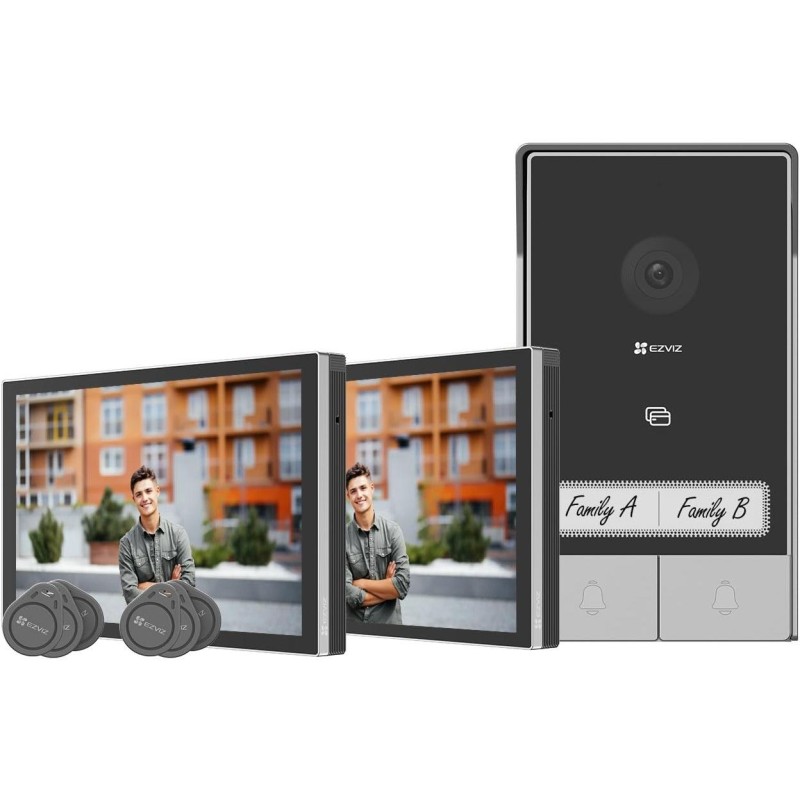

Door station (intercom) set with RFID chip reader, two 7" apartment monitors and accessories.

The door station is equipped with two doorbells and a camera with a resolution of 2048 × 1296 px . The camera's viewing angle is 162° diagonally. The H.265 codec is used for image transmission. An integrated microphone, speaker and RFID access chip reader are standard. The doorbell is connected via 2 wires. The 7" touch monitor can be connected via Wi-Fi and has a microSD slot . Remote control via app, surface mounting , resistance to adverse influences according to IP65 certification. Smart functions include human figure detection , the ability to generate a temporary visitor code or an optional voice change function to maintain privacy during communication.

Package contents: 2× monitor, 2× wall mount, 2× power adapter, 2× drilling template for monitor, 1× door intercom with weatherproof cover, 1× drilling template for intercom, 1× screwdriver, 6× RFID chip, 3× set of screws, 2× name tag, 2× cables with connectors, 2× DC 24V power connector cable

BASIC SPECIFICATIONS

Door station

Camera: 1/2.7" progressive scan CMOS
Lens : fixed, angle of view 162° diagonally
Resolution : 2048 × 1296 at 15 fps
IR illumination : yes, up to 6 m
RFID card reader : yes, 6 chips in the package
Interface : 2× 2-wire for monitor, 1× non-powered contact for gate, 1× contact for lock
Audio : integrated microphone and speaker
Number of bells : 2
Power supply : from monitor
Dimensions : 161 × 87 × 20 mm
Color : black–silver

Home monitor

Display: 7" touch screen, resolution 1024 × 600 px
Interface : 1× 2-wire for door station, 1× microSD card slot (max. 512 GB)
Network : Wi-Fi 802.11b/g/n/ac
Video compression : H.265/H.264
Audio : integrated microphone and speakereductor
Power supply : DC 24 V/ 1 A (power supply included)
Dimensions : 180 × 111 × 15 mm
Weight : 855 g
Color : black
