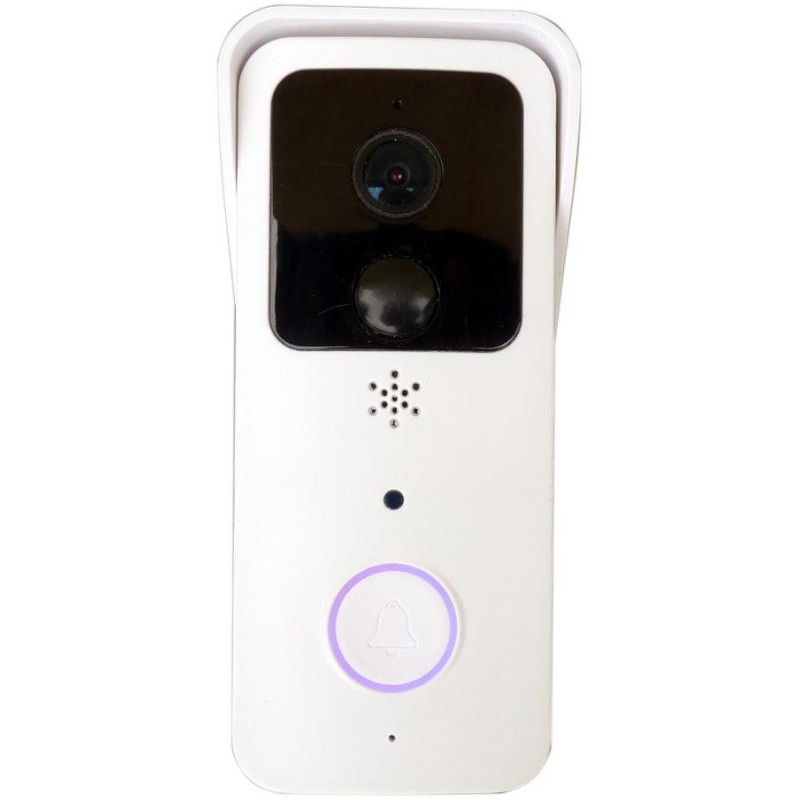

XtendLan ZVN01 Tuya Smart Wi-Fi Doorbell
Wireless smart doorbell with camera and separate bell inside. A visitor who rings your doorbell will appear in your Tuya Smart app and you can have two-way communication with them. If you don't have time for them at the moment, you will see their photo and the time of their visit in the visitor list.
The doorbell has automatic infrared illumination, so it is not necessary for the entrance to be illuminated for the purpose of recording visitors. It is also equipped with a motion sensor and can record anyone who is interested in your house without ringing the bell. The doorbell can also record independently. If you insert a micro SD card, a 10-second video will be automatically created for each visitor, which you can conveniently play from the application.
The external camera unit can be powered by alternating current (AC) and direct current (DC) in the range of 7–24 V. You can use the existing doorbell wiring or solar power for power supply. However, the package also includes an AC/DC power adapter . The device has a built-in battery and is fully functional even in the event of a power outage for many days.
The device also rings a wireless doorbell, which you can place anywhere indoors, simply by plugging it into an electrical outlet. You can adjust its volume and select a melody. The package also includes a wall mount. The outdoor unit is attached to it with a special screw, so it is not easy to steal the device.
In addition to Tuya Smart, it also supports Amazon Echo (formerly Alexa voice assistant) and Google Home home assistant. For configuration and control, you need a mobile phone or tablet with Android or iOS operating system. Another advantage is the support of Wi-Fi technology in both 2.4 GHz and 5 GHz bands.
Key features
- It will ring your mobile and record if you don't answer the call
- Two-way audio
- Video in Full HD resolution 1920 × 1080 px
- It lights up at night using IR LEDs, no extra light is needed in the input for video
- Sends an alert if someone is detected in front of the camera's PIR sensor
- Charges its batteries from anything in the 7-24V range
- You can look at the camera at any time without anyone ringing the bell
- The external doorbell is plugged into a 230 V AC socket and plays one of the selected melodies.
- Dual Wi-Fi 2.4GHz and 5GHz
- The LED indicators on the device can be turned off in the settings so that it is not visible from the outside whether, for example, a person standing in front of the camera is being detected.
- Supports automatic recording to a micro SD card, the card is inserted into the device in the battery compartment, saved videos can be viewed in the application or copied from the card (.mp4 format)
- Siren – you can use the external unit to sound the horn
BASIC SPECIFICATIONS
Supported systems: Android, iOS
Compatibility: works with Tuya Smart enabled devices
Communication: Wi-Fi 2.4 GHz and 5 GHz, IEEE 802.11a/b/g/n for Internet connection and pairing
Wireless range: approx. 30 m
Resolution: Full HD, 1920 × 1080
Field of view: 130° horizontally, 155° diagonally
Infrared illumination (night vision): 6× LED, 850 nm, automatically activated, manual mode possible or permanently disabled
PIR: built-in infrared motion detection sensorbr />
Power supply: from the supplied 16 V DC power adapter, can be powered by both AC and DC in the range of 7–24 V (can also be used without power supply, only as a rechargeable device, a USB charging port is available for this purpose)
Battery cells: rechargeable, type 18650, 2 pcs, Li-ion 3.6 V with a capacity of 3350 mAh each, already inserted into the device (total capacity 24 Wh)
SD card: micro SD, supports 8-64 GB, not included, device works without it
Color: white
Water protection: IP54
Dimensions: outdoor unit including bracket 131 × 59 × 41 mm, wireless doorbell 70 × 51 × 31 mm
Weight: outdoor unit including bracket and batteries 242 g, wireless doorbell 55 g, power adapter 100 g
Delivery contents
- Outdoor unit with camera
- Wall mount unit
- Rechargeable battery type 18650 (2 pcs inserted into the device)
- Wireless doorbell unit
- AC/DC power adapter 16V/1A
- USB power adapter cable for fast charging
- Allen key for locking screw, locking screw, 2× dowel, 2× screw
