Xtend Solarmi Offgrid 12V60LFP

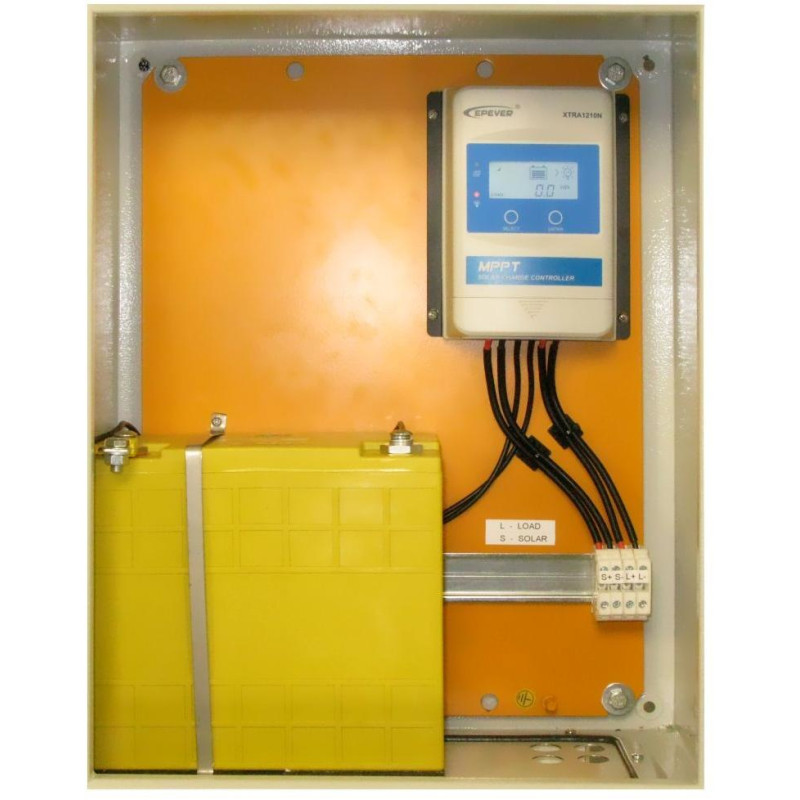

Outdoor waterproof box including pole mount . The box is equipped with everything needed to power the device in places without an electrical connection .
It is designed to power any 12 V device and for PoE powering outdoor elements such as IP cameras and LTE/Wi-Fi connections. The box is equipped with PG11 grommets.
The box can be supplemented with solar panels or a source powered by a street lamp. Consult us for a suitable source and solar panels.
The main advantage of this fitted box is the use of the highest quality battery technology - LiFePO4 , which allows for many years of trouble-free operation. LiFePO4 batteries have more than 10 times the service life compared to gel/AGM and other traction or backup batteries. In addition, frost has a much lower effect on its capacity than on lead-based batteries. The selected battery is suitable for backing up devices with a consumption of up to 20 W.
The EPsolar solar controller used also guarantees long service life in various weather conditions.
BASIC SPECIFICATIONS
Switchboard (WEH-502150)
Protection level: IP66
Dimensions: 500 × 500 × 210 mm
Door seal: polyurethane foam
Color: gray, RAL7032
Battery (Thundersky Winston WB-LP12V60AH)
Technology: Lithium (LiFeYPO4/LiFePO4)
Voltage: 12V
Capacity: 60Ah
Operating voltage range: 11.5-15 V
Operating temperature range: -25 to +80 °C
Dimensions: 225 × 208 × 125 mm
Weight: 11.5 kg
Dimensions: 282 × 230 × 125 mm
Controller (EPsolar XTRA1210N)
Rated system voltage: 12/24 V DC or auto
Battery input voltage range: 8-32V
Rated charge/discharge current: 10/10 A
Max. PV open circuit voltage: 100 V (92 V at approx. 25 °C)
MPPT efficiency: ≥ 99.5%
Dimensions: 175 × 143 × 48 mm
Weight: 0.57 kg
Unequipped switchboard:
