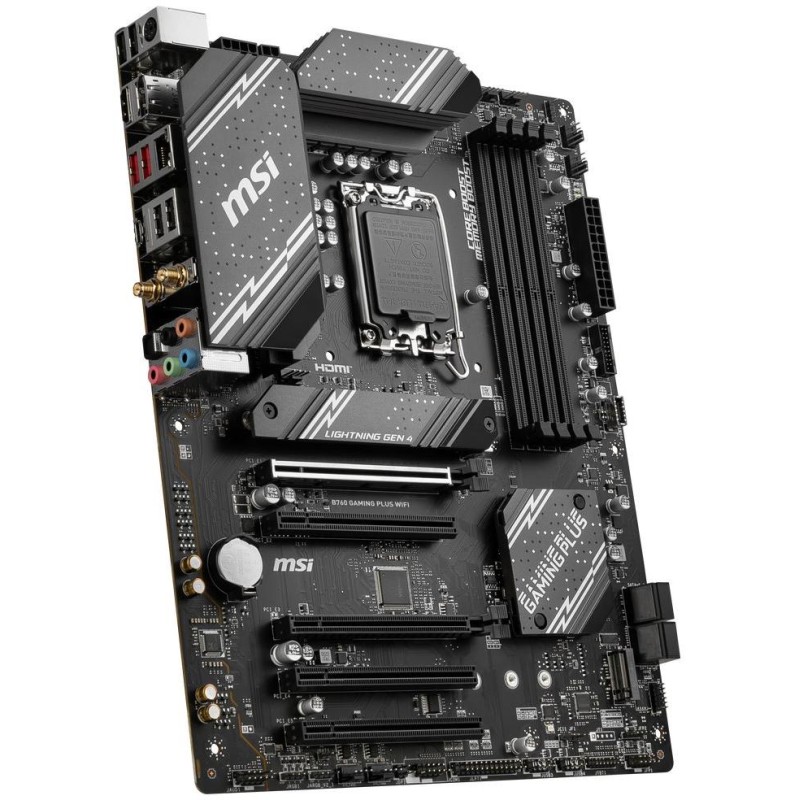

MSI B760 GAMING PLUS WIFI
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for 12th, 13th and 14th generation Intel Core/ Pentium Gold/ Celeron processors
LGA1700 socket
Chipset
Intel B760
Memory
4× DDR5 memory slots, support up to 192 GB
Support DDR5 6800+ (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz
Dual-channel memory architecture
Support non-ECC, unbuffered memory
Intel Extreme Memory Profile (XMP) 3.0 OC support
Slots
Intel CPU
1× PCIe 4.0 x16 slot
Intel B760 chipset
1× PCIe 4.0 x16 slot (supports x4 mode)
3× PCIe 3.0 x16 slot (supports x1 mode)
Graphic arts
1× HDMI 2.1 port, supporting max. resolution 4K at 60 Hz
1× DisplayPort 1.4 port, supporting max. resolution 4K at 60 Hz
Storage
Intel CPU
1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)
Intel B760 chipset
4× SATA 6Gb/s ports
1× M.2 slot, M key, for 2242/2260/2280 type units (SATA and PCIe 4.0 x4 mode)
RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives
USB
1× USB-C 3.2 Gen2 port on the back panel
8× USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)
2× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector
1× USB-C 3.2 Gen1 port available via internal USB connector
2× USB 3.2 Gen2 (USB 3.1) ports on the back panel
Audio
Realtek ALC897 Codec
7.1 channel High Definition Audio
S/PDIF output support
HIND
1× Realtek RTL8125BG 2.5Gigabit LAN controller
WLAN/Bluetooth
Intel Wi-Fi 6E
Wi-Fi 802.11a/b/g/n/ac/ax
Triple Band (2.4 GHz, 5 GHz, 6 GHz)
MU-MIMO TX/RX support
Data transfer speed up to 2.4 Gbps
Bluetooth 5.3
Internal connectors
1× 24pin ATX main power connector
1× 8pin 12V power connector
1× 4pin ATX 12V power connector
1× 4pin CPU fan connector
1× 4pin water cooling fan connector
5× 4-pin system fan connector
2× front panel connector
1× chassis opening detection connector
1× front panel audio connector
1× connector for TPM module (TPM 2.0 support)
1× parallel port connector
1× serial port connector
1× TBT connector (RTD3 support)
2× 3-pin connector ARGB_V2 LED
1× 4-pin RGB LED connector
1× Clear CMOS jumper
2x USB 2.0 connector (supports 4x USB 2.0 port)
1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)
1× USB-C 3.2 Gen1 connector
4× EZ Debug LEDs
2× M.2 slot, M Key
4× SATA 6Gb/s connector
Rear panel ports
1× PS/2 keyboard and mouse port
1× DisplayPort
1× HDMI
4× USB 2.0
2× USB 3.2 Gen2 (USB 3.1)
1× USB-C 3.2 Gen2 (USB 3.1)
1× RJ-45
2× Wi-Fi antenna connector
5× audio jacks
1× optical S/PDIF output
Dimensions
30.48 × 24.384 cm
ATX format
