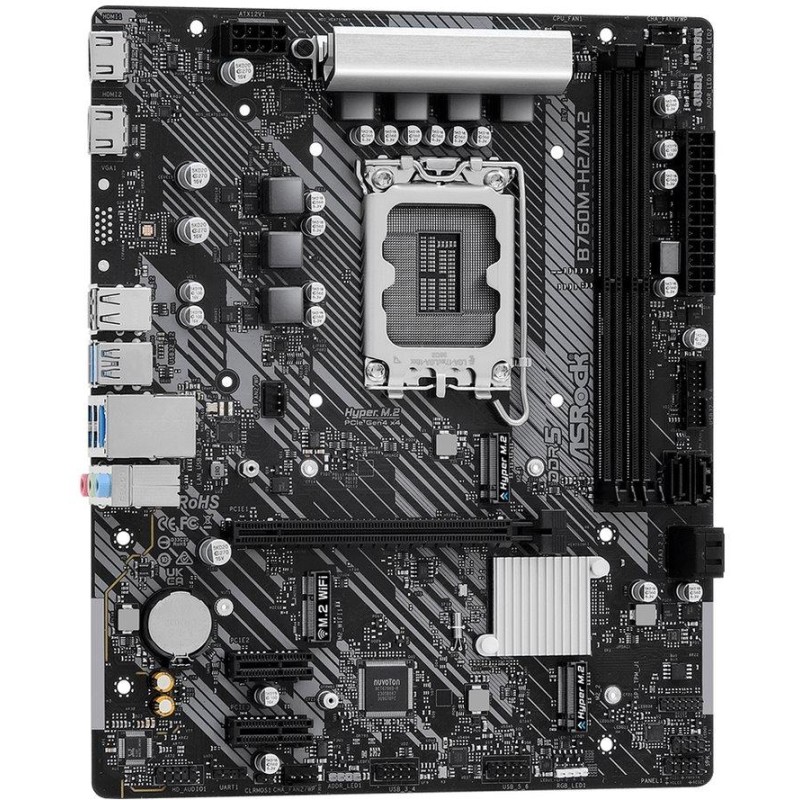

ASRock B760M-H2/M.2
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Supports 12th, 13th and 14th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)
Chipset
Intel B760
Memory
2× DDR5 memory slots, support up to 96 GB
DDR5 support up to 7200+ (OC) MHz
Dual-channel memory architecture
Support non-ECC, unbuffered memory
Intel Extreme Memory Profile (XMP) 3.0 support
Slots
Intel CPU
1× PCIe 4.0 x16 slot
Intel B760 chipset
2× PCIe 3.0 x1 slots
Graphic arts
2× HDMI 2.1 port, supporting max. resolution 4K at 60 Hz
Storage
Intel B760 chipset
1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
1× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)
4× SATA 6Gb/s ports
Intel Volume Management Device (VMD) support
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives
USB
6× USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 2 ports available via internal USB connector)
6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)
Audio
Realtek ALC897 Codec
7.1 channel High Definition Audio
HIND
1× Dragon RTL8125BG 2.5GbE LAN controller
Internal connectors
1× SPI TPM connector
1× speaker connector and intrusion detection
1× RGB LED strip connector
3× addressable RGB LED strip connector
1× 4pin CPU fan connector
1× 4pin CPU fan/water cooling fan connector
2× 4-pin chassis fan/water cooling fan connector
1× 24pin ATX main power connector
1× 8pin 12V power connector
1× front panel audio connector
2× USB 2.0 connector (supports 4× USB 2.0 port)
1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)
4× SATA 6Gb/s connector
2× Hyper M.2 slot, M Key
1× M.2 slot, E key for Wi-Fi module (not included)
Rear panel ports
2× Wi-Fi antenna connector
2× HDMI
4× USB 3.2 Gen1 (USB 3.0)
2× USB 2.0
1× RJ-45
3× audio jacks
Dimensions
24.4 × 20.1 cm
Micro ATX format
