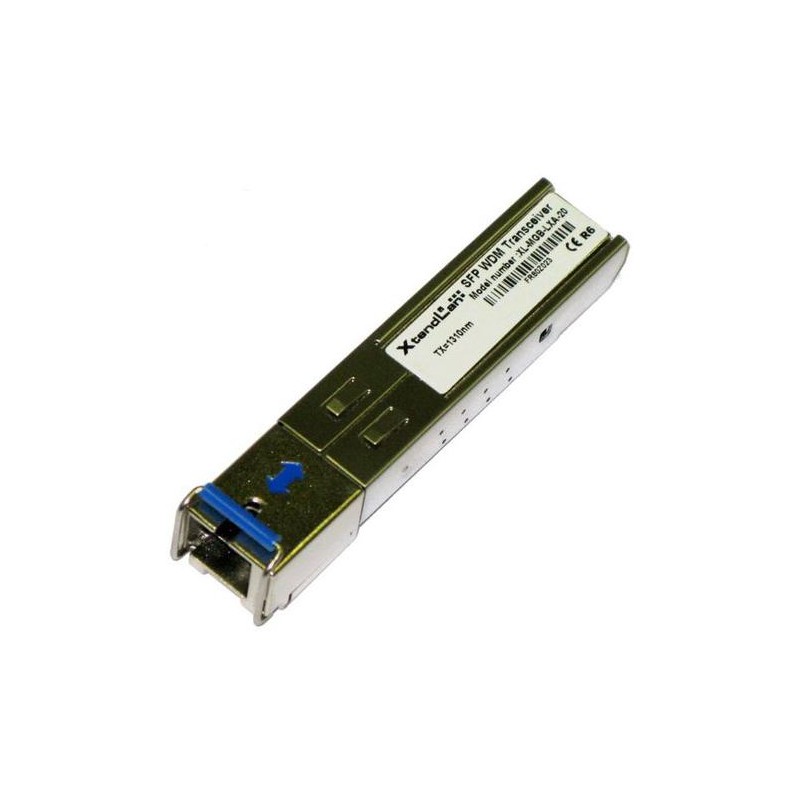

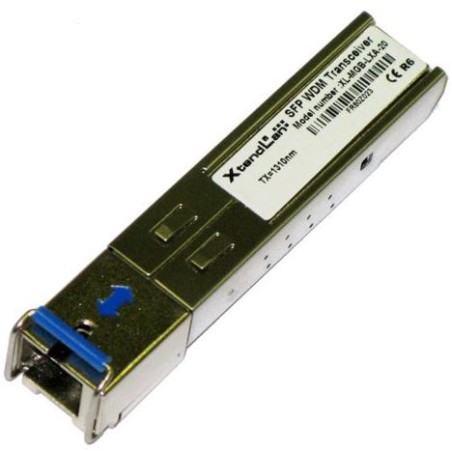

XtendLan MGB-LXAvH
Gigabit miniGBIC (SFP) module, 1000Base-LX, simplex SC connector, single-mode, can also be used for multimode, WDM. Range 20km. TX 1310nm/RX 1550nm. HP compatible.
Conversion Gigabit miniGBIC module in Small-Form-Pluggable (SFP) format. Standard 1000Base-LX, IEEE82.3z. Simplex SC connector, for single-mode fibers. Enables bidirectional communication over a single optical fiber.
Expands/converts ports of switches and converters with a miniGBIC (SFP) slot.
Can also be used for multimode, long-term proven applications on 50/125um fibers with a range of 1km without the use of mode condition cables.
For connection between WDM modules, it is necessary to combine the TX/RX wavelengths of the counterpart sides, pairs of modules are distinguished by a code representing side A or B.
BASIC SPECIFICATIONS
Module type: SFP
Connector: SC simplex
Wavelength (transmission/reception): 1310 nm / 1550 nm
Fiber type: Singlemode / Multimode
Connection range: up to 20 km
Transmission margin: 12 dB
Sensitivity: -21 dBm
Transmission speed: 1 Gbps
