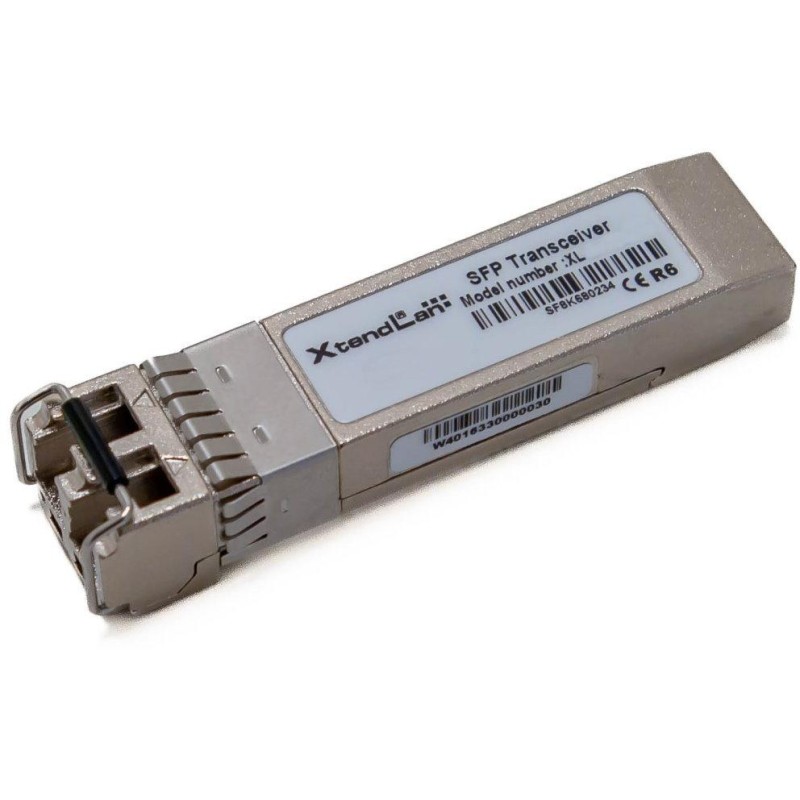

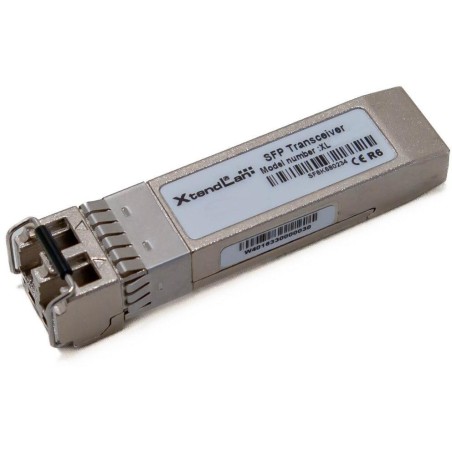

XtendLan XL-MGB-SXvH
Gigabit miniGBIC (SFP) module, 1000Base-SX, duplex LC connector, multimode. Max. 550 m on 50/125 um fiber. 250 m on 62.5/125 um fiber. Wavelength 850 nm. HP compatible.
Gigabit miniGBIC conversion module in Small-Form-Pluggable (SFP) format. Standard 1000Base-SX, IEEE82.3z. Duplex LC connector, for multimode fibers. Expands/converts ports of switches and converters with a miniGBIC (SFP) slot.
Equivalent to J4858C and X121. Recommended for HP 5130EI, 3800, 3100EI, 3100-48, 2920, 2620, 2530G, 2530, 1920, 1910, 1820, 1810, 1410 series.
BASIC SPECIFICATIONS
Module type: SFP
Connector: LC
Receiver operating wavelength: 850 nm (range 760 - 860 nm)
Fiber Type: Multi Mode
Connection range: up to 550 m
Transmission margin: 8 - 13 dB
Broadcasting:
VCSEL laser transmission
Transmitting power min. -9dBm, max. -4dBm
Transmitting wavelength: typically 850nm, spectral width (RMS) 0.85nm, min. 820nm, max. 860nm
Complies with ITU.T G.957 diagram
Income:
Reception in the range of 760-860nm
Sensitivity: -17dBm for BER<1e-12.
Transmission speed: 1.25 Gbaud
