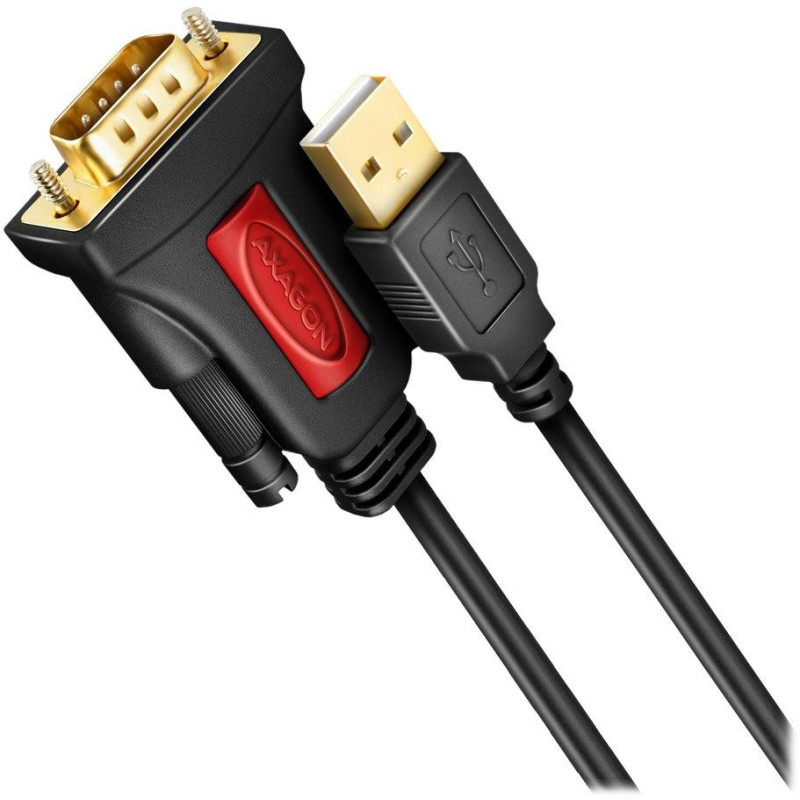

AXAGON active converter from USB-A (2.0) to RS-232 / ADS-1PSN / Prolific chip / 1.5m

AXAGON ADS-1PSN

Active USB to RS-232 serial port converter. The best possible compatibility is guaranteed by using the PL2303GT chip from Prolific. Thanks to the gold-plated connectors and contacts and the very durable adapter body, it is also suitable for industrial applications. The 1.5 m cable is double shielded for stable data transmission without interference.

Input:

USB interface 480 Mbps (USB 2.0), backward compatible with USB 1.1.

USB type A male connector (plug) located on a permanently attached 1.5m cable.

Exit:

1× serial RS-232 port with DB9 male connector (plug) integrated in the adapter body.

Transmission speed adjustable from 75 bit/s to 1000 kbit/s.

Compatible with 16C950 UART, backward compatible with 16C550, 16C650, 16C750 and 16C850.

Other features:

•

• Plug and Play support.

• FIFO buffer sending 768 B and receiving 256 B.

• Configurable Xon/Xoff flow control, hardware or none.

• Adjustable word length of 4, 5, 6, 7 or 8 bits.

• Adjustable parity (even, odd, none, mark, space), 1, 1.5 or 2 stop bits.

• Adjustable FIFO buffer usage: receive (1–14 b) and transmit (1–16 b).

• Adjustable port number COM1 to COM256.

• Power Management support.

• Adapter powered via USB bus (bus power) - no additional power supply is required.

• Gold-plated connectors and contacts ensure a reliable connection and, by preventing oxidation, ensure a long service life of the converter.

• Cable outer diameter 5 mm, double shielding.

• Original Prolific PL2303GT chipset with integrated serial line driver used.

• Adapter body dimensions 56 × 35 × 17 mm


BASIC SPECIFICATIONS

Connector 1: USB 2.0 (M)

Connector 2: RS-232 (DB9) (M)

Cable length: 1.5 m
