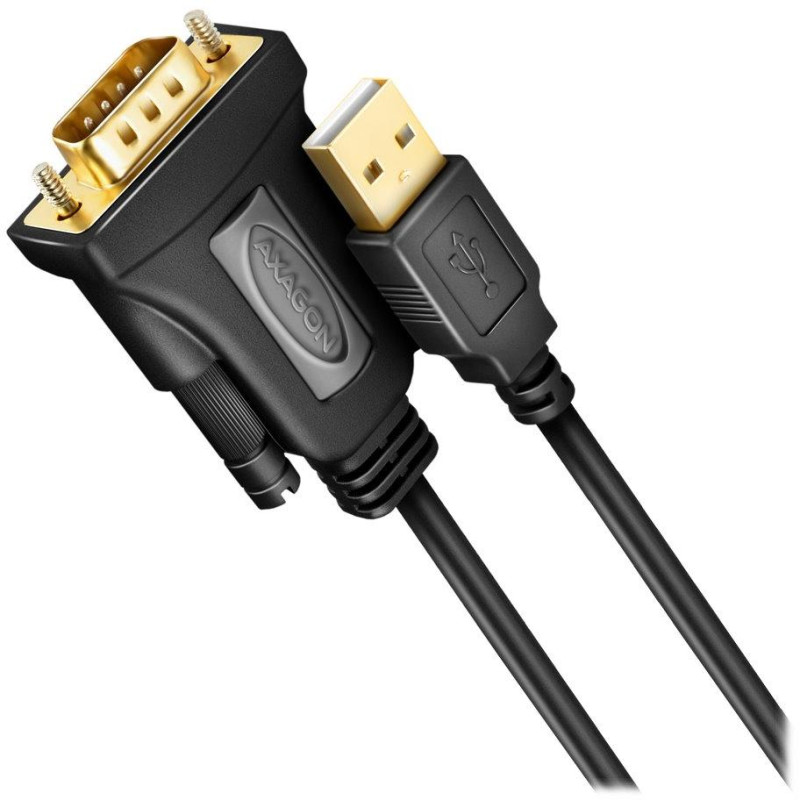

AXAGON active converter from USB-A (2.0) to RS-232 / ADS-1PQN / FTDI chip / 1.5m

AXAGON ADS-1PQN

Advanced active USB to RS-232 serial port converter. The best possible compatibility is guaranteed by using the FT232RL chip from FTDI. Thanks to the gold-plated connectors and contacts and the very durable body of the adapter, it is also suitable for industrial applications. The 1.5 m cable is double shielded for stable data transmission without interference.

Input:

USB interface 480 Mbps (USB 2.0), backward compatible with USB 1.1.

USB type A male connector (plug) located on a permanently attached 1.5m cable.

Exit:

1× serial RS-232 port with DB9 male connector (plug) integrated in the adapter body.

Transmission speed adjustable from 300 bit/s to 250 kbit/s.

Compatible with 16C950 UART, backward compatible with 16C550, 16C650, 16C750 and 16C850.

Other features:

•

• Plug and Play support.

• FIFO buffer sending 256 B and receiving 128 B.

• Configurable Xon/Xoff flow control, hardware or none.

• Adjustable word length of 7 or 8 bits.

• Adjustable parity (even, odd, none, mark, space), 1 or 2 stop bits.

• Adjustable FIFO buffer usage: receive (64–4096 b) and transmit (64–4096 b).

• Adjustable latency 1–255 ms.

• Adjustable timeout 0–10,000 ms (read) / 0–10,000 ms (write).

• Adjustable idle pause 1-3600 seconds.

• Possibility to activate additional functions: Serial Enumerator, Serial Printer, Cancel If Power Off, Event On Surprise Removal, Set RTS On Close, Disable Modem Ctrl At Startup, Enable Selective Suspend.

• Adjustable port number COM1 to COM256.

• Adapter powered via USB bus (bus power) - no additional power supply is required.

• Gold-plated connectors and contacts ensure a reliable connection and, by preventing oxidation, ensure a long service life of the converter.

• Cable outer diameter 5 mm, double shielding.

• Original FTDI FT232RL chip and TI TRS213l serial line driver used.

• Adapter body dimensions 56 × 35 × 17 mm


BASIC SPECIFICATIONS

Connector 1: USB 2.0 (M)

Connector 2: RS-232 (DB9) (M)

Cable length: 1.5 m
