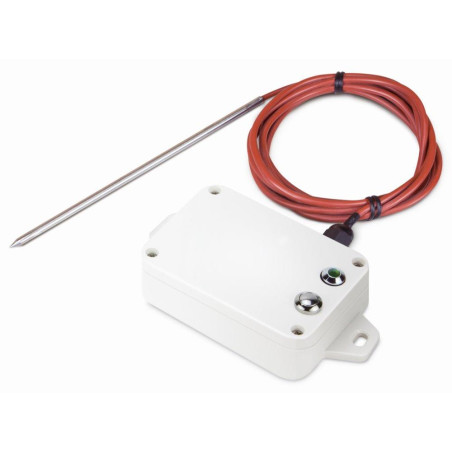

PLANET LS200-PT-868M
The PT1000 needle temperature sensor excels at monitoring temperatures from -70 to +200°C during storage and transport. It is housed in a robust IP65 housing, ensuring its durability. Using LoRaWAN technology, it provides real-time temperature data and offers accuracy for industries such as pharmaceuticals and logistics. The PT1000 needle probe is an important tool for maintaining product quality, regulatory compliance and optimizing supply chain efficiency.
The LoRaWAN LS100/LS200 series sensors are fully compatible with standard LoRaWAN gateways, such as the PLANET LCG-300 series, which support the LoRaWAN Class A protocol. They are ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor allows for seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems.
- Temperature sensor with PT1000 needle probe
- Protection standard IP65
- Compatible with LoRaWAN™ Class A
BASIC SPECIFICATIONS
Wireless transmission:
Technology: LoRaWAN
Frequency: 863–870 MHz
TX power: EU868 16 dBm
Rx Sensitivity:
-136 dBm (LoRa, dispersion factor = 12, data rate = 293 bps)
-121 dBm (FSK, frequency deviation = 5 kHz, data rate = 1.2 kbps)
Working mode: OTAA/ABP Class A
Physical properties:
Measuring range: –70 to +200 °C
Probe: diameter 5 mm, length 150 mm, 2 m cable
Power supply: 2× 3.6 V ER14505 AA batteries (not included)
Battery life: up to 5 years
Protection level: IP65
Operating temperature: –20 to +55 °C, humidity up to 90%
Dimensions: 112 × 88.19 × 32 mm
Weight: 141g
