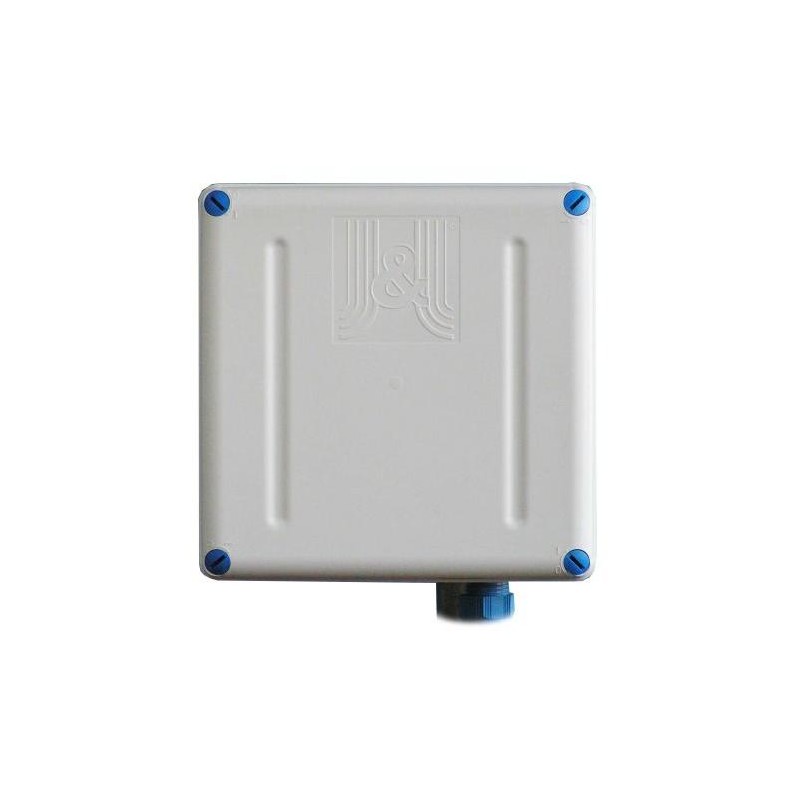

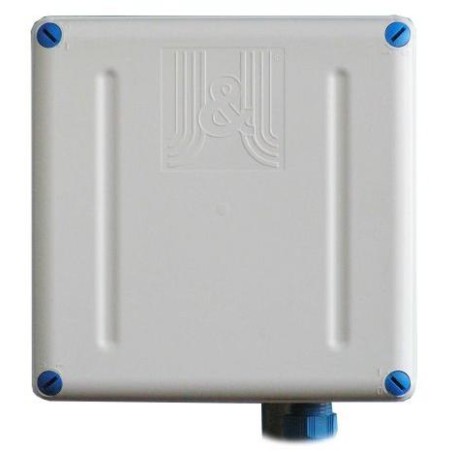

JRC JC-220 - dual antenna 17 dBi (MIMO2x2) with box, MMCX (5 GHz)

JRC GentleBOX JC-220MCX

This is an outdoor box with a dual 17dBi antenna terminated with two MMCX connectors . The antenna provides an optimal solution for clients in the 5 GHz frequency band at short distances.

The JC-220 includes an integrated dual-polarization 5GHz antenna with binomial amplitude distribution for optimal side lobe suppression. The GentleBOX has grooves and holes for easy mounting of RouterBOARDs RB411, RB433, RB800, or other electronics (ALIX, etc.) including screws and plastic posts.

Package contents:

•

• Captive bayonet "screws" for easy closing of the GentleBOX (4 pcs)

• Special pole holder ø 19–54 mm (1 pc.)

• Cable gland for cables with a diameter of 4–10 mm, can be inserted through RJ-45 (1 pc.)

• Short screws for simplified assembly RB411 (4 pcs)

• Screws for mounting electronics + plastic spacers (4 + 4 pcs)


BASIC SPECIFICATIONS

Frequency range: 5.1-5.9 GHz

Gain: 17 dBi

Beam angle: 17°/17°

Polarization: horizontal and vertical

VSWR: ≤ 1.9

Connector: MMCX

Dimensions (internal): 186 × 186 × 53 mm

Dimensions (external): 203 × 203 × 65 mm

Material: UV stabilized ABS plastic, polyamide

Color: white
