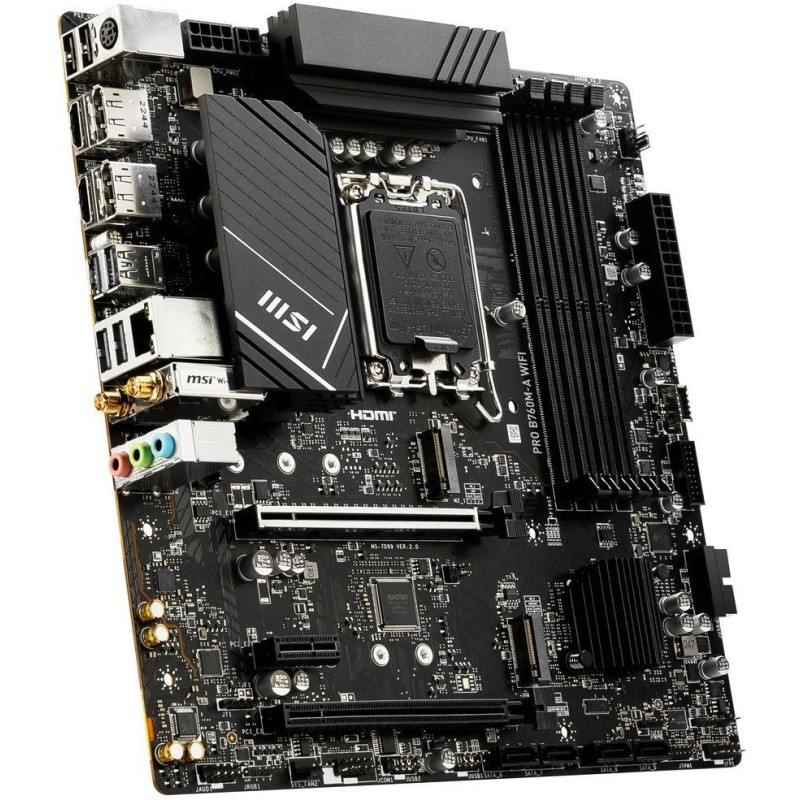

MSI PRO B760M-A WIFI
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)
Chipset
Intel B760
Memory
4× DDR5 memory slots, support up to 192 GB
Support DDR5 6800+ (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz
Dual-channel memory architecture
Support non-ECC, unbuffered memory
Intel Extreme Memory Profile 3.0 (XMP) support
Slots
Intel CPU
1× PCIe 4.0 x16 slot
Intel B760 chipset
1× PCIe 4.0 x16 slot (supports x4 mode)
1× PCIe 3.0 x1 slot
Graphic arts
2× HDMI port, supporting max. resolution 4K at 60 Hz
2× DisplayPort port, supporting max. resolution 4K at 60 Hz
Storage
Intel CPU
1× M.2 slot, M Key, for units of type 2280/2260/2242 (PCIe 4.0 x4 mode)
Intel B760 chipset
4× SATA 6Gb/s ports
1× M.2 slot, M Key, for 2280/2260/2242 type units (SATA and PCIe 4.0 x4 mode)
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives
USB
6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)
6× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 4 ports available via internal USB connectors)
2× USB 3.2 Gen2 Type A port on the back panel
1× USB-C 3.2 Gen1 (USB 3.0) port available via internal USB connector
Audio
Realtek ALC897 Codec
7.1 channel High Definition Audio
HIND
1× Realtek RTL8125BG 2.5Gigabit LAN controller
WLAN/Bluetooth
Intel Wi-Fi 6E
Wi-Fi 802.11a/b/g/n/ac/ax
Dual Band (2.4 GHz, 5 GHz, 6 GHz)
MU-MIMO TX/RX support
Data transfer speed up to 2.4 Gbps
Bluetooth 5.3
Internal connectors
1× 24pin ATX main power connector
2× 8pin 12V power connector
1× 4pin CPU fan connector
1× 4pin water cooling pump fan connector
2× 4-pin system fan connector
1× front panel audio connector
2x system panel connector
1× chassis opening detection connector
1× TPM connector (supports TPM 2.0)
1× serial port connector
1× 4-pin RGB LED connector
2× 3pin connector A-RAINBOW V2 ARGB LED
2x USB 2.0 connector (supports 4x USB 2.0 port)
2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1 ports)
1× USB-C 3.2 Gen1 (USB 3.0) connector
4× EZ Debug LEDs
Rear panel ports
1× PS/2
2× USB 2.0
2× DisplayPort
2× HDMI
1× RJ-45
2× USB 3.2 Gen2 (USB 3.1 Gen2) type A
2× USB 3.2 Gen1 (USB 3.0)
2× Wi-Fi antenna connector
3× audio jacks
Dimensions
24.4 × 24.4 cm
Micro ATX format
