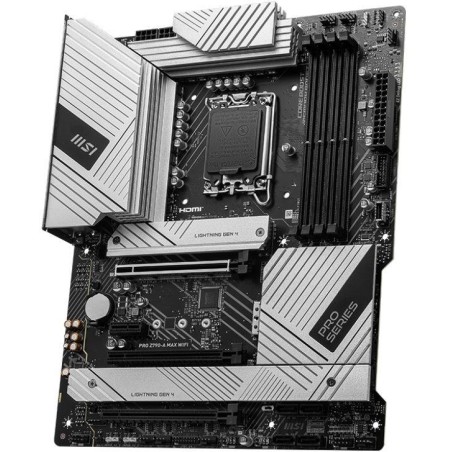

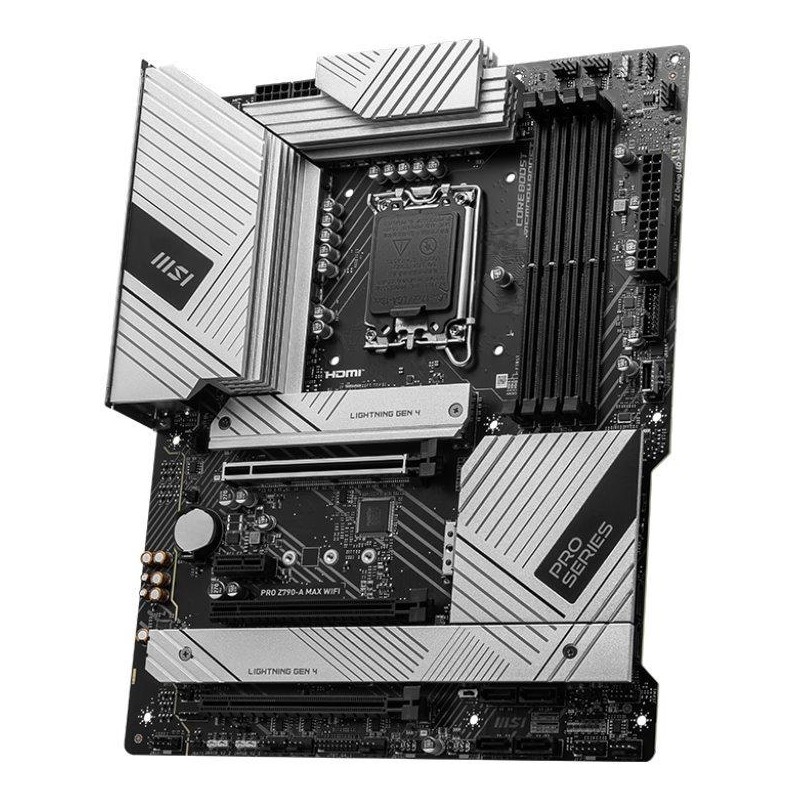

MSI PRO Z790-A MAX WIFI
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Supports 14th, 13th and 12th generation Intel Core/ Pentium Gold/ Celeron processors
LGA1700 socket
Chipset
Intel Z790
Memory
4× DDR5 memory slots, support up to 192 GB
Support DDR5 7800+ (OC)/ 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz
Dual-channel memory architecture
Support non-ECC, unbuffered memory
Intel Extreme Memory Profile (XMP) 3.0 OC support
Slots
Intel CPU
1× PCIe 5.0 x16 slot
Intel Z790 chipset
1× PCIe 4.0 x16 slot (supports x4 mode)
1× PCIe 3.0 x16 slot (supports x1 mode)
1× PCIe 3.0 x1 slot
Graphic arts
1× HDMI port, supporting max. resolution 4K at 60 Hz
1× DisplayPort port, supporting max. resolution 8K at 60 Hz
Storage
Intel CPU
1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)
Intel Z790 chipset
6× SATA 6Gb/s ports
1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)
2× M.2 slot, M key, for 2242/2260/2280 type units (SATA and PCIe 4.0 x4 mode)
RAID 0, RAID 1, RAID 5, and RAID 10 support for both SATA and M.2 NVMe drives
USB
6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)
4× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 2 ports available via internal USB connector)
3× USB 3.2 Gen2 Type A ports on the back panel
1× USB-C 3.2 Gen2 port available via internal USB connector
1× USB-C 3.2 Gen 2x2 on the back panel
Audio
Realtek ALC4080 Codec
7.1-channel USB High Performance Audio
S/PDIF output support
HIND
1× Intel 2.5Gigabit LAN controller
WLAN/Bluetooth
Intel Wi-Fi 7
Wi-Fi 802.11a/b/g/n/ac/ax/be
Triple Band (2.4 GHz, 5 GHz, 6 GHz)
MU-MIMO TX/RX support
Data transfer speed up to 5.8 Gbps
Bluetooth 5.4
Internal connectors
1× 24pin ATX main power connector
2× 8pin 12V power connector
1× 4pin CPU fan connector
1× 4pin water cooling pump fan connector
6× 4-pin system fan connector
2× front panel connector
1× chassis opening detection connector
1× front panel audio connector
1× TPM connector (supports TPM 2.0)
1× Tuning controller connector
1× USB4 expansion card connector (supports RTD3)
1× Clear CMOS jumper
3× 3pin connector V2 ARGB LED
1× 4-pin RGB LED connector
2x USB 2.0 connector (supports 4x USB 2.0 port)
1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)
1× USB-C 3.2 Gen2 connector
4× EZ Debug LEDs
Rear panel ports
1× DisplayPort
1× HDMI
1× Flash BIOS button
/> 2× USB 2.0
2× USB 3.2 Gen1 (USB 3.0)
3x USB 3.2 Gen2 (USB 3.1 Gen2)
1× USB-C 3.2 Gen2x2 (USB 3.2)
1× RJ-45
2× Wi-Fi antenna connector
5× audio jacks
1× optical S/PDIF output
Dimensions
30.5 × 24.4 cm
ATX format
