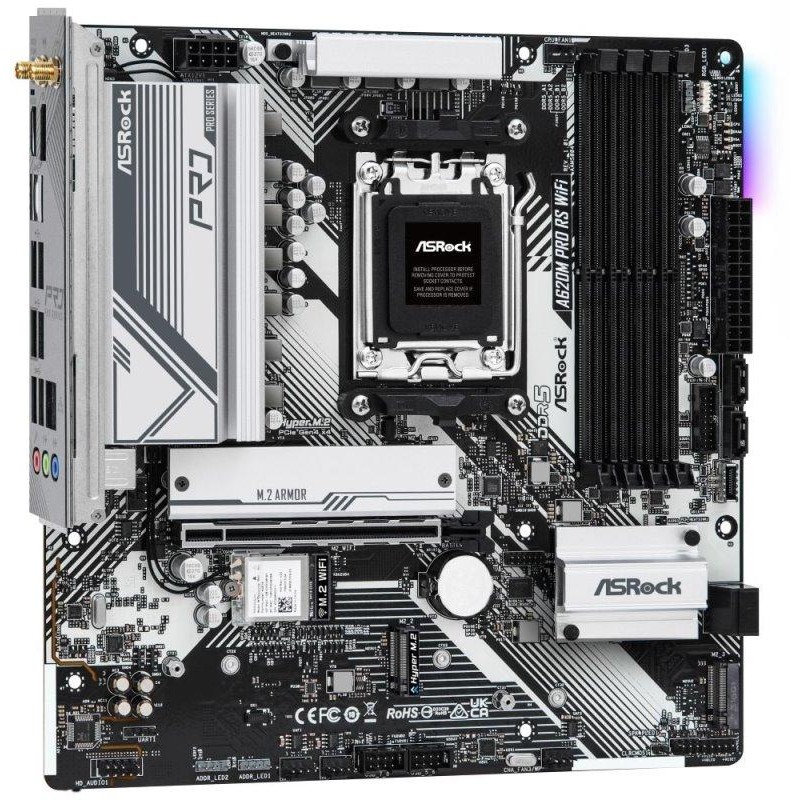

ASRock A620M Pro RS WiFi
The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.
CPU
Support for AMD Ryzen 7000 series processors (Socket AM5)
Chipset
AMD A620
Memory
4× DDR5 memory slots, support up to 192 GB
DDR5 support up to 6000+ (OC) MHz
Dual-channel memory architecture
Support non-ECC, unbuffered memory
Support for AMD EXtended Profiles for Overclocking (EXPO)
Extreme Memory Profile (XMP) support
Slots
AMD CPU
1× PCIe 4.0 x16 slot
Graphic arts
1× HDMI 2.1 port, supporting max. resolution 4K at 120 Hz
1× DisplayPort 1.4 port, supporting max. resolution 4K at 120 Hz
Storage
AMD CPU
2× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
AMD A620 chipset
1× M.2 slot, M Key, for 2260/2280 type units (PCIe 3.0 x2 mode)
4× SATA 6Gb/s ports
RAID 0, RAID 1, and RAID 10 support for SATA and M.2 NVMe drives
USB
2× USB-C 3.2 Gen1 (USB 3.0) ports (1 port on the back panel, 1 port available via internal USB connector)
5× USB 3.2 Gen1 (USB 3.0) ports (3 ports on the back panel, 2 ports available via internal USB connector)
8× USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)
Audio
Realtek ALC897 Codec
7.1 channel High Definition Audio
Nahimic Audio
HIND
1× Realtek 8111H Gigabit LAN controller
WLAN/Bluetooth
Wi-Fi 6E module
Wi-Fi 802.11a/b/g/n/ac/ax
Dual Band 2x2 (2.4 GHz, 5 GHz) + 6 GHz
MU-MIMO support
Bluetooth 5.2
Internal connectors
1× SPI TPM connector
1× speaker connector and Power LED
1× RGB LED strip connector
3× addressable LED strip connector
1× 4pin CPU fan connector
1× 4pin CPU fan/water cooling fan connector
3× 4-pin chassis fan/water cooling fan connector
1× 24pin ATX main power connector
1× 8pin 12V power connector
1× front panel audio connector
2x USB 2.0 connector (supports 4x USB 2.0 port)
1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)
1× USB-C 3.2 Gen1 (USB 3.0) front panel connector
4× SATA 6Gb/s connector
2× Hyper M.2 slot, M Key
1× M.2 slot, M Key
Rear panel ports
2× Wi-Fi antenna connector
1× HDMI
1× DisplayPort
1× USB-C 3.2 Gen1 (USB 3.0)
3× USB 3.2 Gen1 (USB 3.0)
4× USB 2.0
1× RJ-45
1× BIOS Flashback button
3× audio jacks
Dimensions
24.4 × 24.4 cm
Micro ATX format
